Description
| Model | PCD-16-1050A |
| Input Voltage | 100-120V AC |
| Input Current | 0.40A |
| Frequency | 50/60Hz |
| Output Voltage | 12-16V DC |
| Output Power | 16W |
| Output Regulated Current: | 1050mA |
| Dimmable | Yes |
| IP Rating | IP30 (Indoor Rated) |

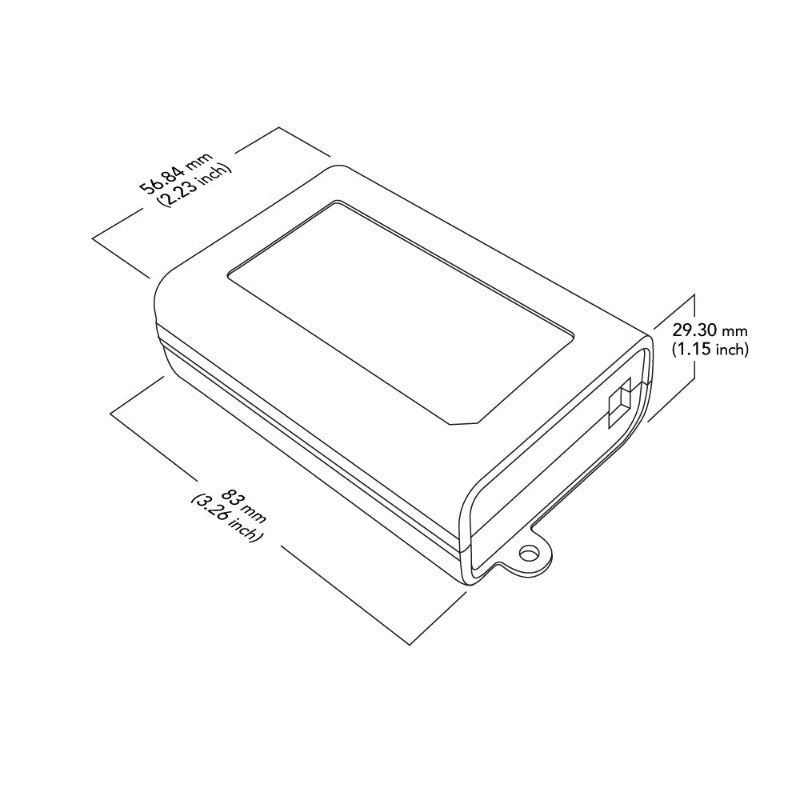

| Dimensions | 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in) |
| Class Certification | Class 2/ Class II |
| Certification |

|
| Applicable for dry and damp locations |
| Short circuit and over-temperature protection |
Features:

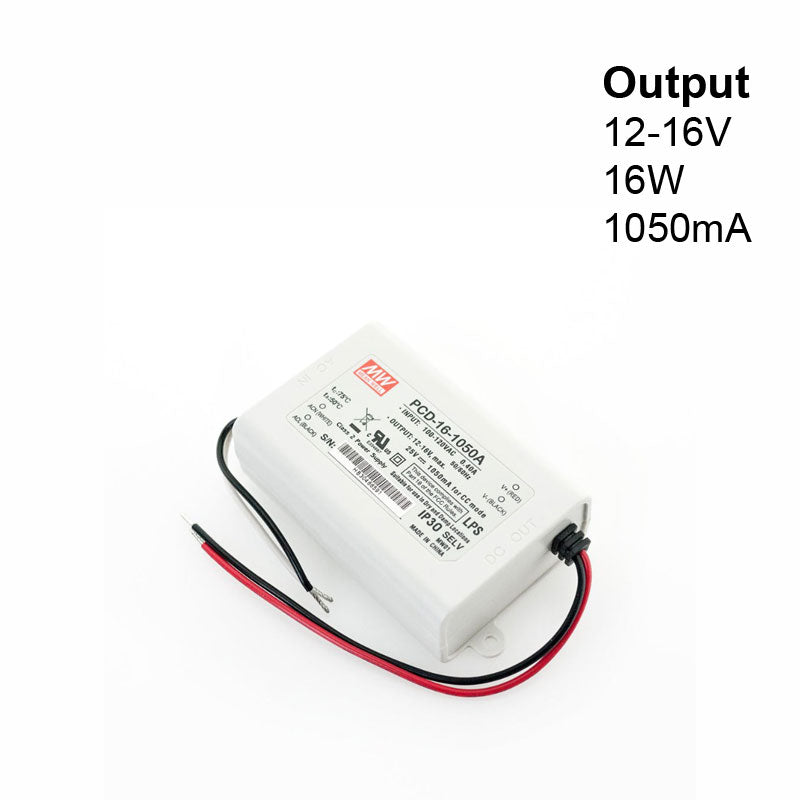

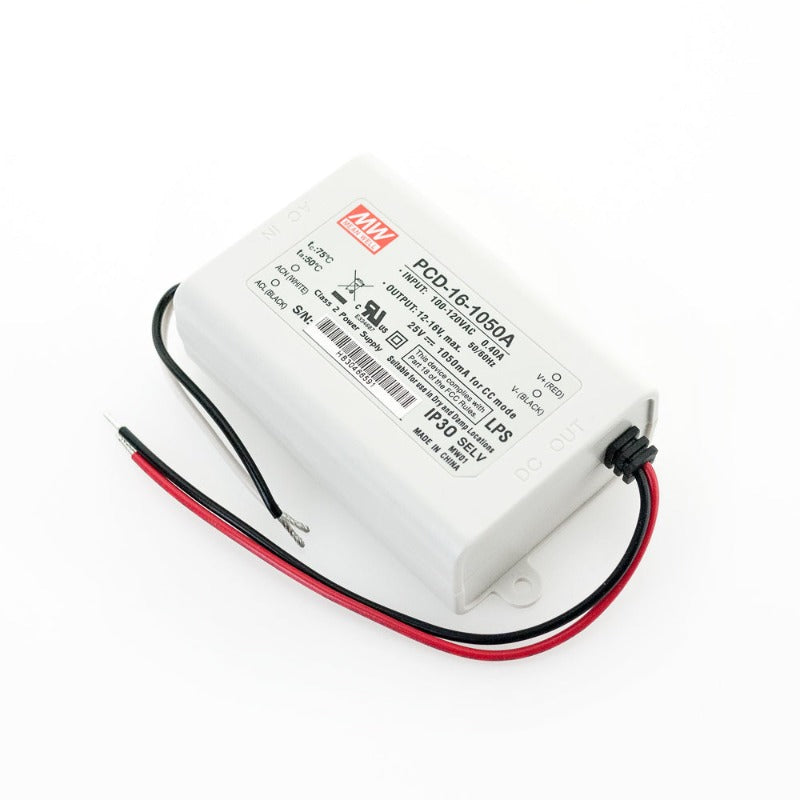

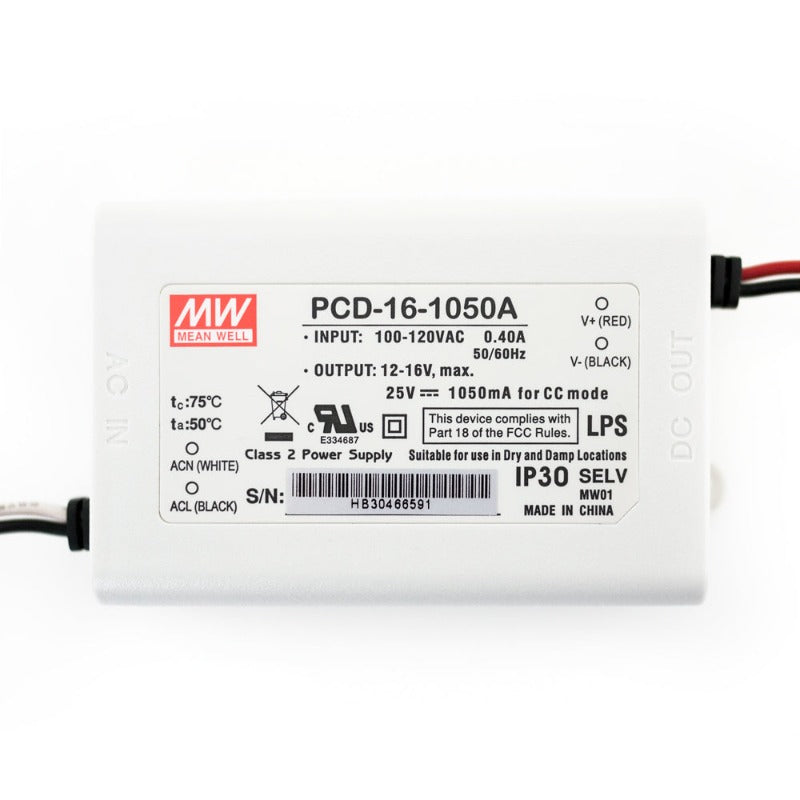

- Mean Well PCD-16-1050A Constant Current LED Driver
- Input voltage range: 100-120V AC, input current: 0.40A, frequency: 50/60Hz
- Output voltage range: 12-16V DC, regulated current: 1050mA, output power: 16W
- Dimmable for adjustable brightness of LED lights
- IP30 rating, suitable for indoor use and protected against dust
- Compact size: 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
- Easy installation and integration into lighting systems
- Class 2/Class II certified for safe and reliable operation in lighting applications
- Provides regulated power supply to LED lights for consistent performance.
