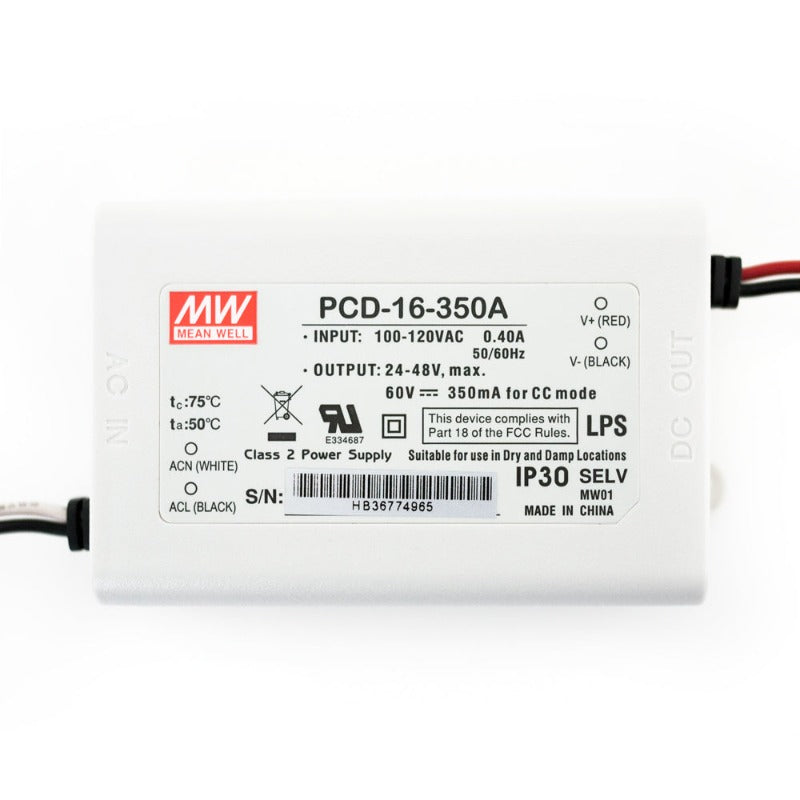

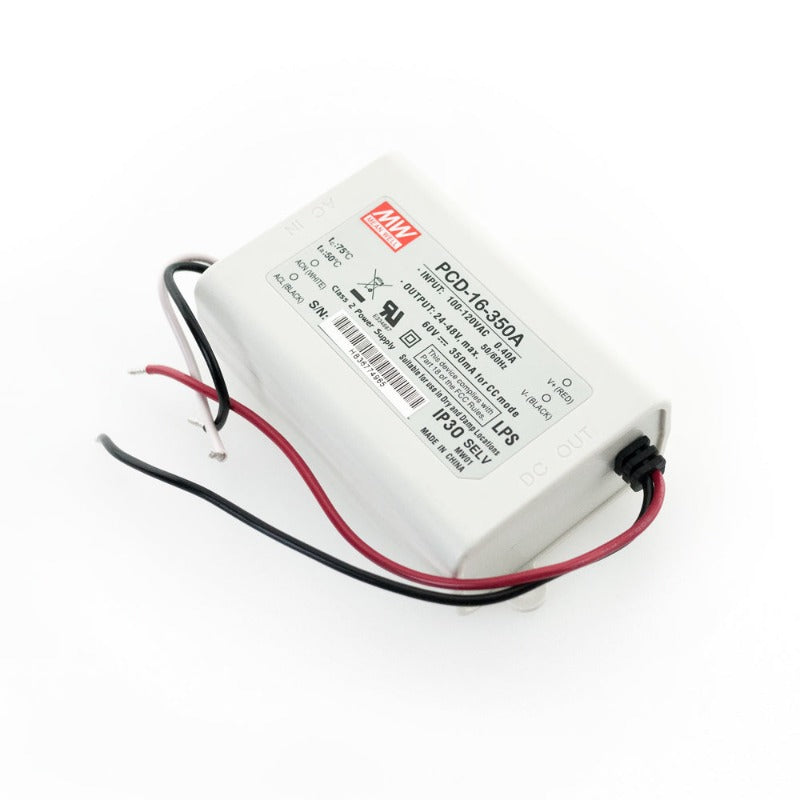

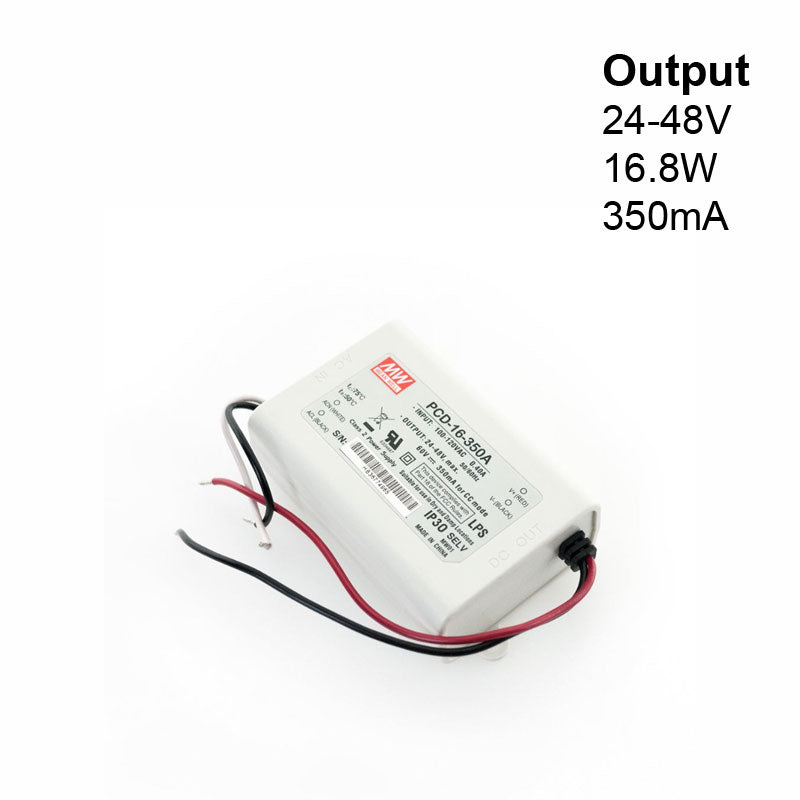

Mean Well PCD-16-350A Constant Current LED Driver, 350mA 24-48V 16W

SKU: 666561414962



Model PCD-16-350A
Input Voltage 100-120V AC
Input Current 0.40A
Frequency 50/60Hz
Output Voltage Max 24-48V DC
Output regulated current 350mA
Output Power 16.8W
Dimmable Yes
IP Rating IP30

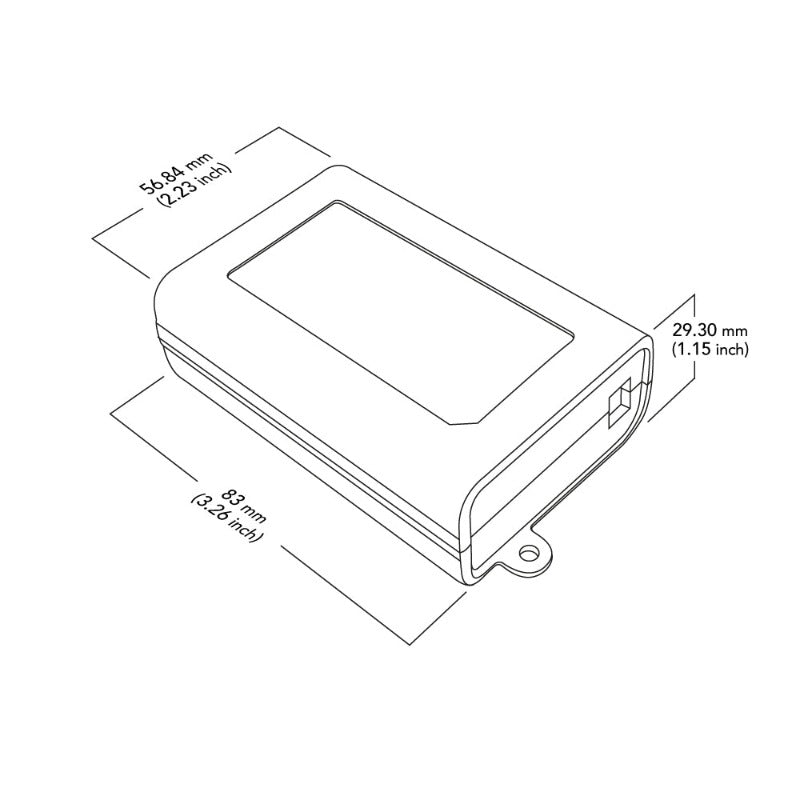

Dimensions 83 x 56.84 x 30mm (3.26 x 2,23 x 1,415 in)
Class Certification Class 2/ Class II
Applicable for dry and damp locations
Short Circuit and temperature protection



  • Mean Well PCD-16-350A Constant Current LED Driver
  • Regulated current output: 350mA, maximum output power: 16.8W
  • Input voltage range: 100-120V AC, input current: 0.40A, frequency: 50/60Hz
  • Output voltage range: 24-48V DC, suitable for driving LED lights
  • Dimmable for easy control of LED light levels
  • IP30 rating, protected against dust and accidental contact (not suitable for wet or outdoor environments)
  • Compact dimensions: 83 x 56.84 x 30mm (3.26 x 2.23 x 1.415 in)
  • Easy installation in various lighting applications
  • Class 2/Class II certified for double insulation and high safety level
  • Suitable for indoor lighting, signage, and architectural lighting applications
