Description
| Model | PCD-25-1400A |
| Input Voltage | 100-120V AC |
| Input Current | 0.60A |
| Frequency | 50/60Hz |
| Output Voltage | 12-18V DC |
| Output Regulated Current: | 1400mA |
| Output Wattage | 25W |
| Dimmable | Yes |
| IP Rating | IP30 |

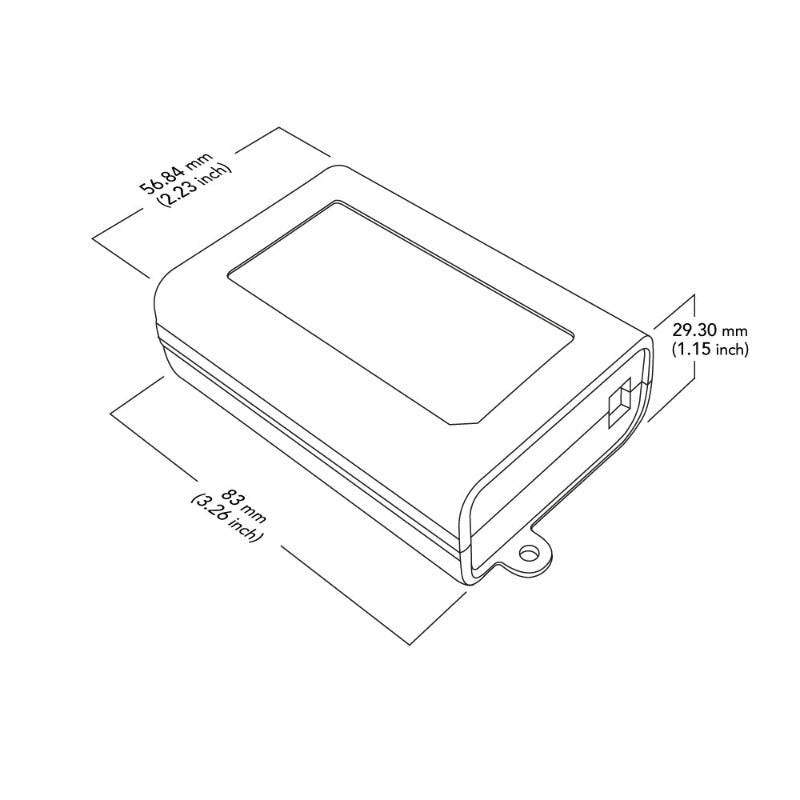

| Dimensions | 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in) |
| Class Certification | Class 2/ Class II |
| Certification |

|
| Applicable for dry and damp locations |
Features:

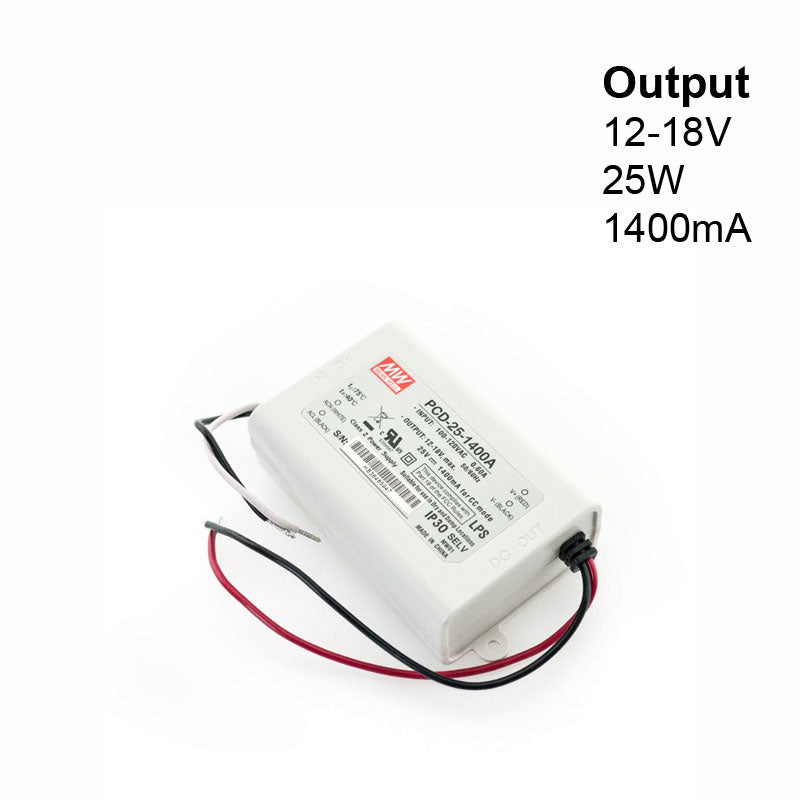

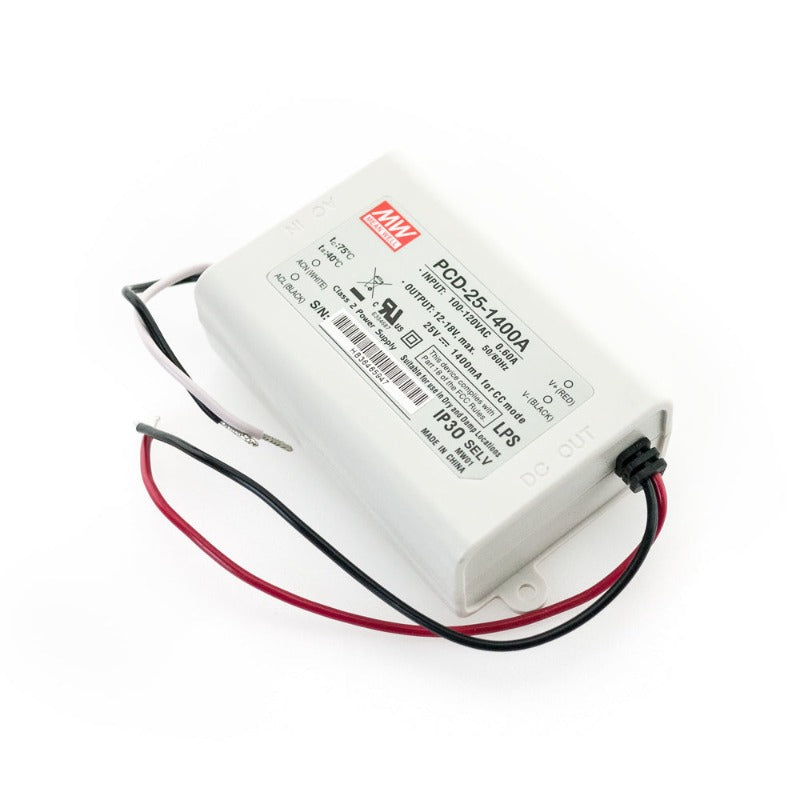

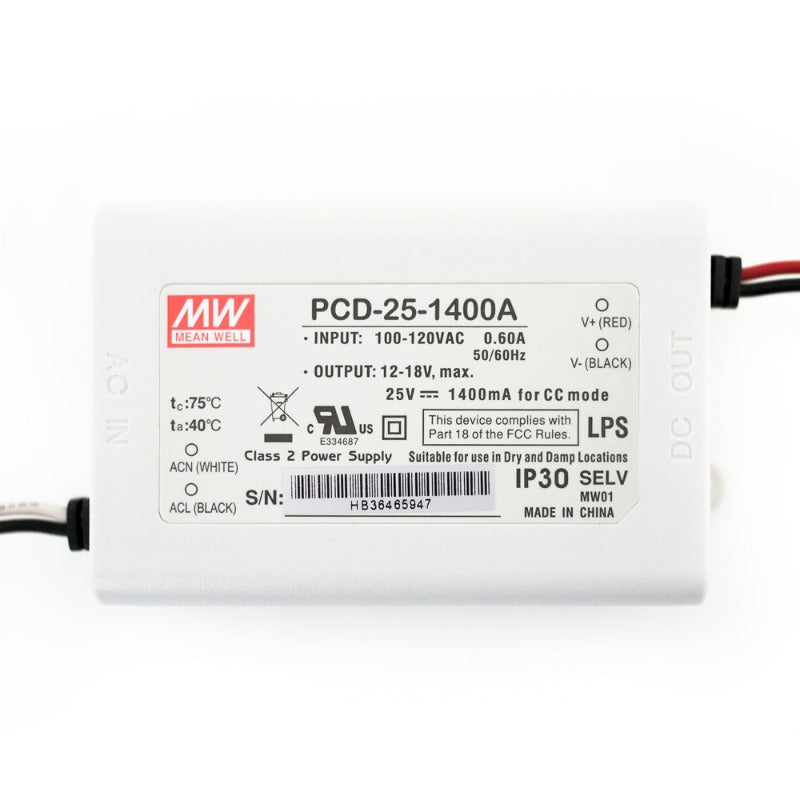

- Mean Well PCD-25-1400A Constant Current LED Driver
- Regulates power supply for LED lights
- Input voltage range: 100-120V AC, input current: 0.60A, frequency: 50/60Hz
- Output voltage range: 12-18V DC, regulated current: 1400mA, output power: 25W
- Dimmable for adjustable brightness
- IP30 rating for indoor use, protected against dust
- Compact size: 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
- Class 2/Class II certified for safety
- Suitable for a wide range of lighting applications.
