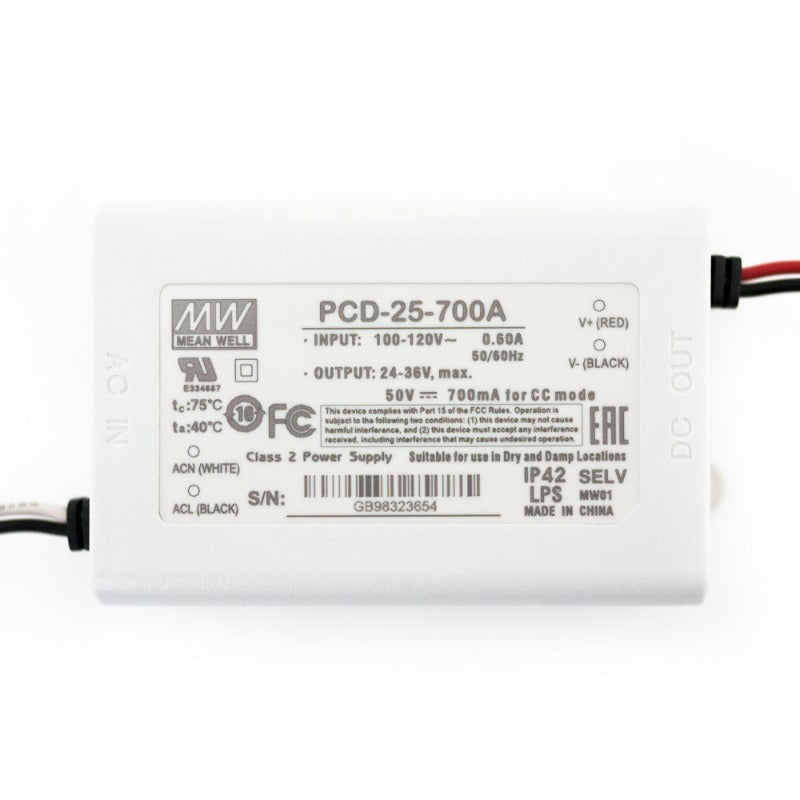

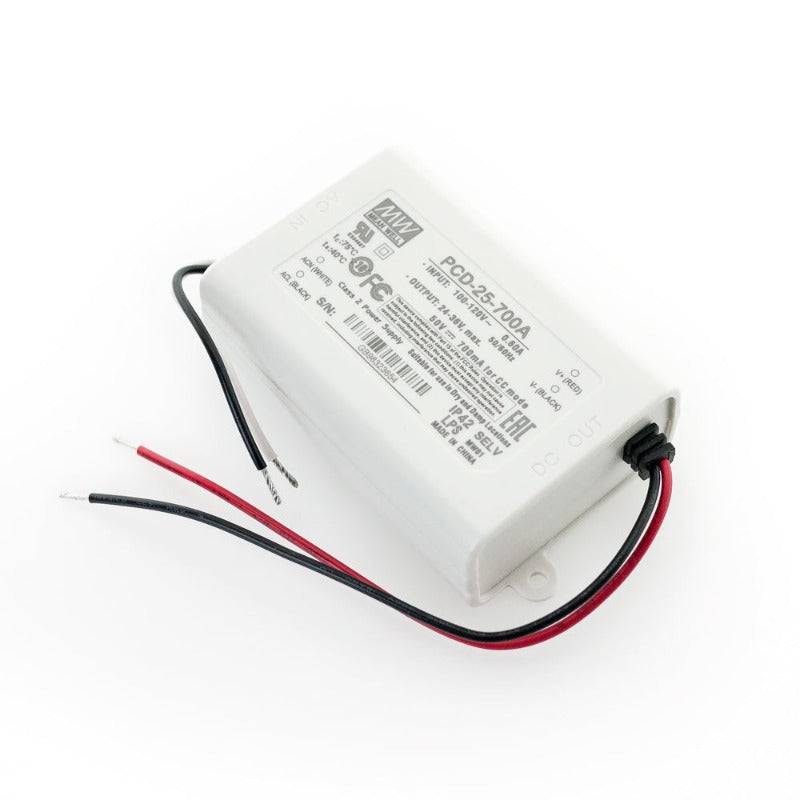

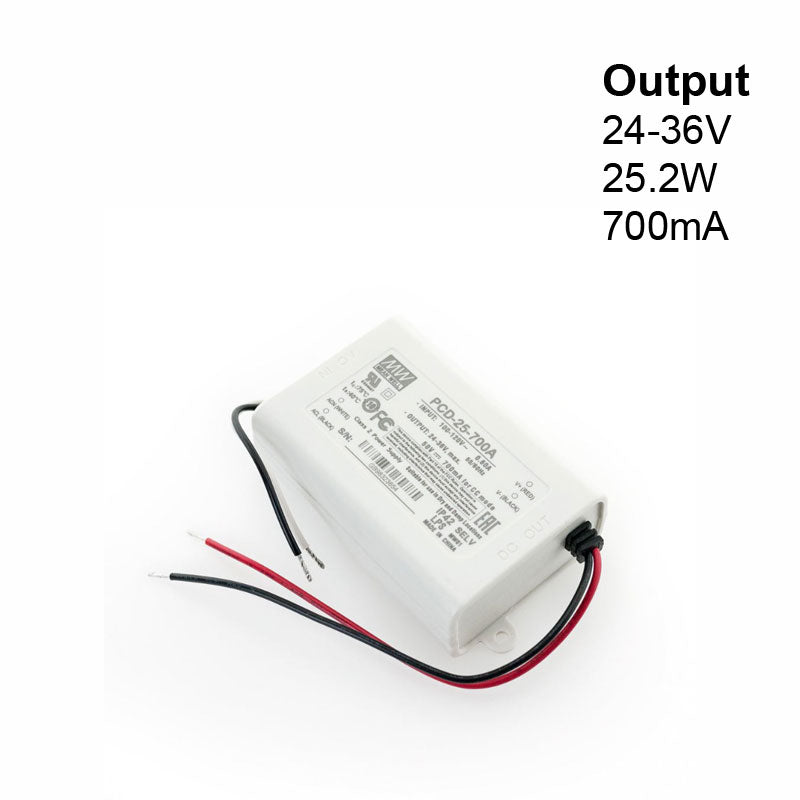

Mean Well PCD-25-700A Constant Current LED Driver, 700mA 24-36V 25W

SKU: 666561414931

Inquiry

Description


Model PCD-25-700A
Input Voltage 100-120V AC
Input Current 0.60A
Frequency 50/60Hz
Output Voltage 24-36V DC
Output Regulated Current: 700mA
Output Power 25.2W
Dimmable Yes
IP Rating IP42

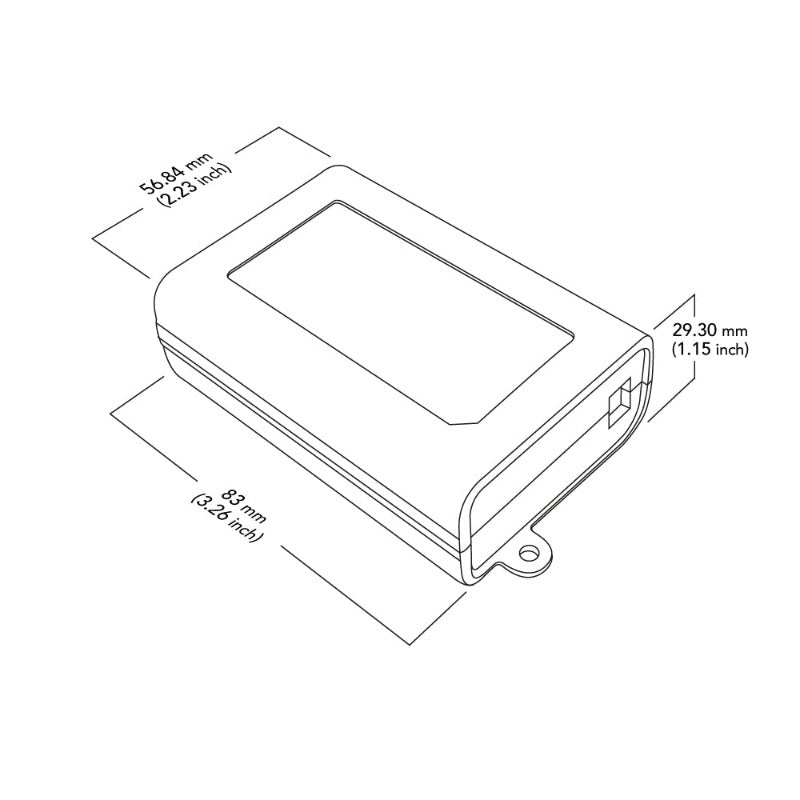

Dimensions 83 x 56.84 x 29.30mm (3.26 x 2.23 x1.15 in)
Class Certification Class 2/ Class II
Certification

Applicable for dry and damp locations
Short circuit and Over-Temperature protection



Features:

  • Mean Well PCD-25-700A Constant Current LED Driver
  • Regulated power supply for LED lights
  • Input voltage range: 100-120V AC, input current: 0.60A, frequency: 50/60Hz
  • Output voltage range: 24-36V DC, regulated current: 700mA, output power: 25.2W
  • Dimmable for adjustable brightness
  • IP42 rating for indoor use, protected against dust and water splashes
  • Compact size: 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in)
  • Class 2/Class II certified for safety
  • Suitable for a wide range of lighting applications.
