PCK 02-005-930-120-C1 YUNLT LED Module, 120V 5W 3000K(Warm White)

SKU: 666561433819



Model No PCK 02-005-930-120-C1
Wattage 5W
Voltage 120V AC
Luminous Intensity 400 lumens
Color Temperature 3000K (Warm White)
Dimmable Yes
Rendering Index CRI>90
IP Rating IP20 (Indoor rated)
COB Holder Dimensions ∅47 x H5.5 mm (1.8 x 0.2 in)
COB Module Outer Diameter ∅8mm (0.3 in)

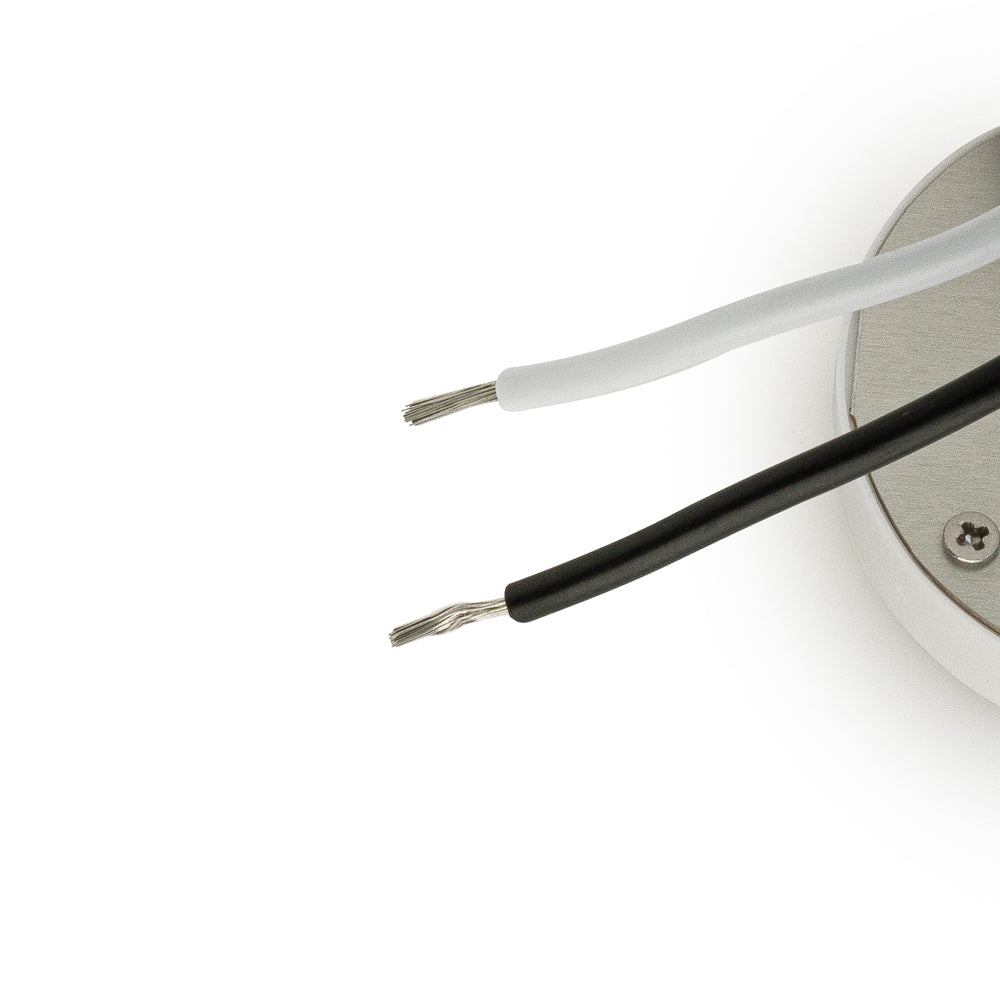

Wire Size 30cm (11.8in)
Operating Temperature -60 ~ +105℃
Storage Temperature -60 ~ +105℃
Assembly process Temperature <300℃
Solder joint point <105℃
Dielectric Breakdown Voltage of Thermal Pad >4KV
Included Content COB Module, COB Holder, Thermal Pad


  • Operates on 120V DC with a power consumption of 5W
  • Produces warm white light with color temperature of 3000K and CRI>90
  • Dimmable and suitable for use in damp locations (IP20 rating)
  • Requires aluminum heat sink to prevent overheating and luminous decay
  • More energy-efficient and produces brighter and higher quality beam output than older LED technologies
  • Suitable for use in almost every kind of luminaire
  • Grounding light fixtures is essential for safe and efficient operation
  • Silicone grease thermal pad provides heat sink and better heat dissipation
  • Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
