Description
| Model No | PCK 03-012-930-120-S1 |
| Wattage | 12W |
| Voltage | 120V AC |
| Luminous Intensity | 1000 lumens |
| Color Temperature | 3000K (Warm White) |
| Dimmable | Yes |
| Rendering Index | CRI>90 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅50 x H12 mm (1.9 x 0.4 in) |
| COB Module Outer Diameter | ∅30mm (1.1 in) |

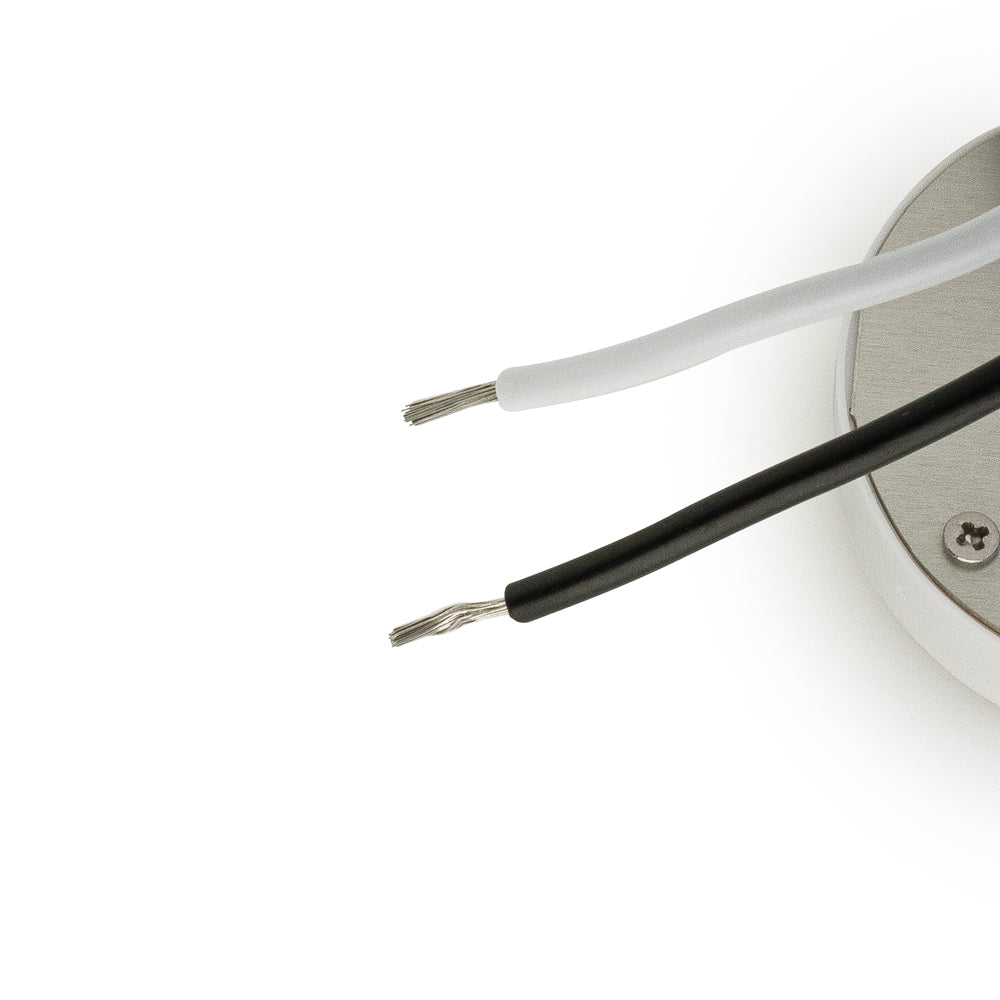

| Wire Size | 30cm (11.8in) 18AWG |
| Operating Temperature | -60 ~ +105℃ |
| Storage Temperature | -60 ~ +105℃ |
| Assembly process Temperature | <300℃ |
| Solder joint point | <105℃ |
| Dielectric Breakdown Voltage of Thermal Pad | >4KV |
| Included Content | COB Module, COB Holder, Thermal Pad |
| Certifications |  |
Features:
- Operates on 120V DC with a power consumption of 12W
- Produces warm white light with color temperature of 3000K and CRI>90
- Dimmable and suitable for use in damp locations (IP20 rating)
- Requires aluminum heat sink to prevent overheating and luminous decay
- More energy-efficient and produces brighter and higher quality beam output than older LED technologies
- Suitable for use in almost every kind of luminaire
- Grounding light fixtures is essential for safe and efficient operation
- Silicone grease thermal pad provides heat sink and better heat dissipation
- Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
