Description
| Voltage | 12~24V DC |
| Power | 8A per Channel, 24A Max |
| Usage | 3 Colors (RGB mainly) |
| No. of Channels | 3 |
| Working Temp. | -20~60°C |

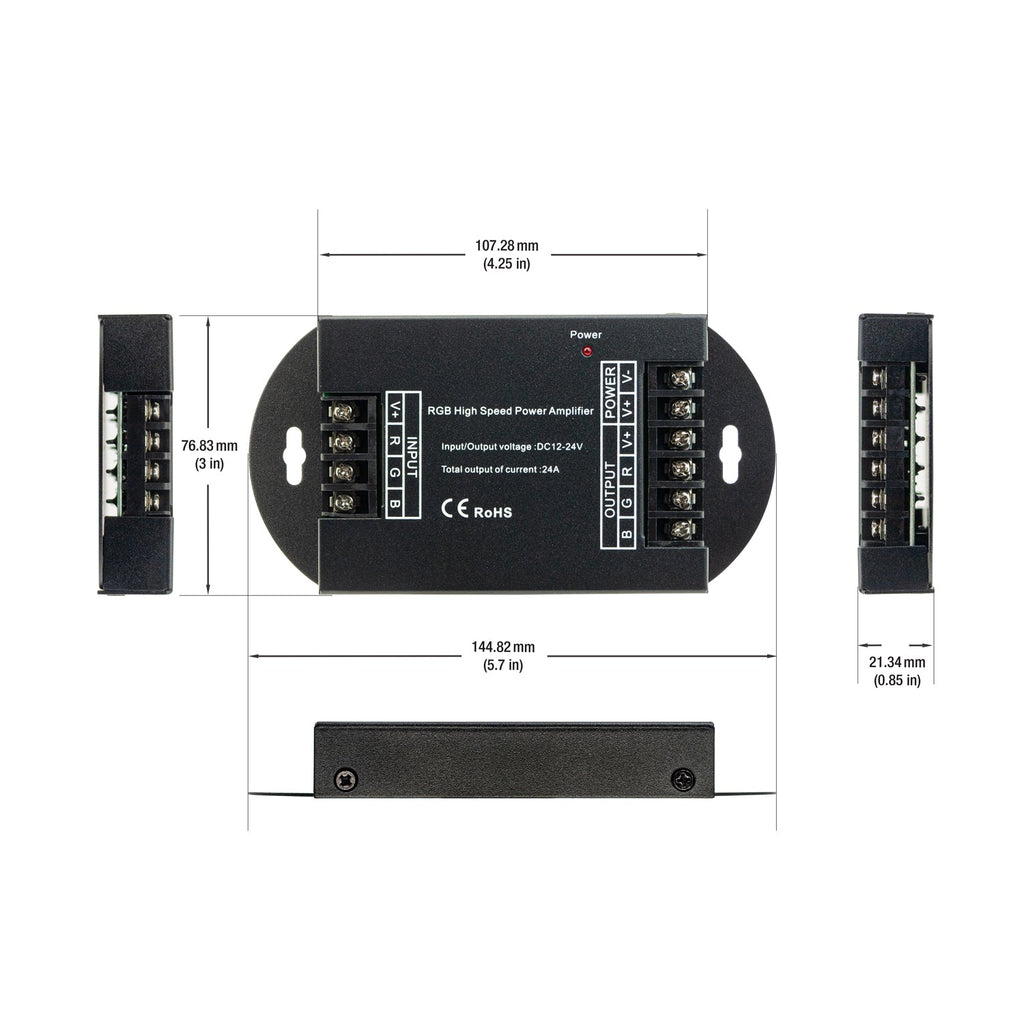

| Dimensions | 144.8 x 76.8 x 21.34mm (4.2 x 3 x 0.85in) |
| Certification |

|
Feature:
- The amplifier has the red, green, and blue three-group signal of the 3 channel controller. That helps in improving the system with load capacity.
- Useful device when there are multiple power supplies or when the capacity of an RGBW controller has exceeded,
- This high-Speed Amplifier helps in connecting longer lengths of the led strip without worrying about voltage drop.
- Different controllers can work with a single amplifier
- RGB high-speed amp is needed for color-changing RGB lights with high load capacity.
- High speed large current power amplifier is suitable for PWM controller
- It is convenient for different voltage, high power, and small power RGB LED lamps and lanterns using a single controller
- This amplifier is not just limited to our RGB products but can also be used to general RGB lighting as long as it is PWM control, voltage appropriate.
