Description
Product Description
| Product | Constant Current LED Driver with Selectable Current |
| Model | PUP10T-1LMC-350 |
| Input Voltage | 120VAC |
| Input Current | 0.13Amax@120VAC |

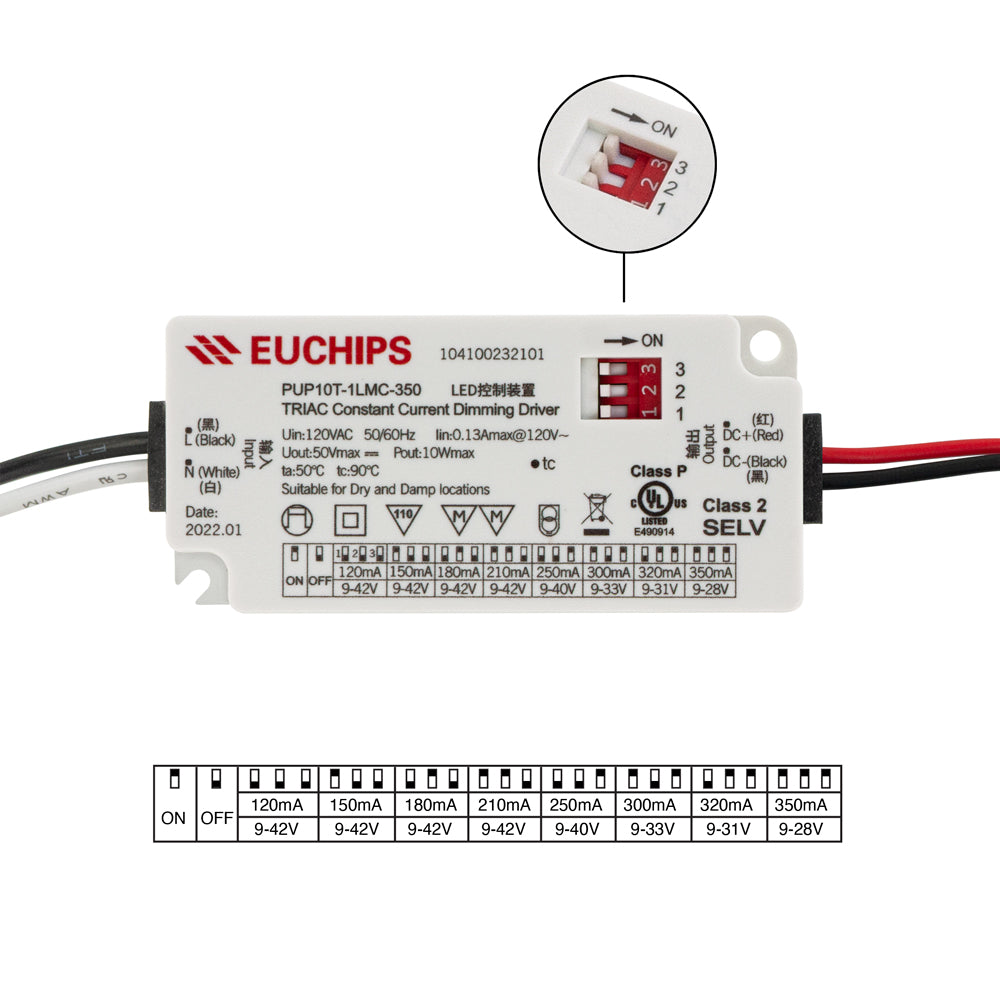

| Output Current/Voltage/Power | 120mA/9-42V/5.04W 150mA/9-42V/6.3W 180mA/9-42V/7.56W 210mA/9-42V/6.3W 250mA/9-40V/10W 300mA/9-33V/9.99W 320mA/9-31V/9.92W 350mA/9-28V/9.8W |
| No-load Output Voltage | 50V Max |
| Input Frequency | 50/60Hz |
| Dimming Type | Triac |
| Dimming Range | 3%-100% |
| IP Rating | IP20 (Dry and Damp Locations) |
| Efficiency |
70%@120VAC, Full load |
| Working Temperature | -20℃~50℃ |
| Weight | 0.2 kg |
| Lifetime | 50,000h @ Tc:90℃ |

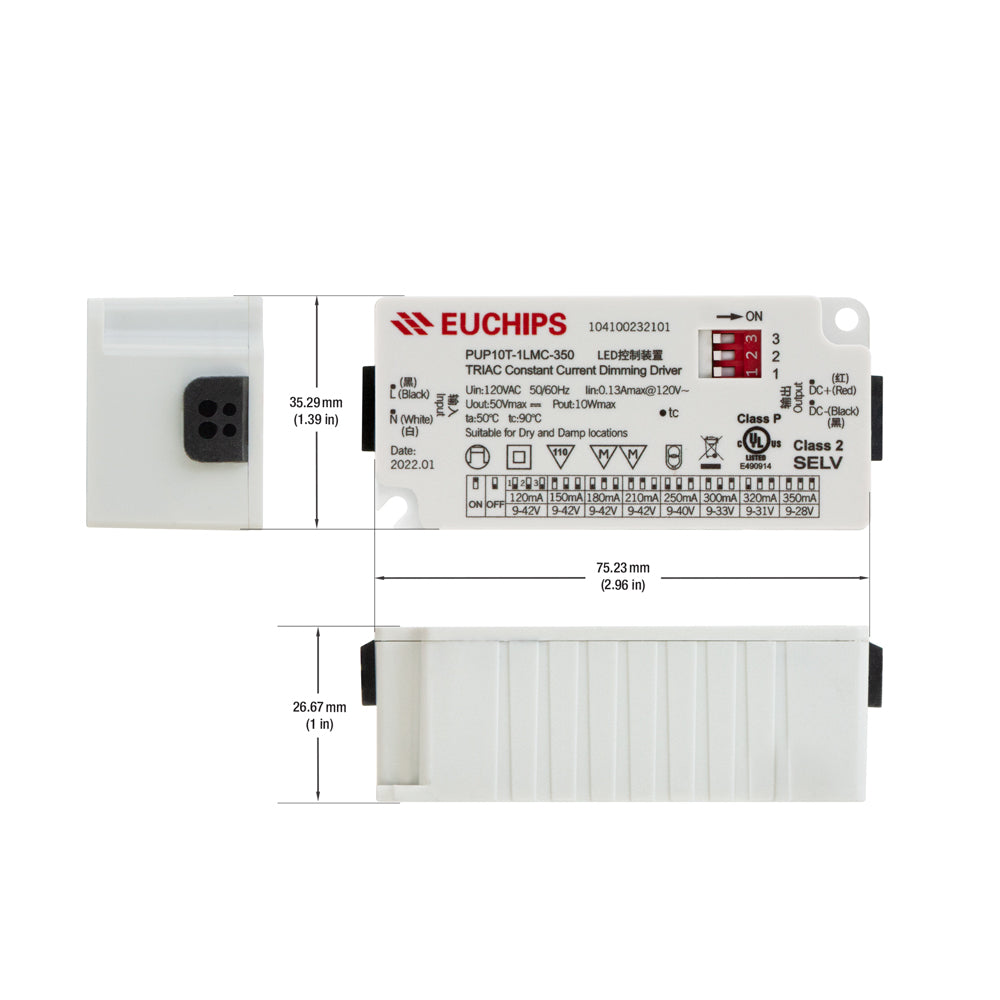

| Dimensions | 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in) |
| Certifications |   |
Features:
- The PUP10T-1LMC-350 is a selectable constant current LED driver
- Operates on an input voltage of 120VAC
- Input current of 0.13A maximum
- Provides a constant current output ranging from 120 to 350mA
- Maximum power output of 10W
- Designed with Triac dimming technology
- Smooth dimming from 3% to 100%
- Rated for use in dry and damp locations with an IP20 rating
- Efficiency greater than 70% at full load
- Selectable Constant Current LED Driver Triac Dim 50V 10W max 120 to 350mA, PUP10T-1LMC-350
