|Output Current||4A Max|
|Load around||48W for 12V, 96W for 24V

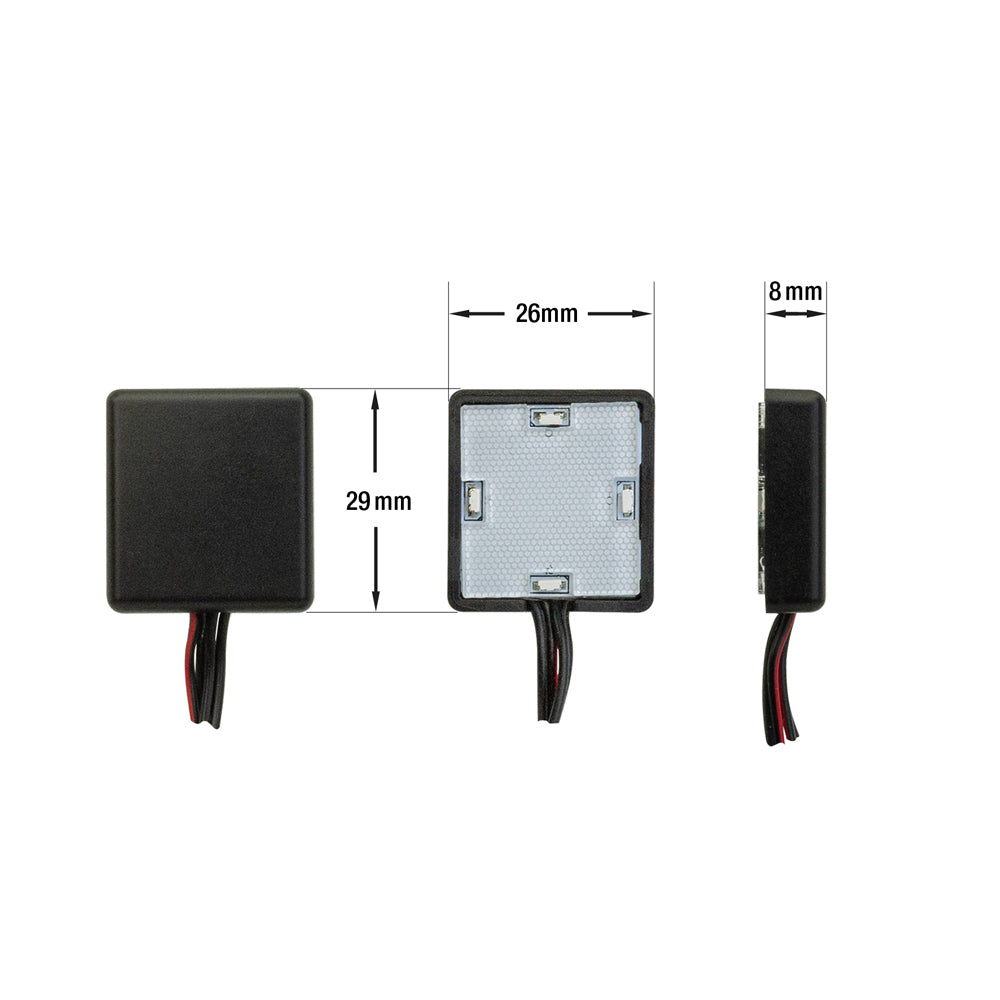

|Dimensions||28.5 x 26.4 x 8.5mm(1.1 x 1.03 x 0.3in)|

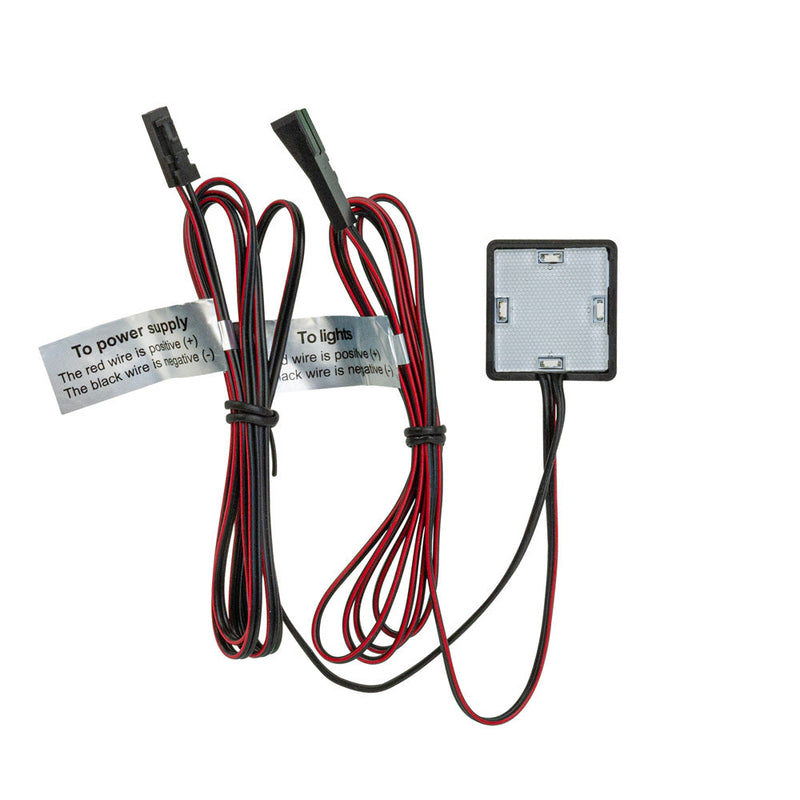

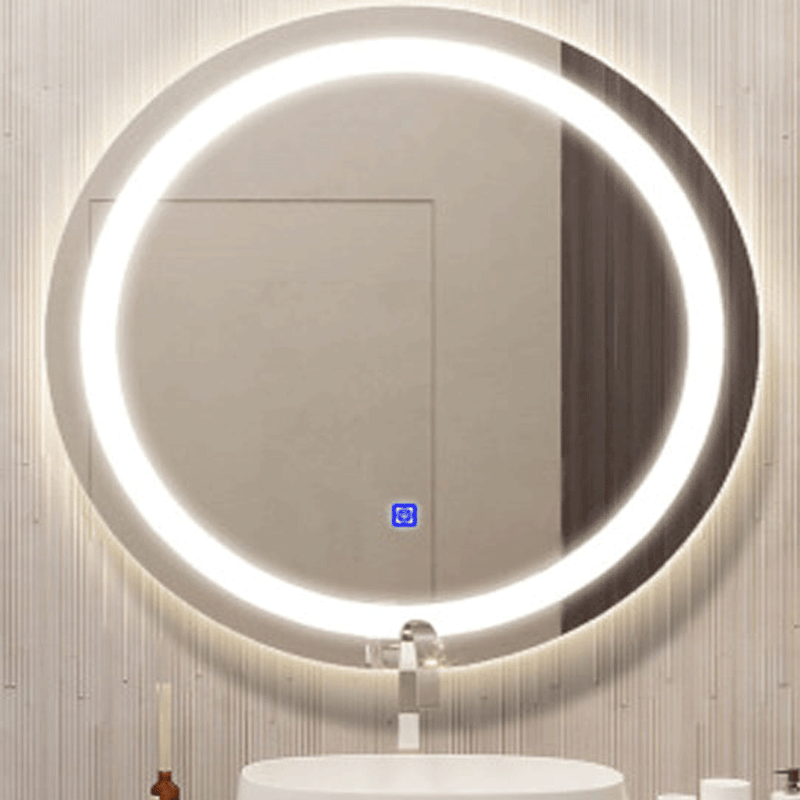

- Mirror touch switch ON/OFF + dimming + memory function
- Originally "off" when the power is connected.
- Quick touch (time is less than 550ms) can turn ON/OFF the light. One touch to turn on, touch again to turn off. The lamp is 90% bright when it is on.
- Hold on touching (time is above 550ms) can adjust the brightness endlessly. It will reduce the brightness endlessly to the minimum in 3 seconds holding on when the light is on. it will increase the brightness endlessly to 100% in 3 seconds holding on when the light is off.
- Quick touch and hold on touching can be chosen anytime without any collision.
- This sensor will memorize the status of the dimming in DC 12V-24V.
