2 inch Round Disc LED Module TR05016-COB, 120V 16W 5CCT(2.7K, 3K, 3.5K, 4K, 5K)

SKU: 666561433604




Model No TR05016-COB
Wattage 16W
Voltage 120V AC
Luminous Flux 1300 lumens @5000K
Color Temperature Selectable 5CCT
2700K (Soft White)
3000K (Warm White)
3500K (Mid-Warm White)
4000K (Natural White)
5000K (Daylight)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum (Metallic Base)

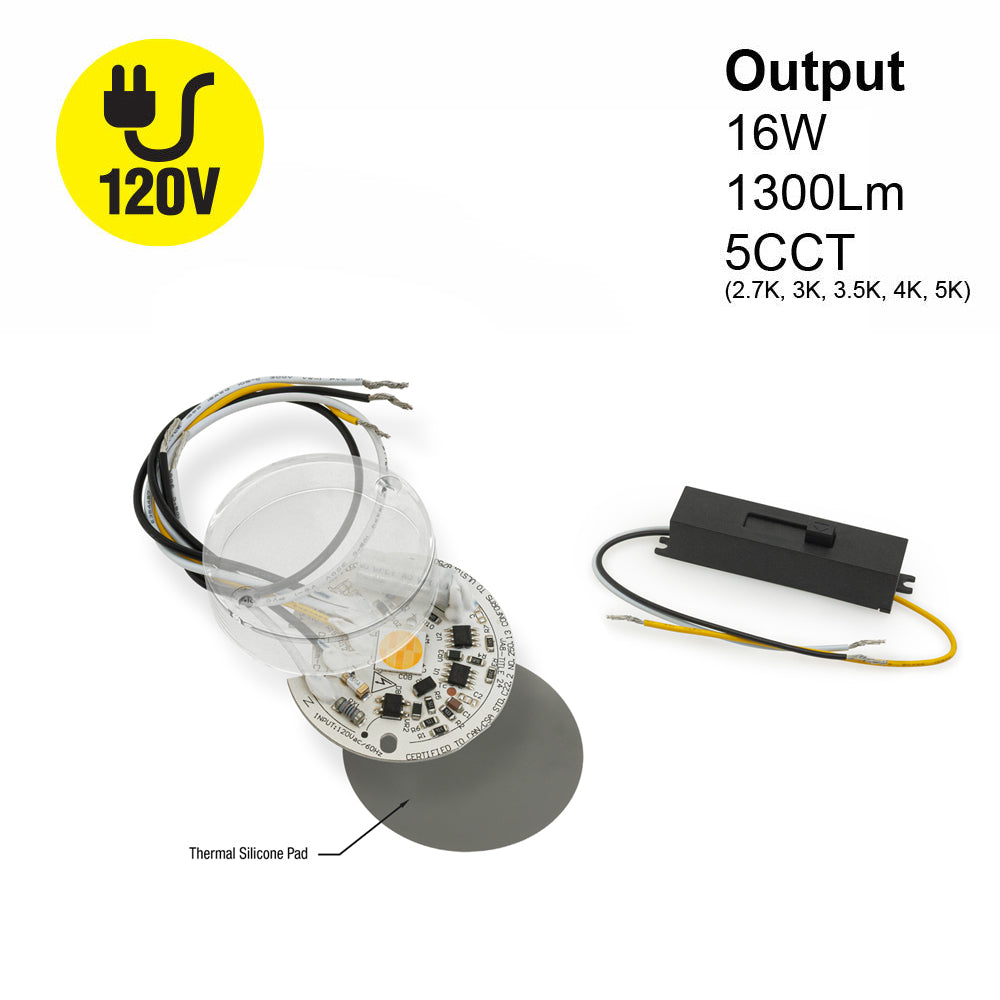

Package Components  LED Module
Thermal Silicon Pad
10 inch Black and White power feed

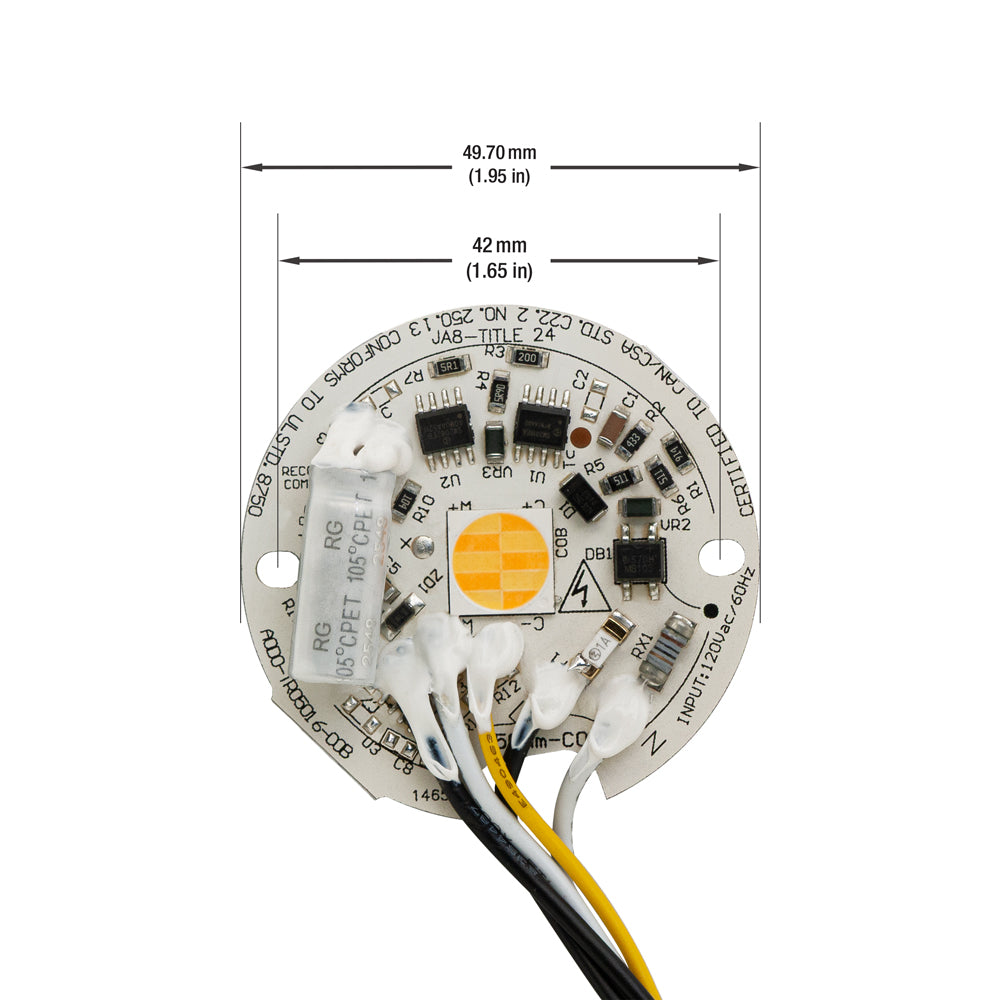

Outer Diameter
∅49.7mm (1.9 in)
Distance between Screw holes ∅42mm (1.6 in)
Height 15.3mm (0.6 in)


Note: To select the desired color temperatures, quickly turn the light off and on. To retain the selected color temperatures, ensure you turn the light on again at least 5 to 10 seconds later.


  • High-quality COB LED that produce 1300@5000K lumens of warm white light with a 5CCT(2.7K, 3K, 3.5K, 4K, 5K)
  • Power consumption of 16W and high energy efficiency that saves on energy costs
  • Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
  • Includes a thermal silicon pad and a 10-inch black and white power feed for added convenience
  • etl certified, ensuring that it meets high safety and quality standards
  • High rendering index of CRI>90, making colors appear more vibrant and true-to-life
  • Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
