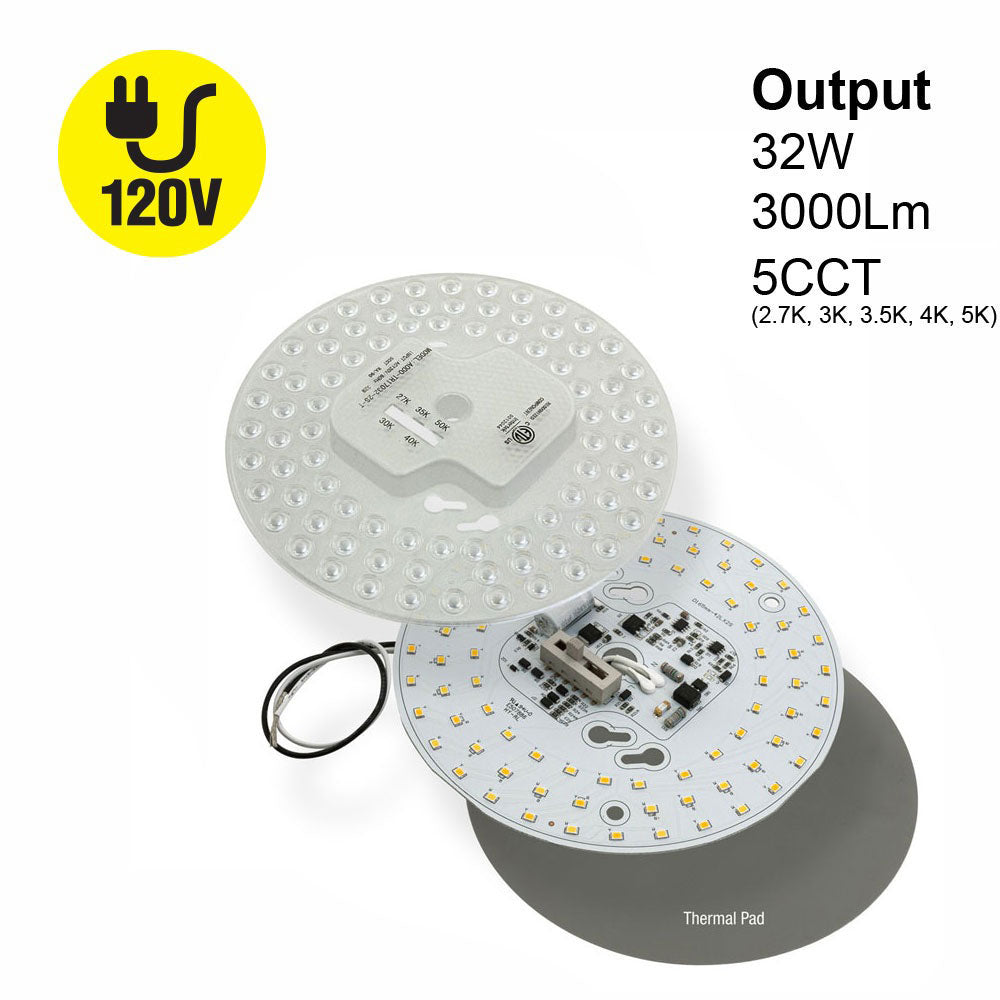

6.6 inch Round Disc LED Module TR17032-2S-T, 120V 32W 3000K(Warm White)

SKU: 666561433529



Product LED Module
Model No TR17032-2S-T
No of LEDs 84
Wattage 32W
Voltage 120V AC
Luminous Flux 3000 lumens
Color Temperature 3000K (Warm White)
Rendering Index CRI>90
Power Source AC
Dimmable Yes
Base Material Aluminum (Metallic Base)
Package Components  LED Module
Thermal Silicon Pad
10 inch Black and White power feed
Outer Diameter
∅170mm (6.7 in)
Distance between Screw holes ∅88 mm (3.4 in)
∅69 mm (2.7 in)
Height 16.5mm (0.65 in)



  • 84 high-quality LEDs that produce 3000 lumens of warm white light with a color temperature of 3000K
  • Power consumption of 32W and high energy efficiency that saves on energy costs
  • Operates on a voltage of 120V AC and is dimmable for greater flexibility in lighting control
  • Includes a thermal silicon pad and a 10-inch black and white power feed for added convenience
  • etl certified, ensuring that it meets high safety and quality standards
  • High rendering index of CRI>90, making colors appear more vibrant and true-to-life
  • Ideal for a wide range of general lighting applications due to its superior quality, energy efficiency, and flexibility
  • It is a good DIY product for the replacement of a ceiling light/ Bulb source.
  • Apply Thermal Silicon Pad evenly on the bottom of the light source and the contact surface of the heat sink when installation.
