Type 10, Linear Architectural Light Fixture Profile VBD-CH-R2, 3Meters (118inches)

SKU: 666561423742

Description


Model Type 10 (VBD-CH-R2)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

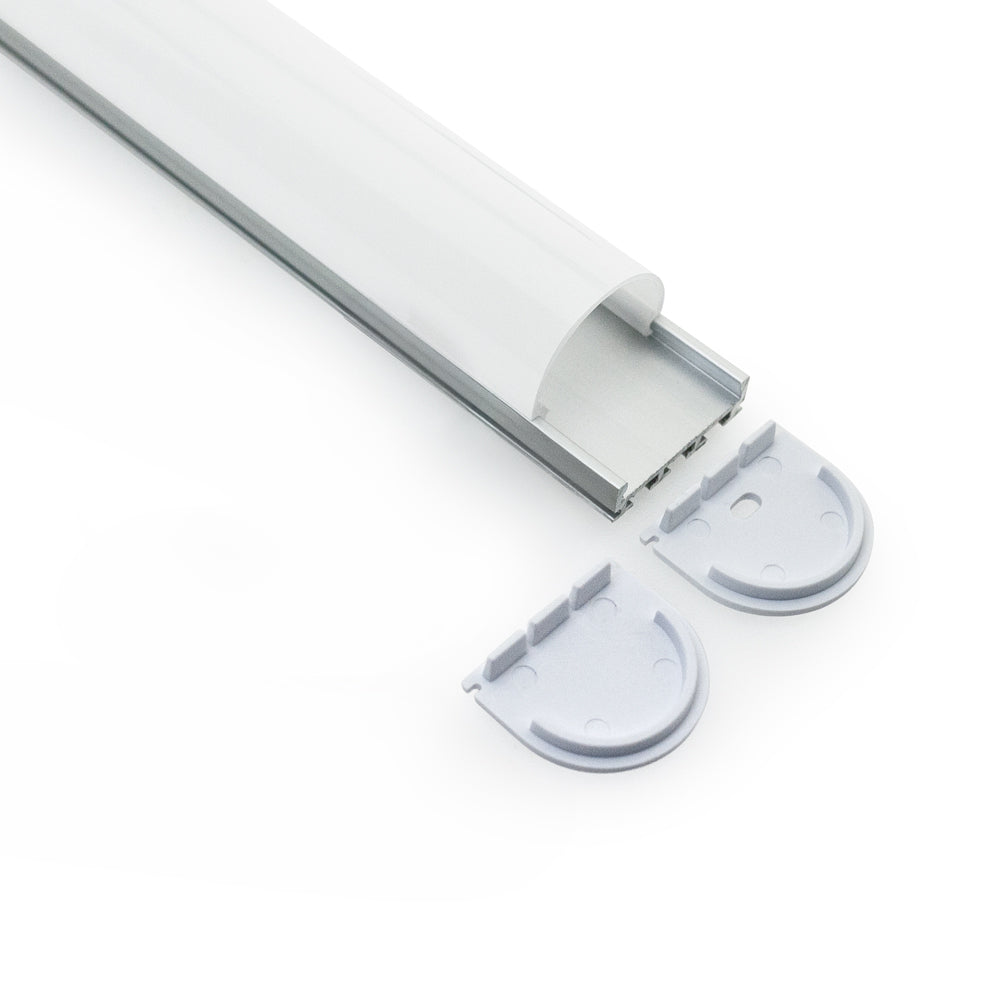

3 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)

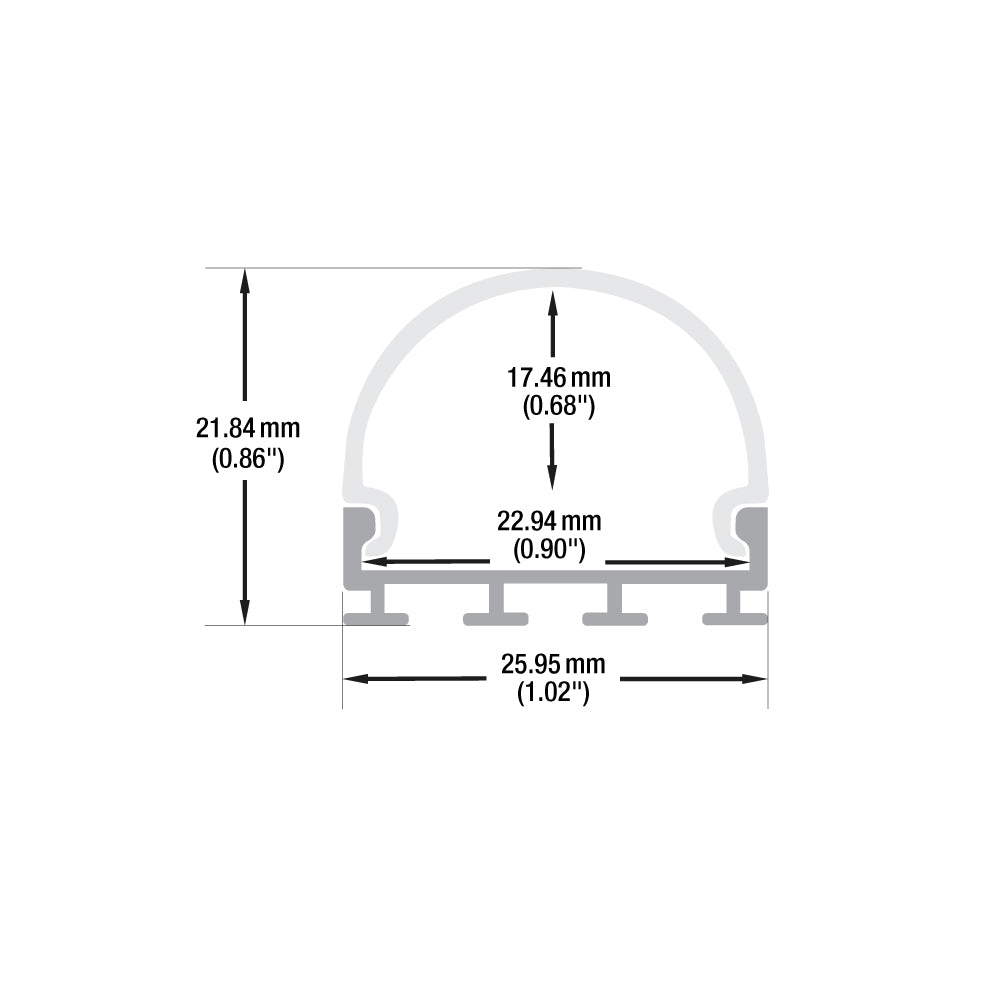

Dimensions 3000mm x 25.95mm x 21.84mm
(118in x 1.02in x 0.85in)
Mounting
  • Directly screw or groove into the mounting surface.
  • Mount using mounting clips (Sold Separately)
Accessories (sold separately) 4 pairs Endcaps VBD-ENCH-R2 SKU:666561426736
6 pcs Mounting Clips VBD-CLCH-R2 SKU:666561427214




Features:

  • They come in 9.8 ft/ 118 in which can be cut into any custom size.
  • We can also cut the channels and stick strip lights and pass along the right transformer for the strip lights.
  • Also available in Black color.
  • Can be powder coated to any desired colors.
  • Several lengths can be positioned together
  • Acts as a heat sink for the LED Strip installed in it
  • It comes with a frosted diffuser along with the end caps and mounting brackets.
  • The Product can be cut into custom sizes using a regular hacksaw.
  • Diffusers help in reducing light glaring and also giving protection from dust and avoiding any kind of damage to the LEDs, which in turn increases the life span of the LEDs.
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, etc, and much more.
  • Hides the dots of the LED strip light, gives you smooth illumination.
  • Material aluminum being corrosion free can be used even for outdoor purpose with waterproof strip lights (IP 66 and higher rating)
  • The endcaps should be sealed with silicon to avoid water.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
