Type 12, Deep Surface Mount Aluminum LED Extrusion for LED Strips VBD-CH-S4, 3Meters (118inches)

SKU: 666561423278


• Available in Custom Color


Model Type 12 (VBD-CH-S4)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Diffuser Type PC White Frosted Cover
PC Clear Cover (Sold Separately)
PC Clear Black Cover (Sold Separately)
30 Degree Clear Lens (Sold Separately)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

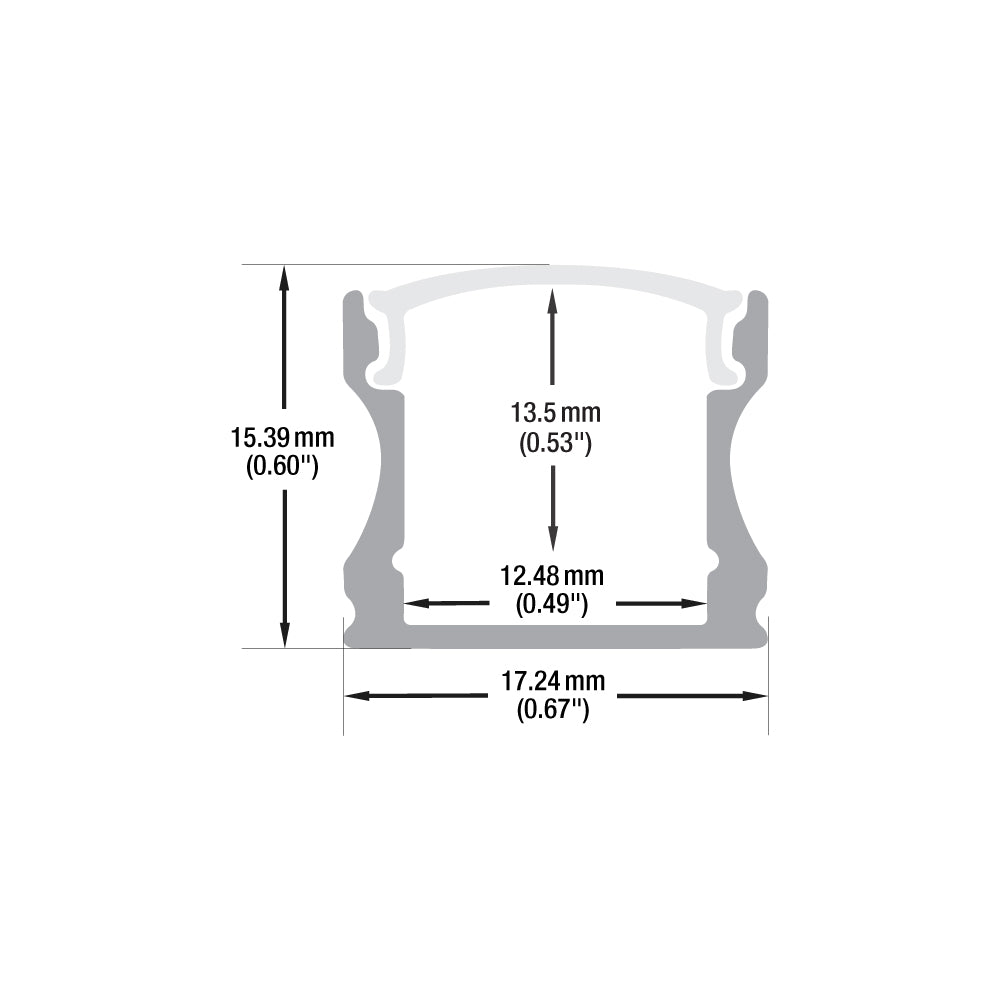

Dimensions 3000mm x 17.24mm x 15.39mm
(118in x 0.67in x 0.60in)
  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface
  • Mount using mounting clips
Extra Accessories (sold separately) 4 pairs Endcaps VBD-ENCH-S4 SKU:666561426750
6 pcs Mounting Clips VBD-CLCH-S4 SKU:666561427177
1 pair Adjustable Bracket SKU: 666561427450


  • They come in 9.8ft / 118 inches which can be cut into any custom size. we can also cut the channels and stick strip lights and pass along the right transformer for the strip lights.
  • We carry in both Black and Silver Grey colors.
  • The strip light is far from the diffuser, avoiding the visibility of the dots and giving smooth illumination of light.
  • Strip light width 12 mm and less can be installed inside this channel.
  • It can be recessed in a groove or can also be mounted onto the surface using brackets or double-sided tape.
  • It comes with a frosted diffuser along with the end caps. we also carry clear diffusers for this channel.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of the LEDs.
  • Helps in reducing light glaring and also gives protection from dust and avoids any kind of damage to the LEDs.
  • Lightweight and environment-friendly channel.
  • Several lengths can be positioned together.
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, stairs, etc, and much more.
  • Aluminum material being corrosion-free can be used even for outdoor purposes with waterproof strip lights (IP 66 and higher rating), the endcaps should be sealed with silicon to avoid water contact.
  • Brackets help in the easy installation of the channel.
  • For any queries, contact us and we can guide you for any of our products.
