Type 15, Linear Architectural LED Aluminum profile VBD-CH-S6, 3Meters (118inches)

SKU: 666561423315

Inquiry

• Available in Custom Color on orders of 20pcs or more

Description


Model Type 15 (VBD-CH-S6)
Material Aluminum
Diffuser Material Opal
Fixture color Finish Silver Grey
Package content

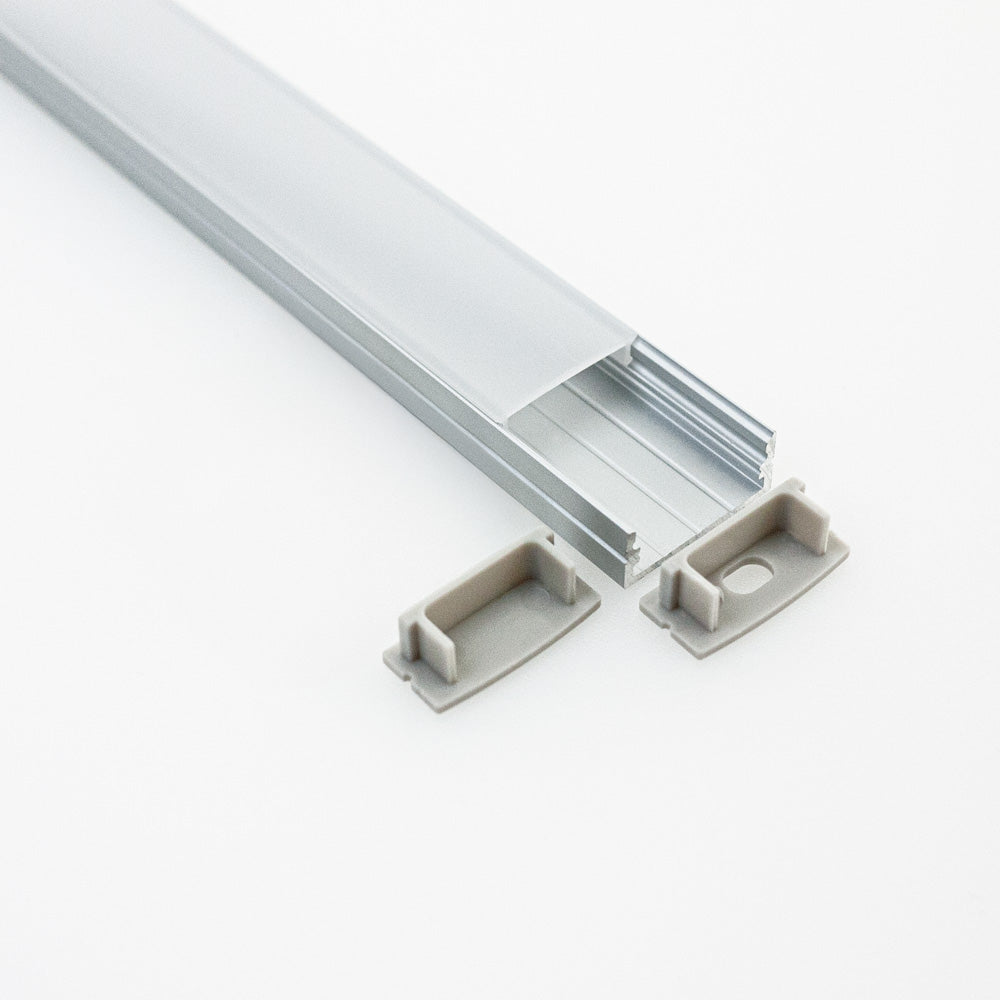

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

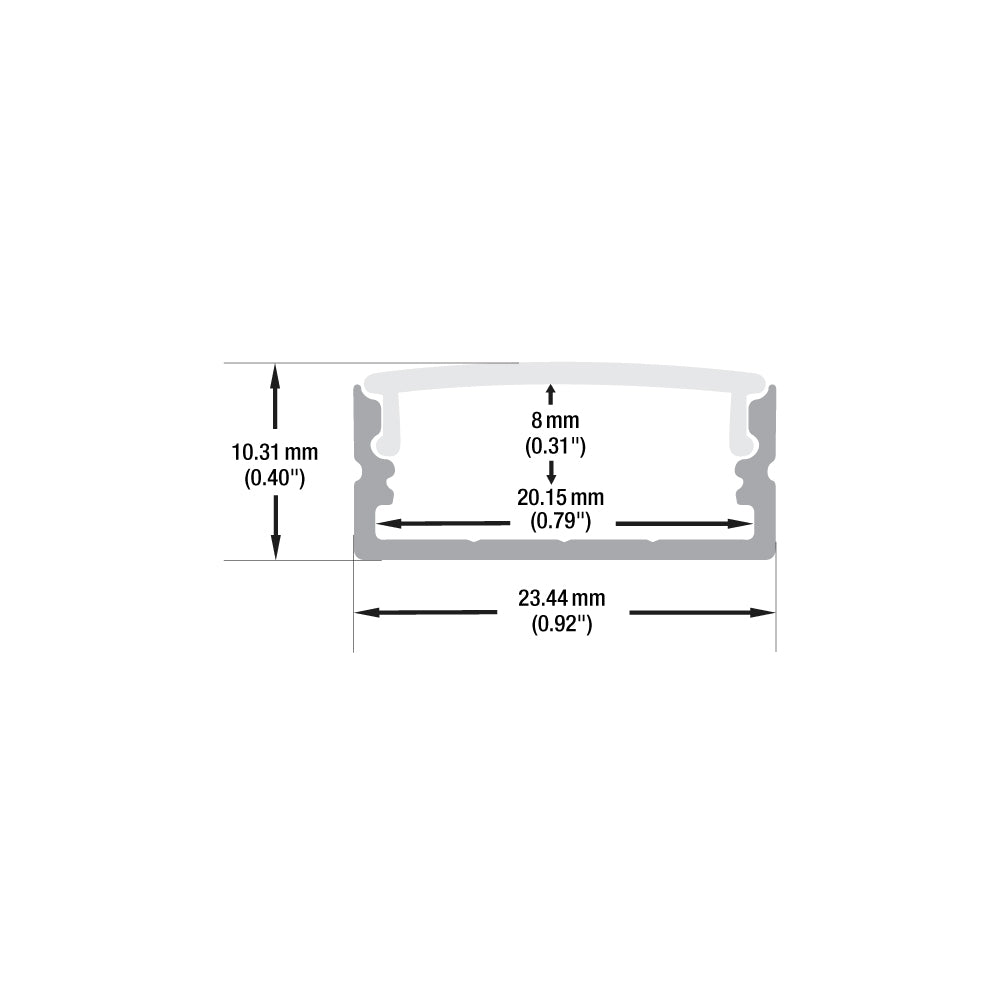

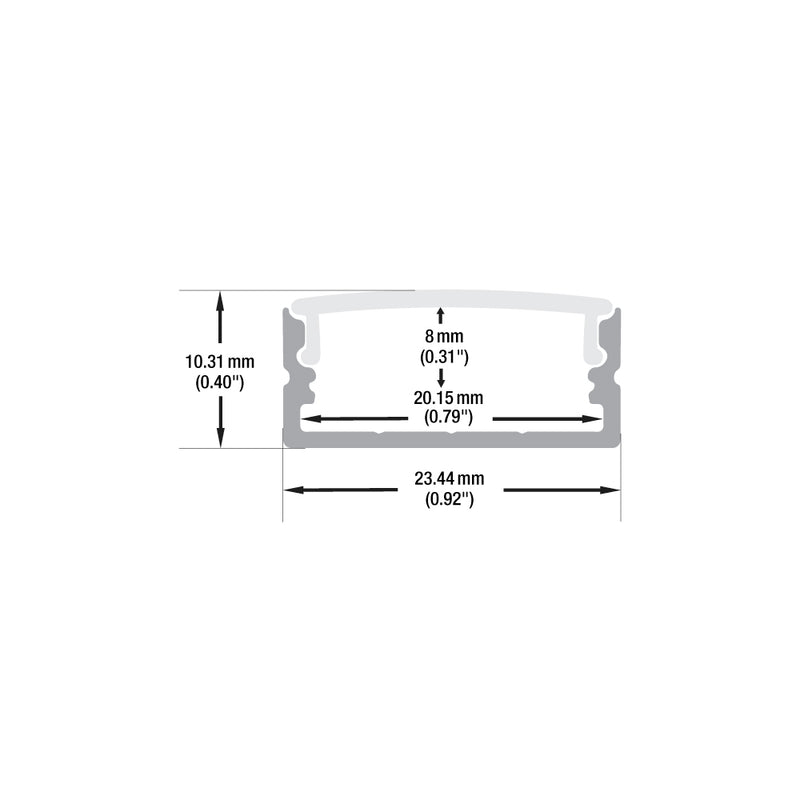

Dimensions 3000mm x 23.44mm x 10.60mm
(118in x 0.92in x 0.41in)
Mounting
  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface

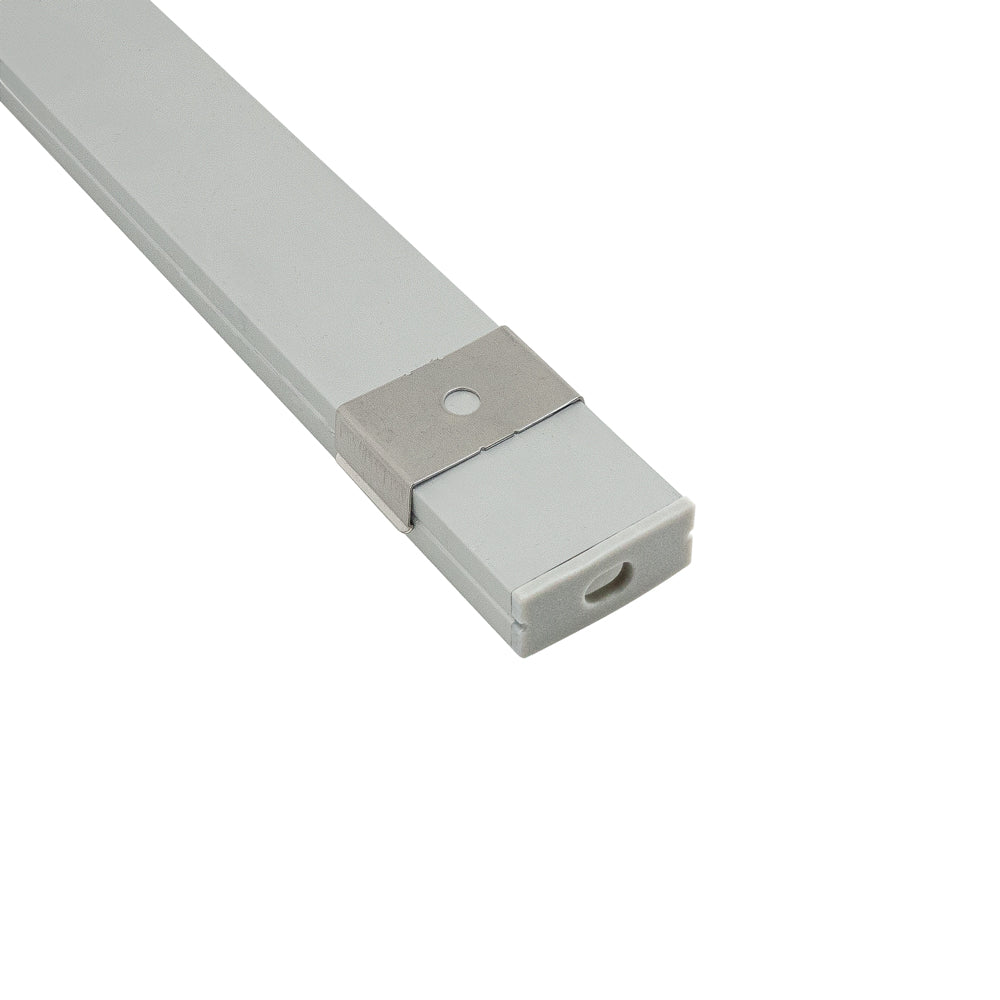

  • Mount using mounting clips
Extra Accessories (sold separately) 4 pairs Endcaps VBD-ENCH-S6 SKU:666561426781

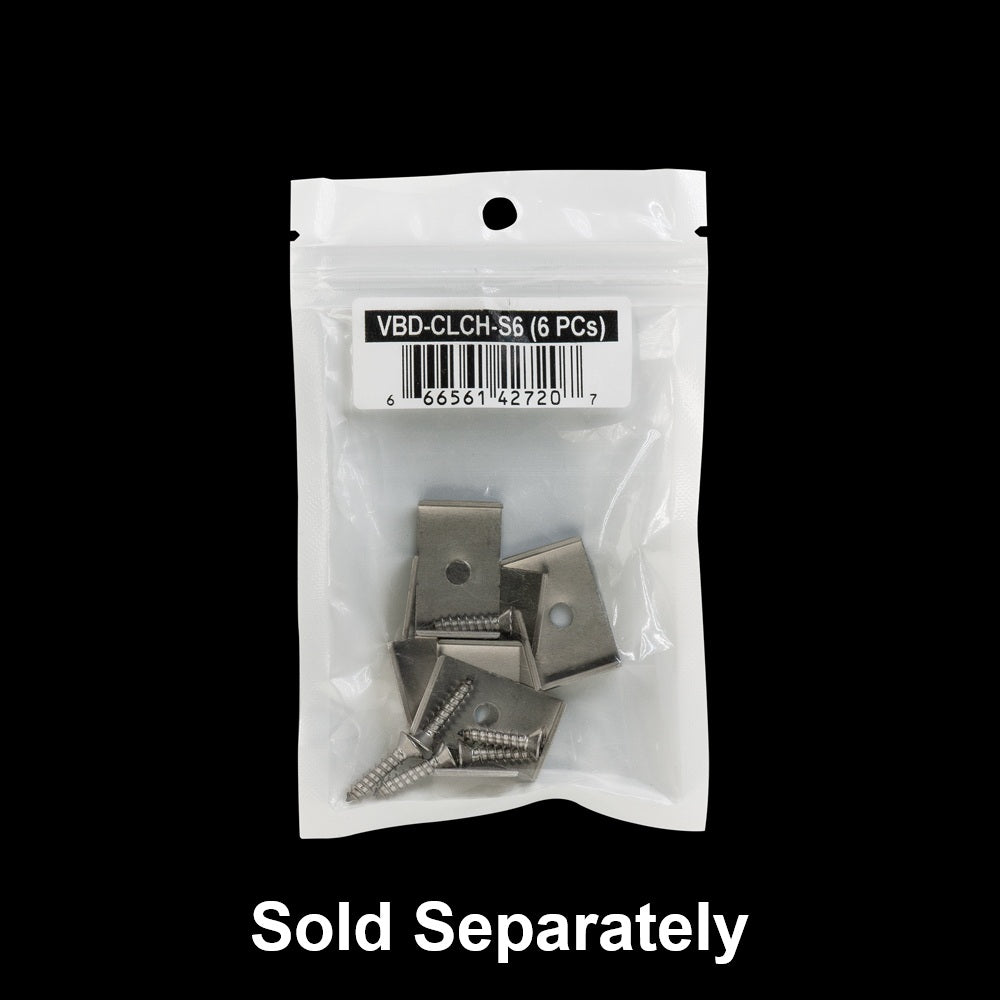

6 pcs Mounting Clips VBD-CLCH-S6 SKU:666561427207
1 pair Adjustable Bracket SKU: 666561425821




Features:

  • It comes in 9.8 feet / 118 inches which can be cut into any custom size. We can also cut the channels and stick strip lights and pass along the right transformer.
  • It can be cut using a regular hack saw.
  • Mostly used for all kinds of indoor/outdoor projects.
  • Several lengths can be positioned together.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, etc.
  • It can be recessed in a groove or mounted onto the surface using double-sided tape or screw in.
  • It comes with a frosted diffuser along with the end caps with wiring holes.
  • Endcaps can be easily mounted at the end of the project.
  •  2 layers of strips (less than or equal to 10 mm each) can be installed for more brightness depending upon the job.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • Aluminum material being corrosion-free can be used even for outdoor purposes with waterproof strip lights (IP 66 and higher rating) and the endcaps should be sealed with silicon to avoid getting in contact with water.
  • The diffuser material PC. is resistant to UV rays and also protects from moisture.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
