Type 18, Recessed LED Aluminum Channels for LED Strip Lights VBD-CH-RF4, 3Meters (118inches)

SKU: 666561423377


• Available in Custom Color


Model Type 18 (VBD-CH-RF4)
Material Aluminum
Diffuser Material Opal
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

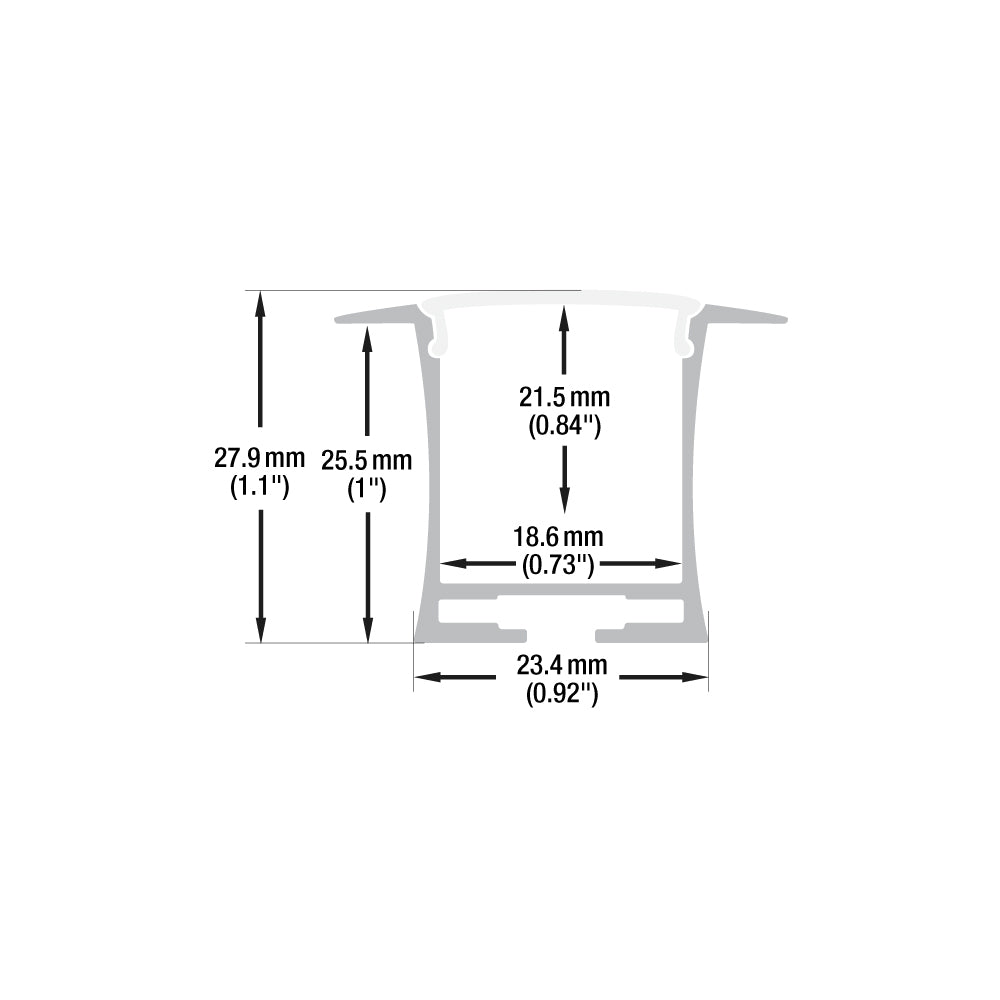

Dimensions 3000mm x 23.40mm x 27.90mm
(118in x 0.92in x 1.09in)
  • Mount using Mounting Brackets
  • Suspended Mount using an aircraft cable
Extra Accessories (sold separately) 2 pairs Endcaps VBD-ENCH-RF4 SKU:666561426811
4 pcs Mounting Brackets VBD-CLCH-RF4 SKU:666561429072
1 pair Suspension Kit VBD-AIRC-10F-ERWS SKU: 666561417468



  • Comes in 9.8 feet/ 118 inches which can be cut into any custom size. We also custom make the channels by cutting and sticking strip lights along with passing the right transformer.
  • Can be hanged using Aircraft cables or can also be mounted on the surface using double-sided tape.
  • It can either be used as a drop or suspender or can be flush-mount to wall and ceiling.
  • The leaps give a good surface finish to the recessed channel
  • Widely used as a pendant light using aircraft cables. Used as a drop or suspender.
  • Pendant light provides bright and lens intense light all around.
  • The most popular application is over the kitchen islands and billiard area giving more focused light for ambiance or task lighting.
  • Can be powder coated to any desired colors.
  • Can also be screwed or recessed to the wall or ceiling.
  • Several lengths can be positioned together.
  • Can be used as a working light in a work area with the bright strip lights.
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, etc.
  • Popular for recessed applications like walls, under cabinets, stairs, furniture panels, etc.
  • Can be cut using a regular hack saw.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • Comes with a frosted diffuser along with the end caps with wiring holes.
  • Endcaps can be easily mounted at the end of the project.
  • With inside width, 18.6 mm, 2 layers of strips (8 mm width) can be installed for more brightness depending upon the job.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • The diffuser material is resistant to UV rays and also protects from moisture.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
