Type 23, Linear Architectural LED Aluminum channel VBD-CH-RF5, 3Meters (118inches)

SKU: 666561423384


• Available in Custom Color


Model Type 23 (VBD-CH-RF5)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser (lens)

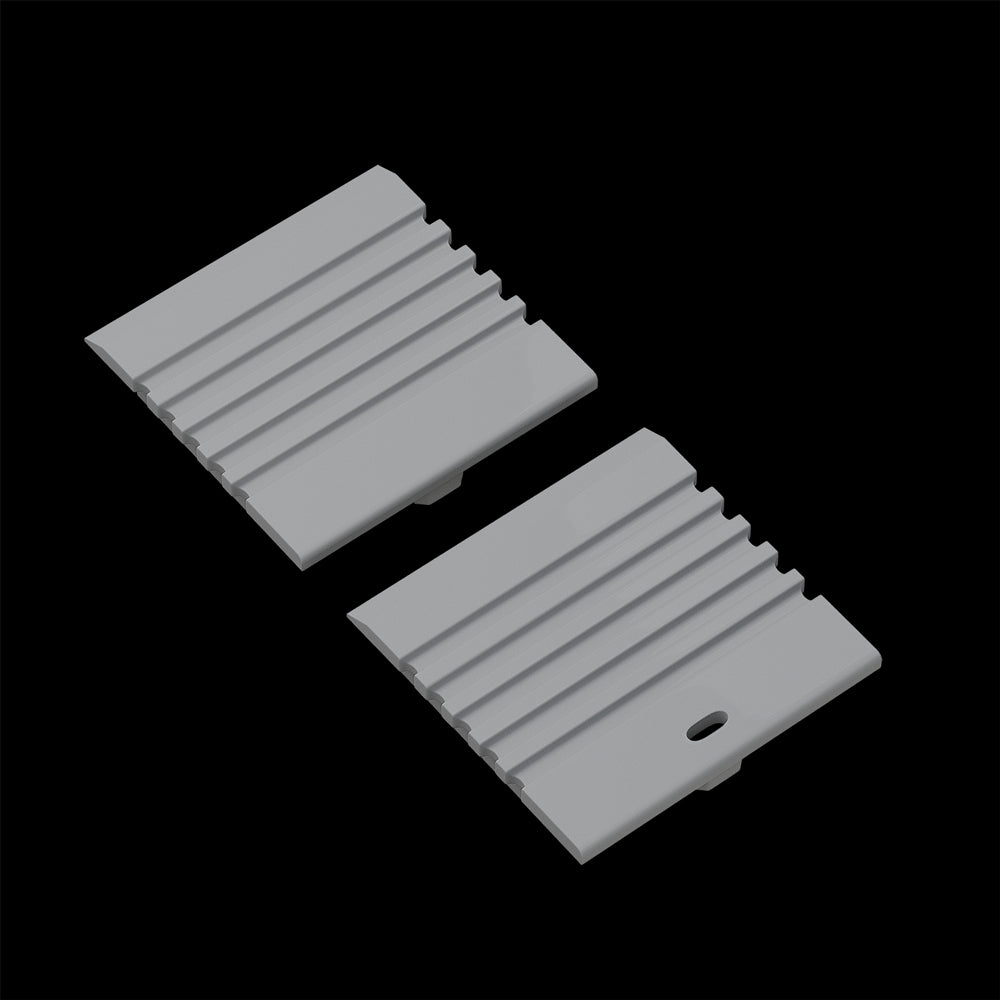

1 pair of Endcaps (with and without holes)

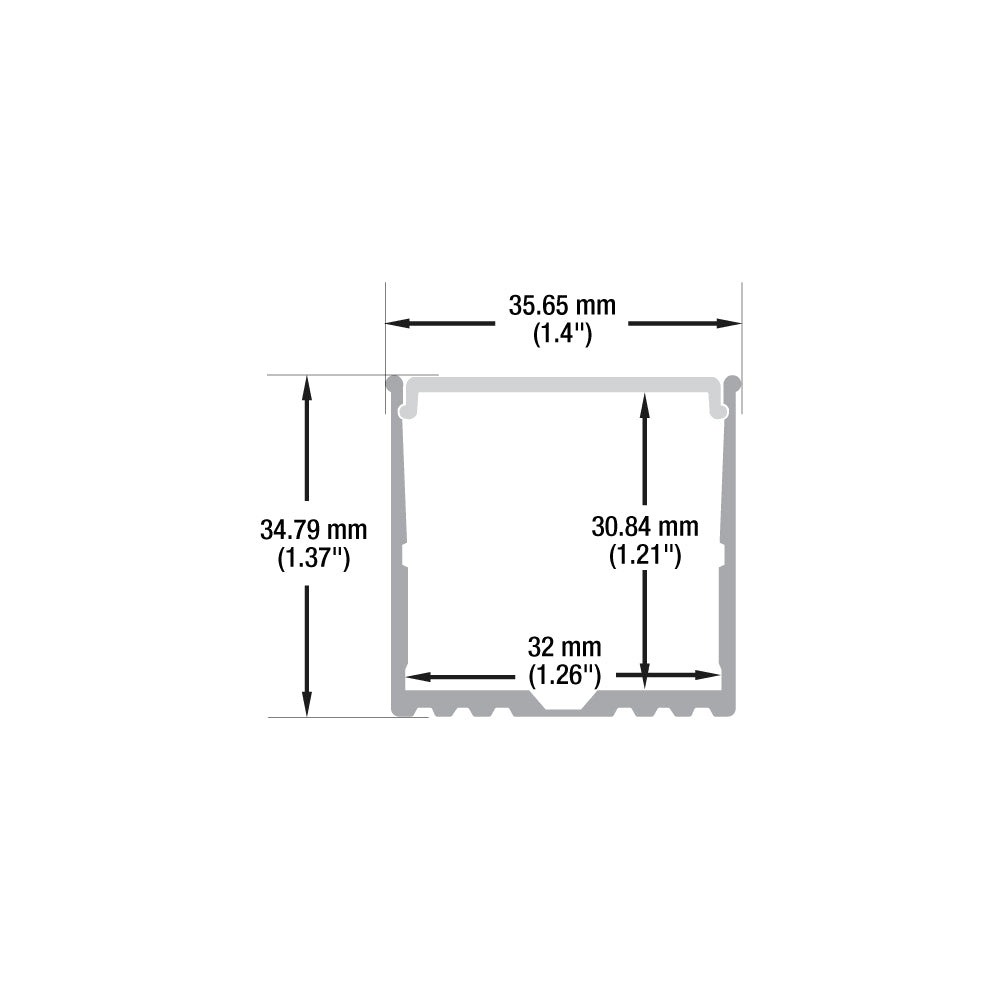

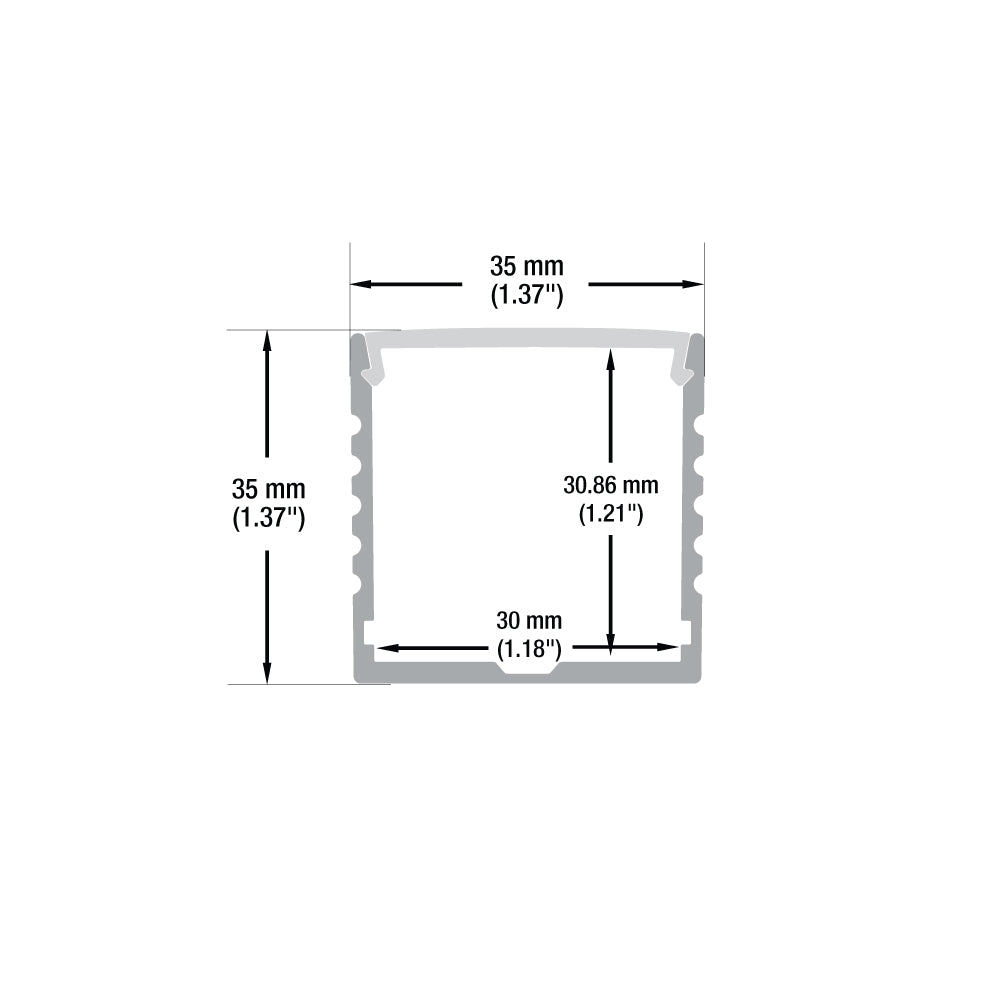

Dimensions 3000mm x 35mm x 34.79mm
(118in x 1.37in x 1.36in)
  • Directly screw or groove into the mounting surface

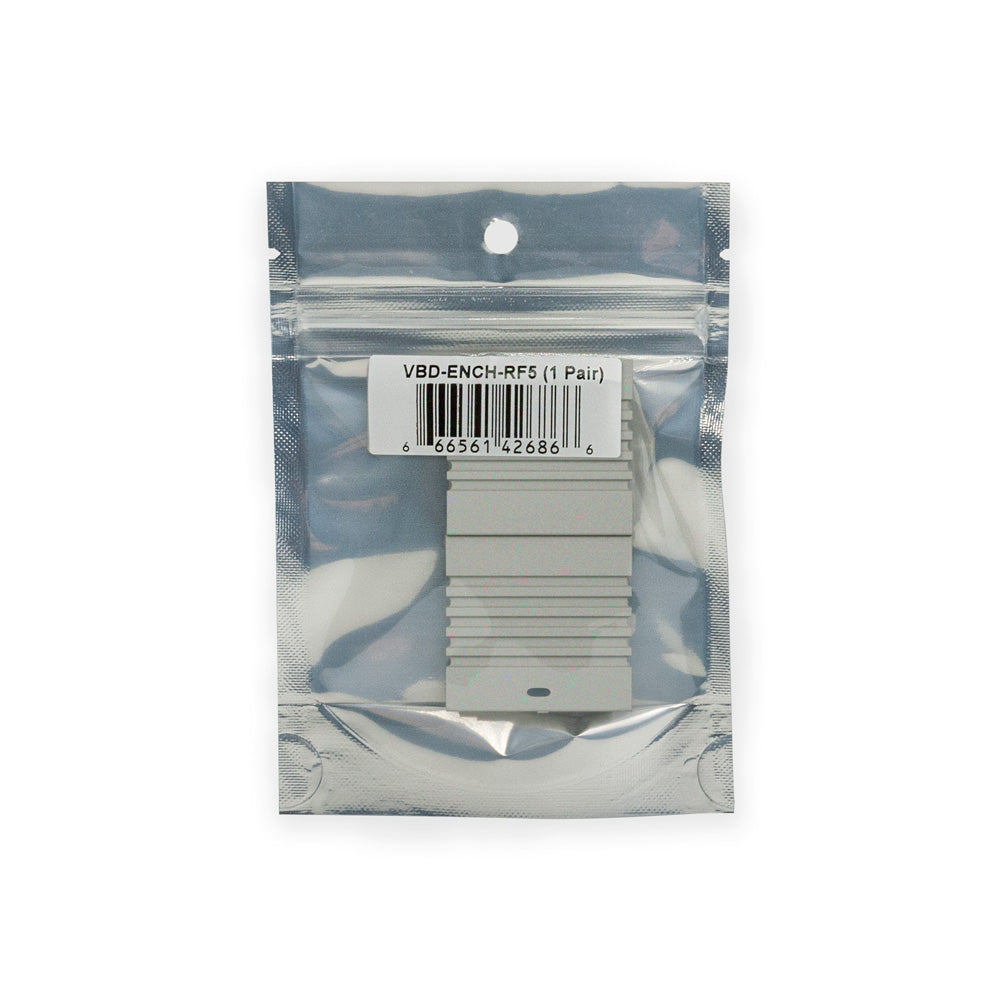

Accessories (sold separately) 1 pair Endcaps VBD-ENCH-RF5 SKU:666561426866



  • They come in 9.8 ft / 118 inches which can be cut into any custom size. we can also cut the channels and stick strip lights and pass along the right transformer for the strip lights.

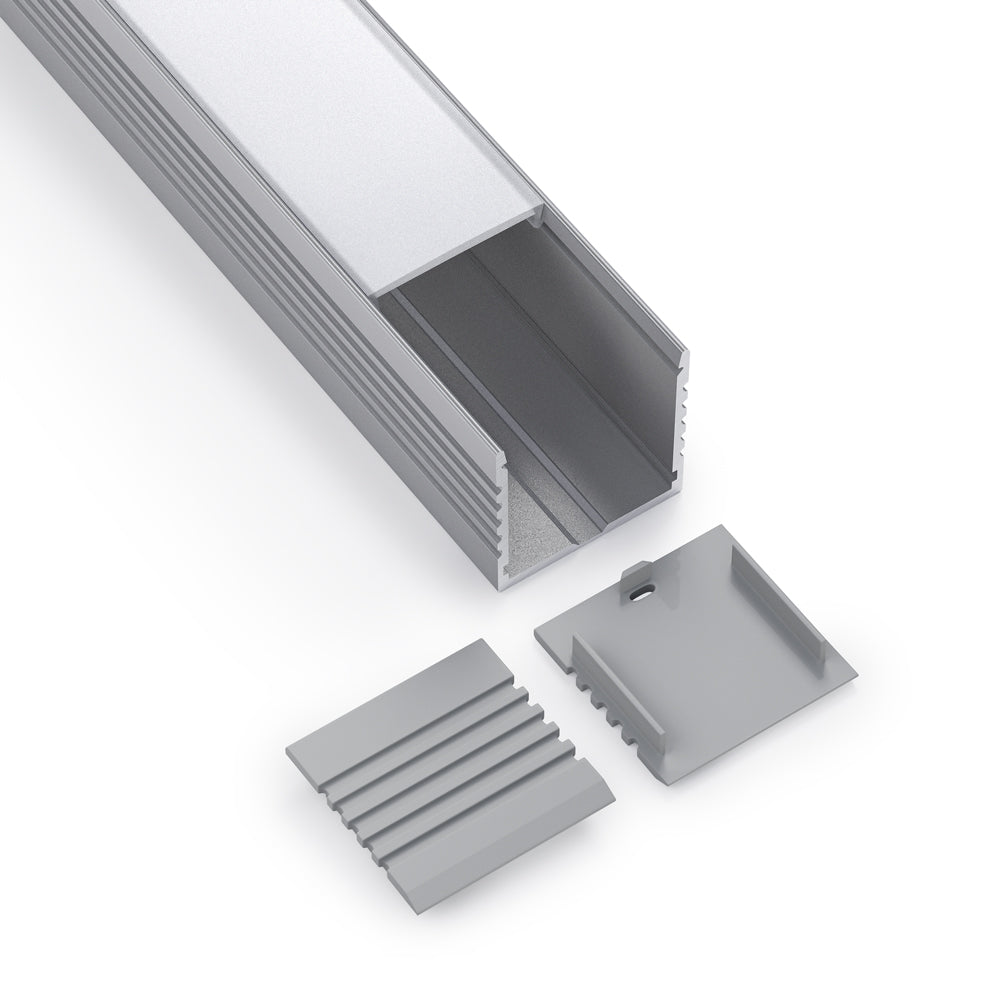

  • It comes with a frosted diffuser along with the end caps.
  • Simple design with a good quality finish.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of the LEDs.
  • Can be powder coated to any desired colors.
  • Helps in reducing light glaring and also gives protection from dust and avoid any kind of damage to the LEDs.
  • Lightweight and environment-friendly channel.
  • Several lengths can be positioned together.
  • Endcaps can be easily mounted at the end of the project.
  • Can also be used as a working light in a work area with bright strip lights through recessed installations.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • For any queries, contact us and we can guide you for any of our products.
