Type 25, Recessed Linear Architectural Light Fixture for LED Strip Lights VBD-CH-RF7, 3Meters (118inches)

SKU: 666561423407


• Available in Custom Color


Model Type 25 (VBD-CH-RF7)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser (lens)

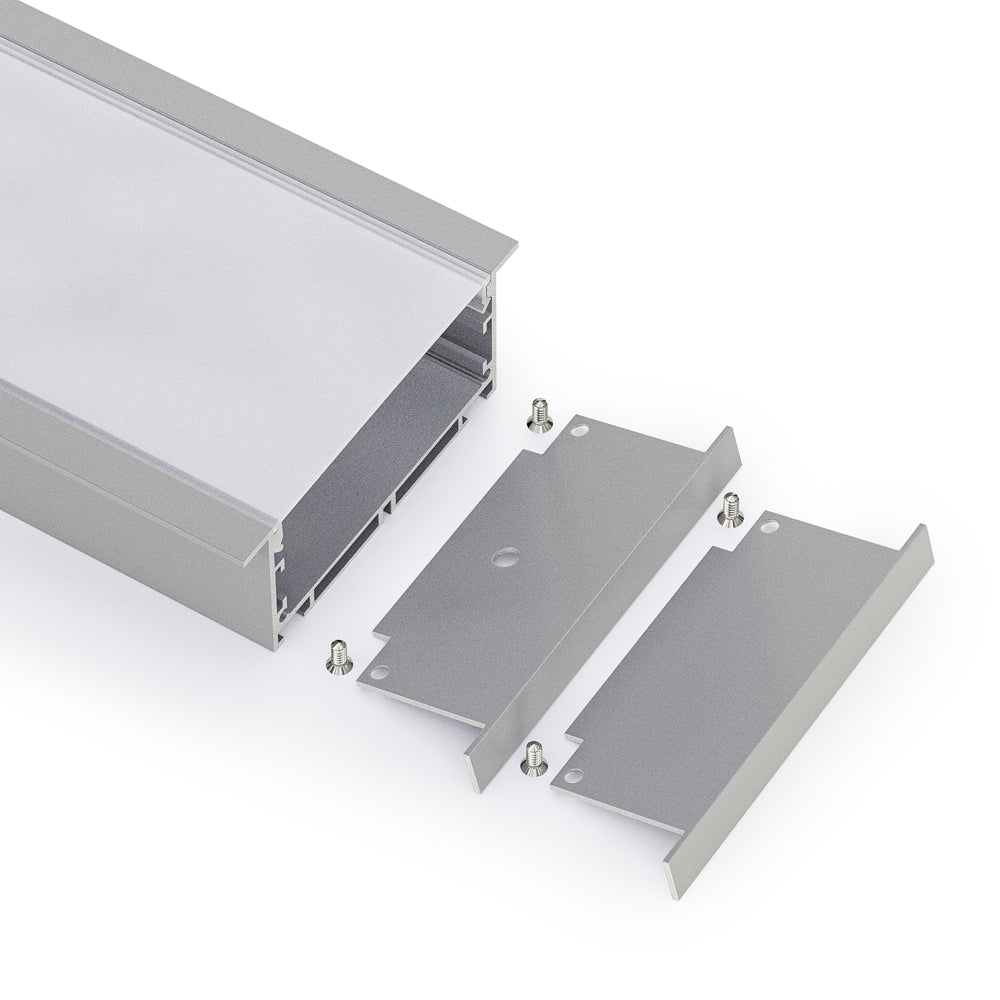

1 pair of Endcaps (with and without holes)

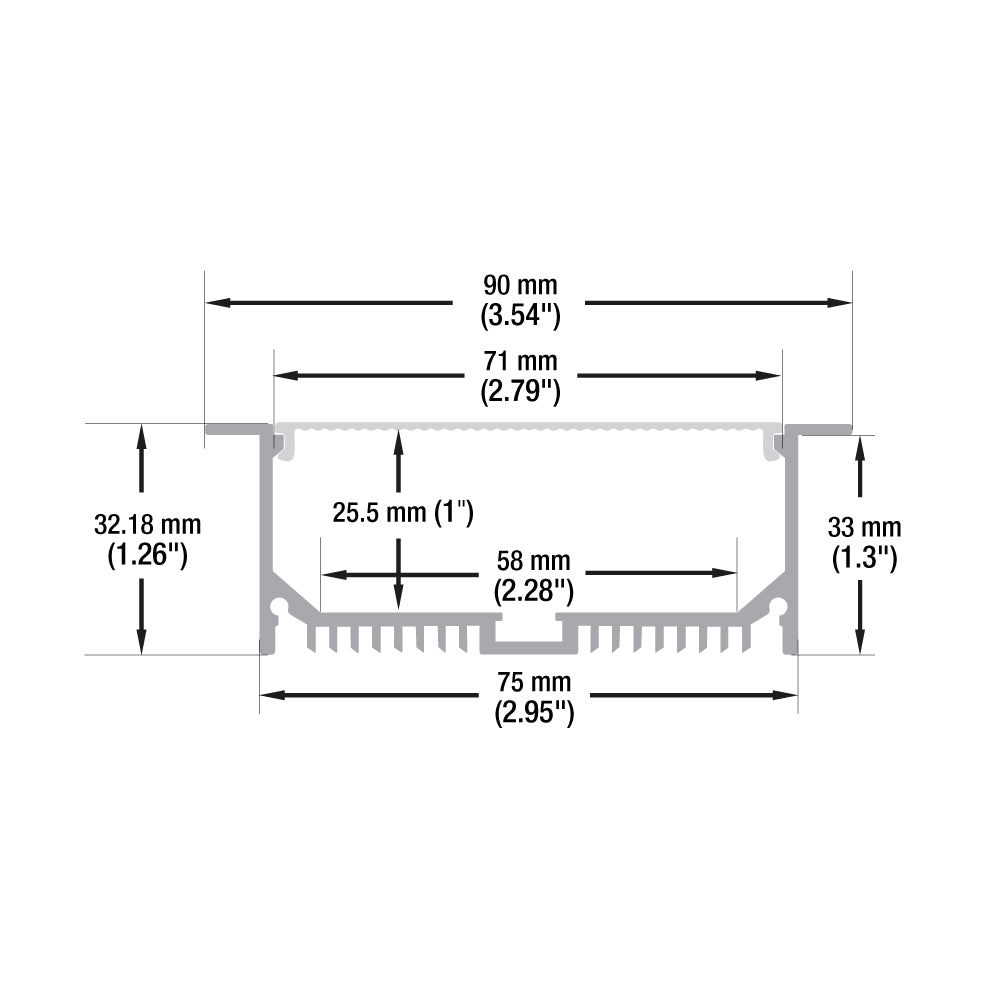

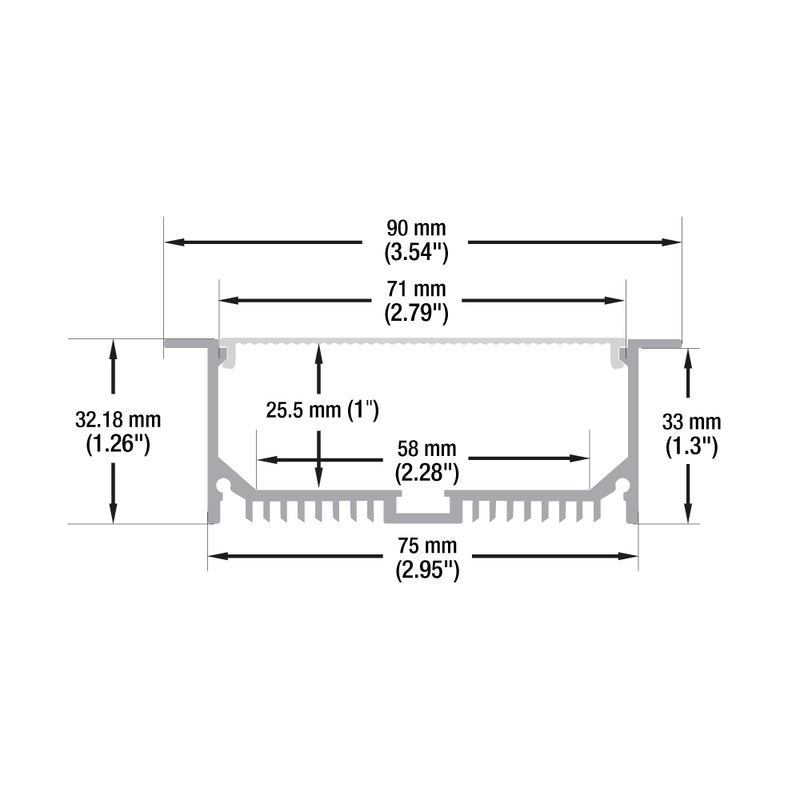

Dimensions 3000mm x 75mm x 32.18mm
(118in x 2.4in x 1.26in)
Accessories (sold separately) 1 pair Endcaps VBD-ENCH-RF7 SKU:666561426880



  • Comes in 9.8 feet/ 118 inches which can be cut into any custom size. We also custom make the channels by cutting and sticking strip lights along with passing the right transformer.
  • It comes with a frosted diffuser along with the end caps.
  • The leaps give a good surface finish to the recessed channel
  • The aluminum fins at the base act as a good coolant (Best heat dissipation) to the strip lights.
  • Suitable for the high power strip lights, for task lighting.
  • Simple design with a good quality finish.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of the LEDs.
  • Can be powder coated to any desired colors.
  • Helps in reducing light glaring and also gives protection from dust and avoid any kind of damage to the LEDs.
  • Lightweight and environment-friendly channel.
  • Several lengths can be positioned together.
  • Endcaps can be easily mounted at the end of the project.
  • Can also be used as a working light in a work area with bright strip lights through recessed installations.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • For any queries, contact us and we can guide you for any of our products.
