Type 29, Step Edge Linear Architectural LED Aluminum channel VBD-CH-ST2, 3Meters (118inches)

SKU: 666561423582


• Available in Custom Color


Model Type 29 (VBD-CH-ST2)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

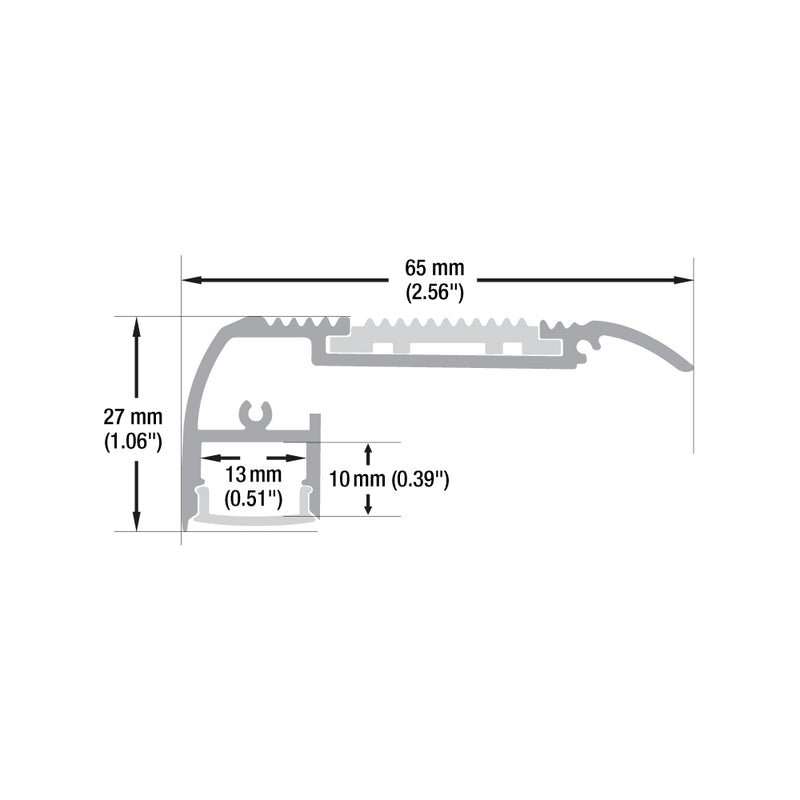

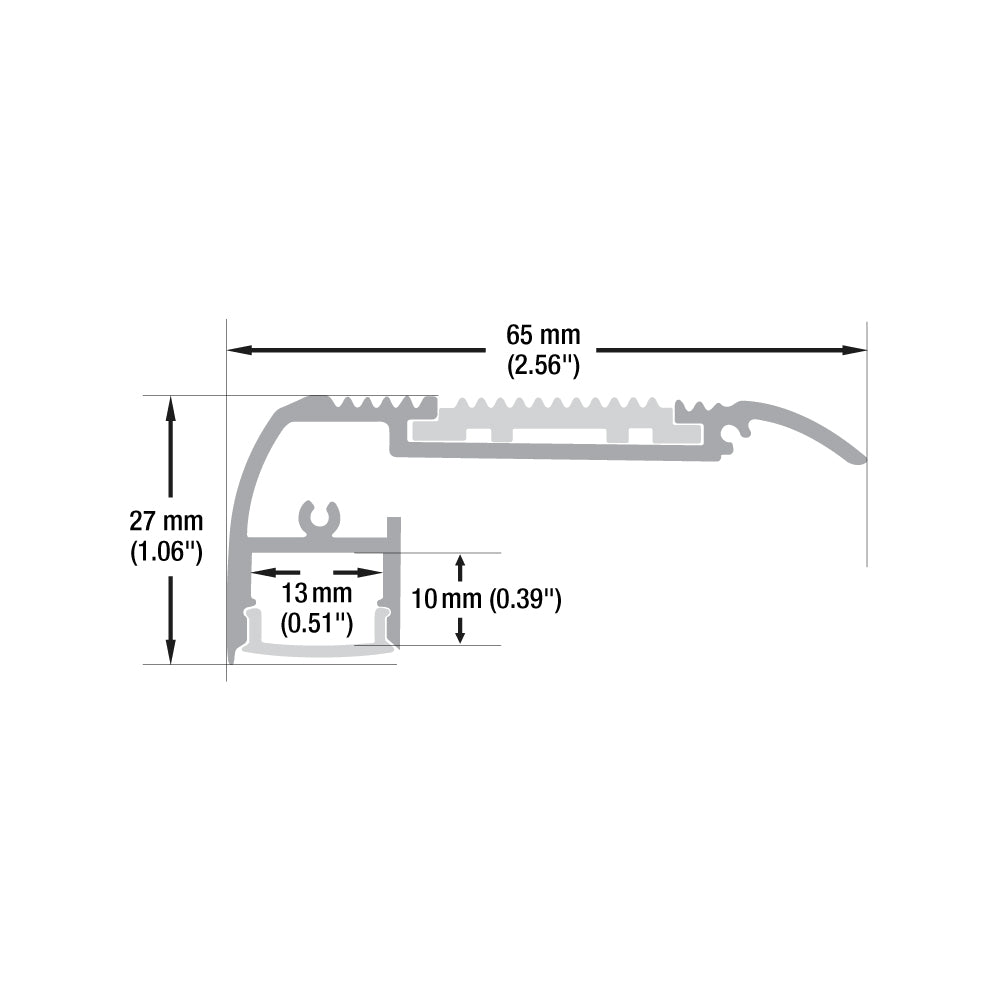

Dimensions 3000mm x 65mm x 27mm
(118in x 2.55in x 1.06in)
Extra Accessories (sold separately) 1 pair Endcaps VBD-ENCH-ST2 SKU:666561426927



  • It comes in 9.8 ft/ 118 inches which can be cut into any custom size. We can also cut the channels and stick strip lights and pass along the right transformer.
  • Ideal for featured lighting of the staircase.
  • Presents LED lights to high standards mostly when installations are visible.
  • It can be powder coated to any desired colors.
  • It can easily slide in diffuser from the front after the installation, making it easier to change the strip lights if required.
  • Ideal for under stairs lighting with a diffuser at the end of the channel.
  • It makes professional aluminum finish for any kind of stairs (tile, wood, or carpet).
  • The channel also has an anti-slip silicone strip that provides protection from slips, falls, and wears.
  • The leaps give a good surface finish to the channel.
  • Applicable for both indoor/outdoor lighting.
  • Comes  in standard silver-grey surface finish
  • Several lengths can be positioned together.
  • It can be easily cut using a regular hack saw.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • It comes with a frosted diffuser along with the end caps with wiring holes.
  • Endcaps can be easily mounted at the end of the project.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
