Type 30, Linear Aluminum LED Strip Channel for Indirect Lighting VBD-CH-C1, 2Meters (78inches)

SKU: 666561423490

Inquiry

• Available in Custom Color on orders of 20pcs or more

Description


Model Type 30 (VBD-CH-C1)
Material Aluminum
Diffuser Material Opal
Fixture color Finish Silver Grey
Package content

2 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

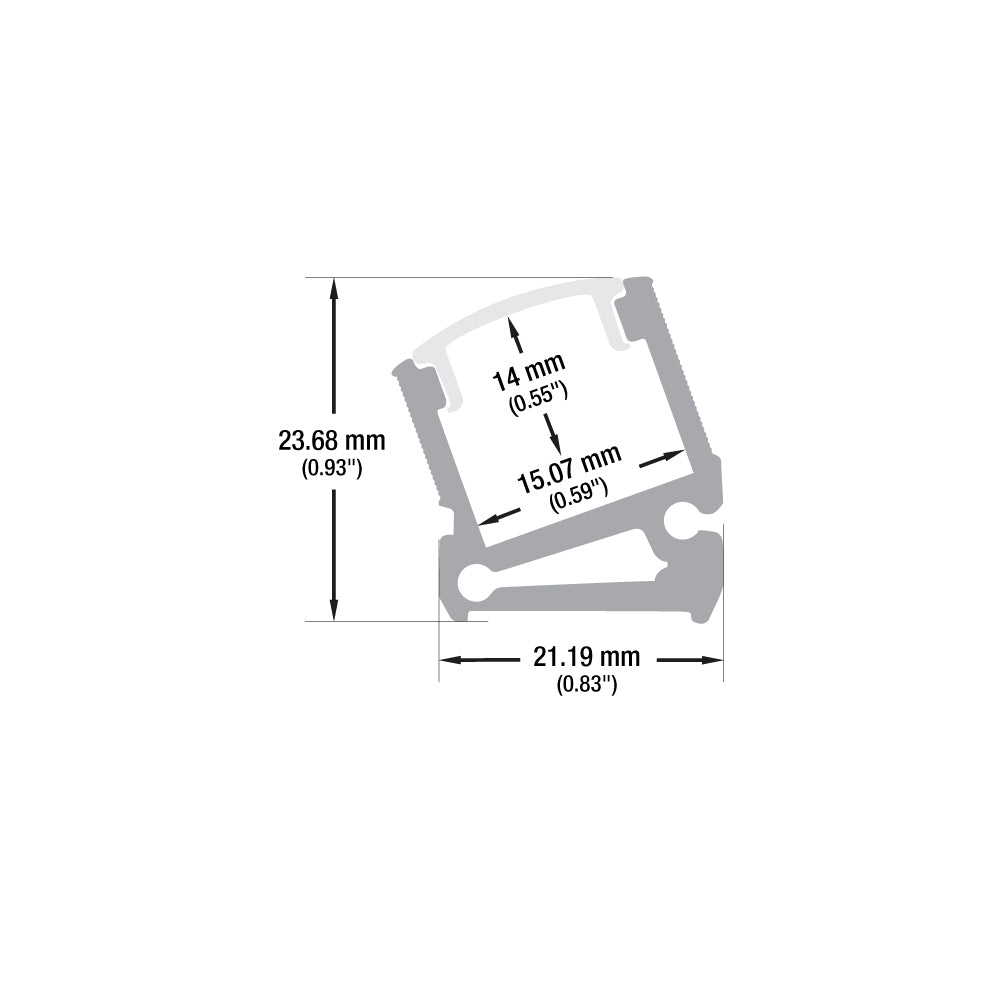

Dimensions 2000mm x 21.19mm x 23.68mm
(78in x 0.83in x 0.93in)
Mounting
  • Mount using a 3M Double-sided tape
  • Directly screw or groove into the mounting surface
Extra Accessories (sold separately) 1 pair Endcaps VBD-ENCH-C1 SKU:666561426934
4 pcs Mounting Clips VBD-CLCH-C1 SKU:666561429249




Features:

  • They come in 6.5 ft/ 78.74 in which can be cut into any custom size.
  • We can also cut the channels and stick strip lights and pass along the right transformer for the strip lights.
  • Can be powder coated to any desired colors.
  • Several lengths can be positioned together
  • Acts as a heat sink for the LED Strip installed in it
  • It comes with a frosted diffuser along with the end caps.
  • Applicable for closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, etc.
  • The channel has an angle useful for projecting light at the adjacent sides
  • The Product can be cut into custom sizes using a regular hacksaw.
  • Diffusers help in reducing light glaring and also giving protection from dust and avoiding any kind of damage to the LEDs, which in turn increases the life span of the LEDs.
  • Hides the dots of the LED strip light, gives you smooth illumination.
  • Material aluminum being corrosion free can be used even for outdoor purpose with waterproof strip lights (IP 66 and higher rating)
  • The endcaps should be sealed with silicon to avoid water.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
