Type 34B, Corner Mount Aluminum Curved Diffuser LED Strip Light Fixture Profile VBD-CH-C3, 3Meters (118inches)

SKU: 666561423520

Inquiry

• Available in Custom Color on orders of 20pcs or more

Description


Model Type 34B (VBD-CH-C3)
Material Anodized Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

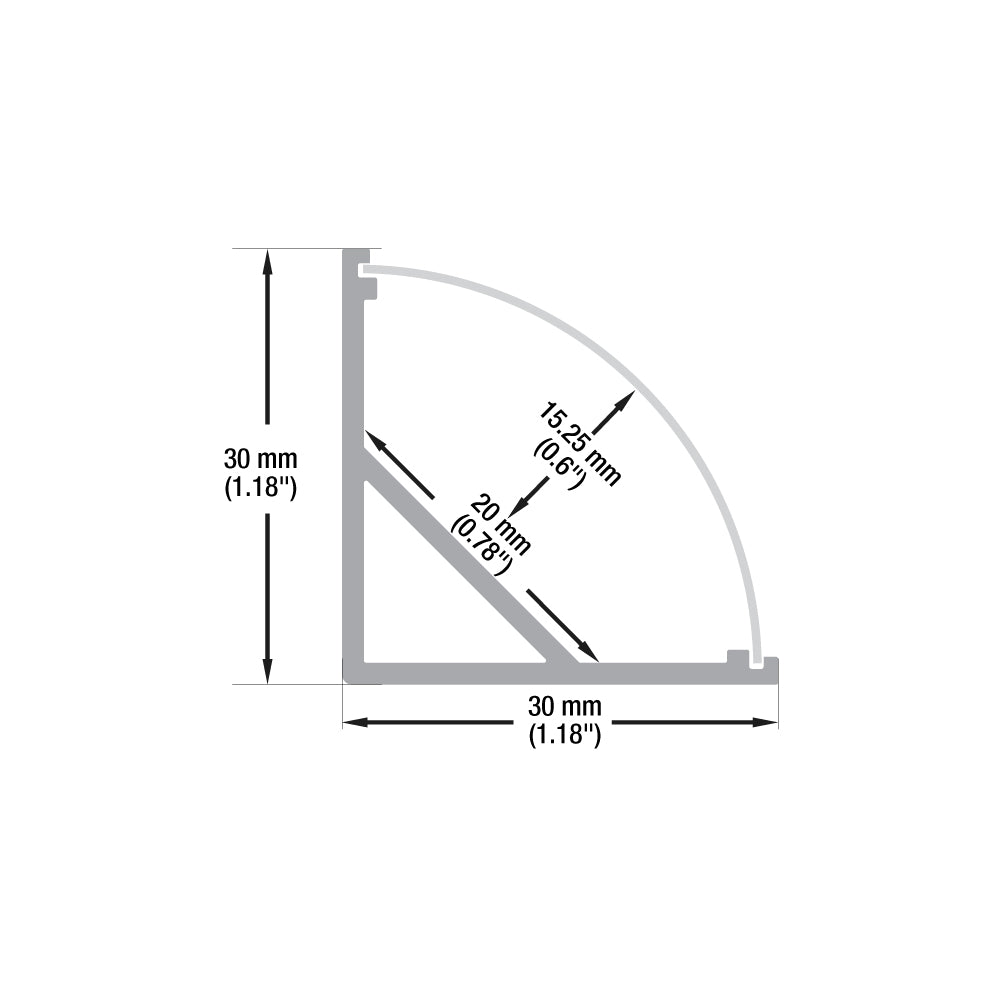

Dimensions 3000mm x 30mm x 30mm
(118in x 1.18in x 1.18in)
Mounting
  • Directly screw or groove into the mounting surface
  • Mount using mounting clips
Extra Accessories (sold separately) 2 pairs Endcaps VBD-ENCH-C3 SKU:666561426989
6 pcs Mounting Clips VBD-CLCH-C3 SKU:666561429119



Features:

  • It comes in 9.8 feet/ 118 inches which can be cut into any custom size. We can also cut the channels and stick strip lights and pass them along the right transformer.
  • Several lengths can be positioned together.
  • We also carry these channels in the Black color of the same length.
  • Similar to this channel is type 34C with square edges (in both Black and Silver Grey color).
  • The channel project lights at a 45-degree angle useful for projecting light at the adjacent sides
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • Applicable for closets, ceiling, shower doors, windows, accent lighting, showcases in the stores, etc.
  • Some projects require smaller-width channel shooting at a 45-degree angle. Our corner mount is the solution. It is available in both black and silver-grey color in different lengths (2m and 3m).
  • The extrusion can also be mounted using double-sided tape.
  • It gives a linear light without any visibility of the aluminum channel when recessed.
  • Endcaps can be easily mounted at the end of the project.
  • With inside width, 20 mm, 2 layers of strips can be installed for more brightness depending upon the job.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
