Type 6, 3 Channel Recessed Surface Mount LED Profile Housing for LED Strip Lights VBD-CH-S3, 3Meters (118inch)

SKU: 666561423261


• Available in Custom Color


Model Type 6 (VBD-CH-S3)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

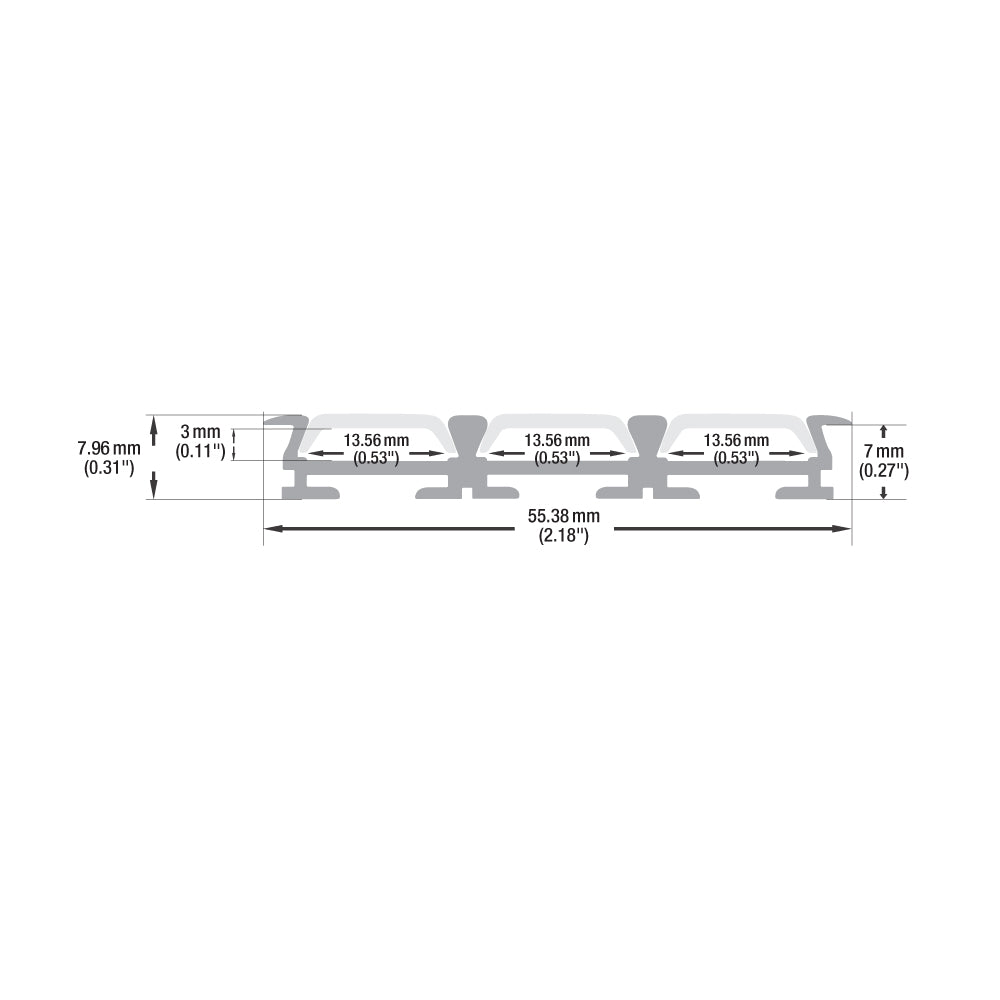

Dimensions 3000mm x 55.38mm x 7.96mm
(118in x 2.18in x 0.31in)
  • Directly screw or groove into the mounting surface.
Extra Accessories (Sold Separately) 2 pairs Endcaps VBD-ENCH-S3 SKU: 666561426699



  • Comes in 9.8 feet / 118 inches which can be cut into any custom size. We can also cut the channels and stick strip lights and pass them along to the right transformer.
  • Can be easily cut using a regular hack saw.
  • Widely applicable for recessed ceiling applications.
  • It can be installed by either recessed,  surface mounted through screws.
  • The leaps give a good surface finish to the installed groove.
  • Several lengths can be positioned together.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • Comes with a frosted diffuser along with the end caps with wiring holes.
  • Endcaps can be easily mounted at the end of the project.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • For any queries, contact us and we can guide you for any of our products.
