Type 9, Linear Architectural LED Aluminum channel, 2Meters (78inches)

SKU: 666561413453


• Available in Custom Color


Model Type 9
Material Aluminum
Diffuser Material Opal
Fixture color Finish Silver Grey
Package content

2 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)

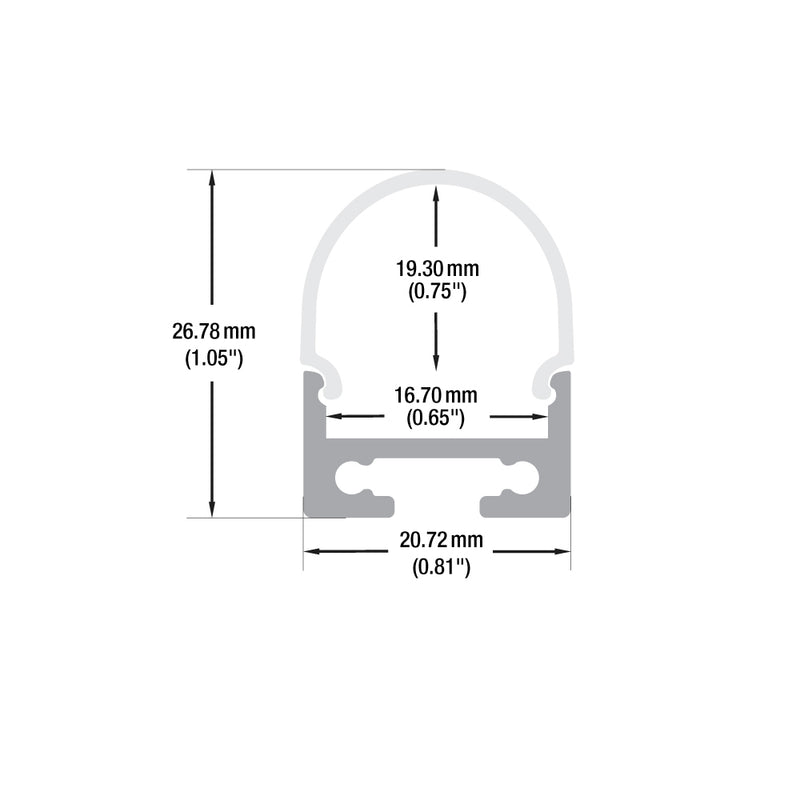

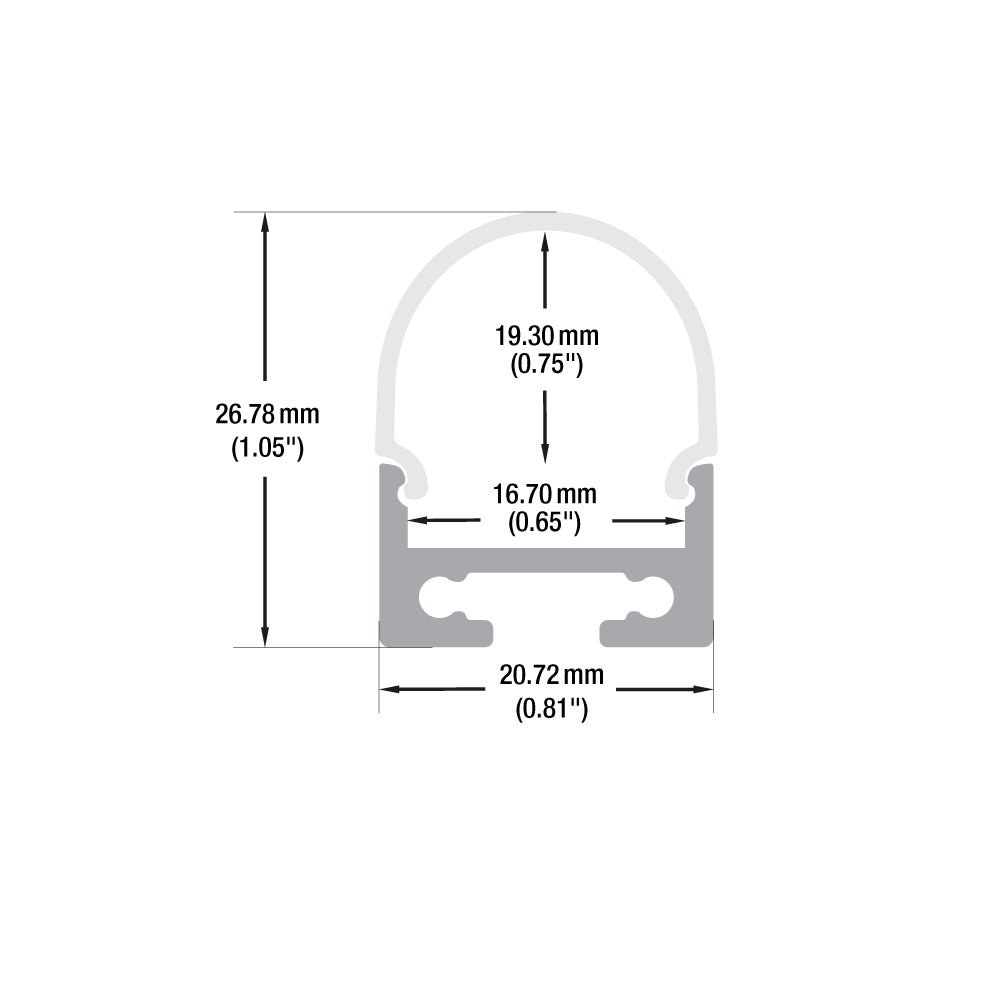

Dimensions 2000mm x 20.72mm x 26.78mm
(78in x 0.815in x 1.05in)
  • Directly screw or groove into the mounting surface
  • Mount using Mounting Clips
  • Mount Using Mounting Brackets
  • Suspended Mount using an aircraft cable
Accessories (Sold Separately) 4 pairs Endcaps VBD-ENCH-R1 SKU:666561426729



  • They come in 6.5 ft/ 78.74 in which can be cut into any custom size.
  • We can also cut the channels and stick strip lights and pass along the right transformer for the strip lights.
  • Also available in 3 Meters (118 inches)
  • Can be powder coated to any desired colors.
  • Can be hanged using Aircraft cables or can also be mounted on the ceiling using mounting brackets.
  • Several lengths can be positioned together
  • Acts as a heat sink for the LED Strip installed in it
  • It comes with a frosted diffuser along with the end caps.
  • Diffusers help in reducing light glaring and also giving protection from dust and avoiding any kind of damage to the LEDs, which in turn increases the life span of the LEDs.
  • With 20mm width, 2 layers of strips of width 10 mm and less can be installed for more brightness depending upon the job.
  • Applicable for cabinets, shelves, closets, ceiling, shower doors, windows, accent lighting, etc, and much more.
  • Hides the dots of the LED strip light, gives you smooth illumination.
  • Material aluminum being corrosion free can be used even for outdoor purpose with waterproof strip lights (IP 66 and higher rating)
  • The endcaps should be sealed with silicon to avoid water.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
