Type 91, Recessed LED Aluminum channel for Drywall(Plaster-In) VBD-CH-D1, 3Meters (118inches)

SKU: 666561423643


• Available in Custom Color on orders of 20pcs or more


Model Type 91 (VBD-CH-D1)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser
1 pair of Endcaps (with and without holes)

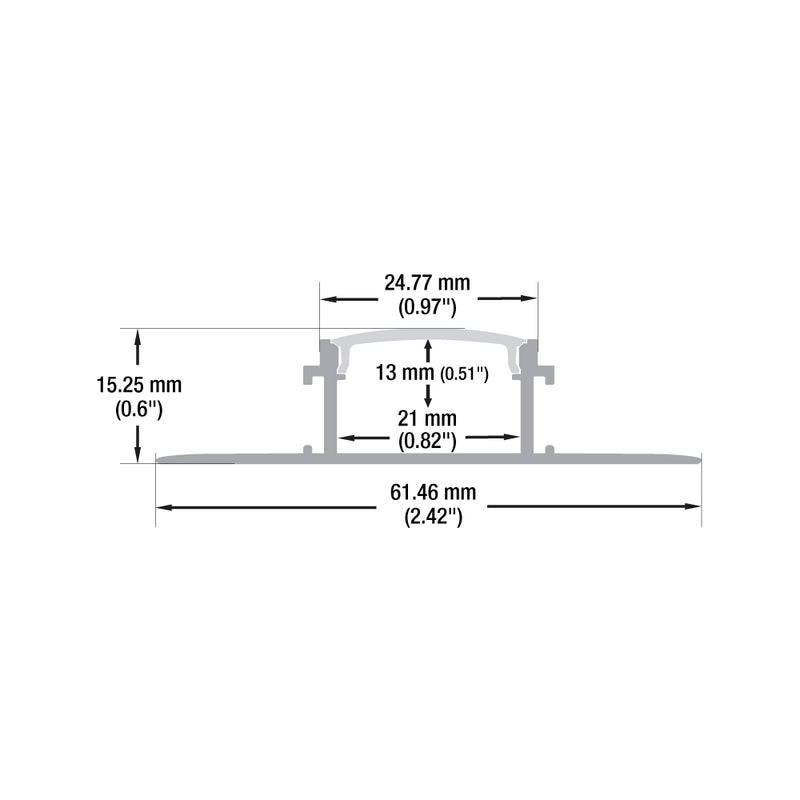

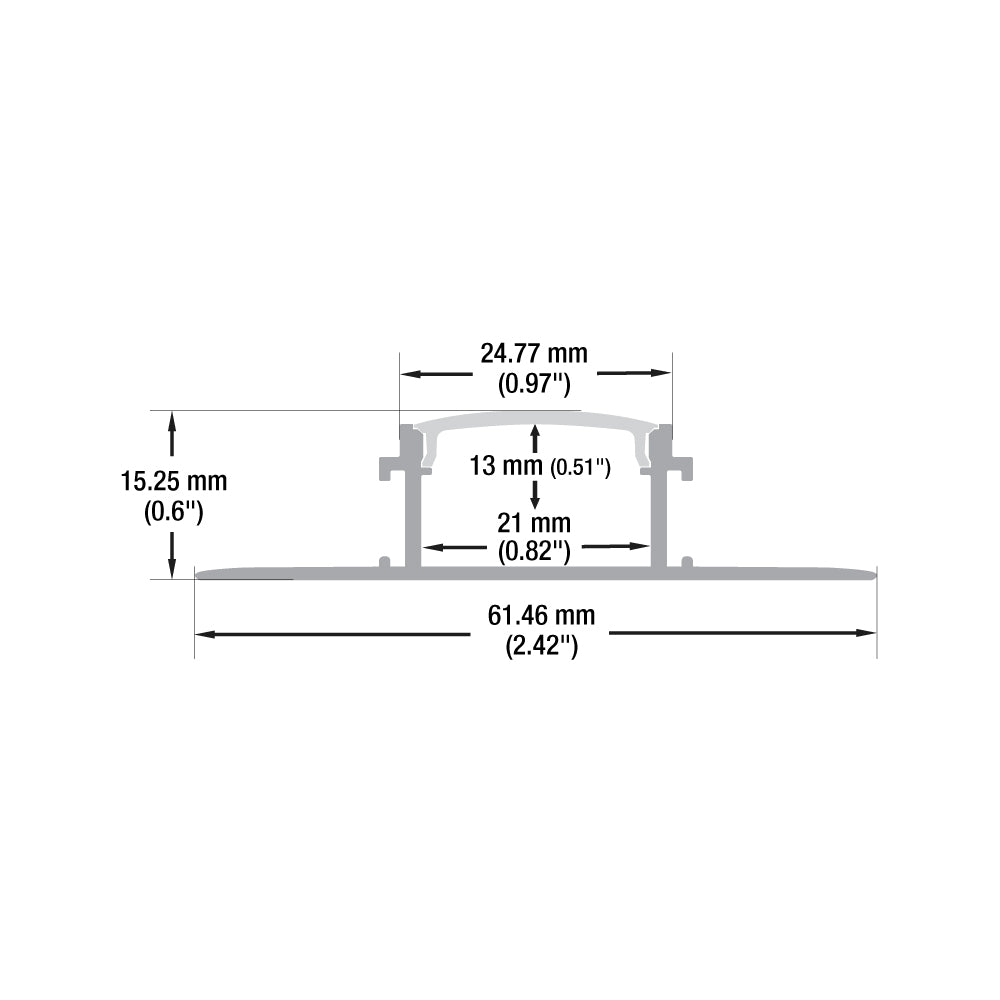

Dimensions 3000mm x 25mm x 15.25mm
(118in x 1in x 0.60in)
  • Installed in drywall using gypsum or mounting adhesive (Recessed)
Extra Accessories (Sold Separately) 1 pair Endcaps VBD-ENCH-D1 SKU:666561427085



  • It comes in 9.8 feet / 118 inches which can be cut into any custom size. We can also cut the channels and stick strip lights and pass along the right transformer.
  • It can be cut using a regular hack saw.
  • Mostly used for all kinds of indoor drywall, general contractor projects.
  • For the gypsum and plasterboard, indoor applications.
  • Several lengths can be positioned together.
  • Channel is installed in drywall using gypsum or mounting adhesive.
  • It gives a linear light from the planes of walls or ceilings without any visibility of the aluminum channel.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • With base height from the strip to the diffuser 9 mm, gives a clean and posh look without any visibility of dots.
  • Can be recessed in a groove or mounted onto the surface using double-sided tape or screw in.
  • It comes with a frosted diffuser along with the end caps with wiring holes.
  • Endcaps can be easily mounted at the end of the project.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • Aluminum material being corrosion free can be used even for outdoor purposes with waterproof strip lights (IP 66 and higher rating) and the endcaps should be sealed with silicon to avoid getting in contact with water.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
