Type 93, Trimless Aluminum Channel for Outside Corners Drywall(Plaster-In) VBD-CH-D3, 3Meters (118inches)

SKU: 666561423667

Inquiry

Description


Model Type 93 (VBD-CH-D3)
Material Aluminum
Diffuser Material Polycarbonate (PC)
Fixture color Finish Silver Grey
Package content

3 meter Aluminum channel with frosted Diffuser (lens)
1 pair of Endcaps (with and without holes)

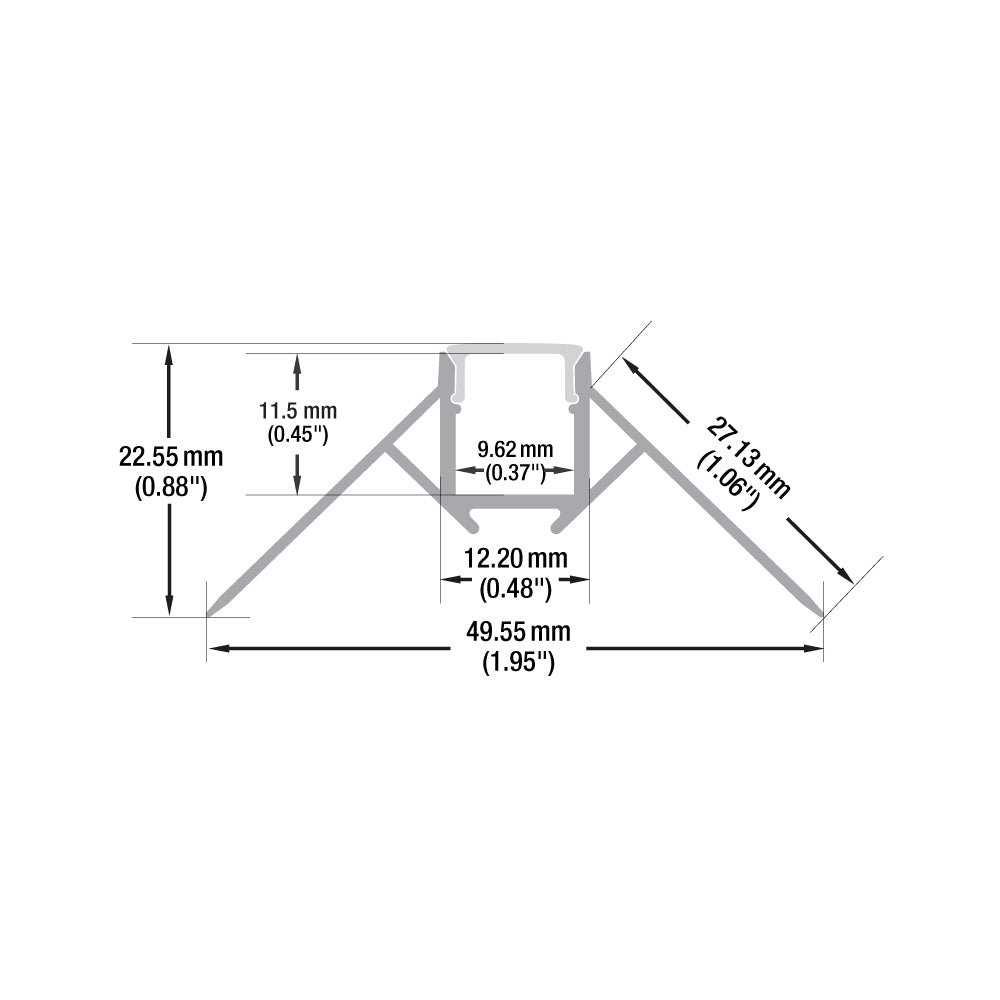

Dimensions 3000mm x 22.55mm x 12.2mm
(118in x 0.88in x 0.5in)
Mounting
  • Installed Outside Corners Drywall(Plaster-In) drywall using gypsum or mounting adhesive (Recessed)
Accessories (Sold Separately) 1 pair Endcaps VBD-ENCH-D3 SKU:666561427108




Features:

  • It comes in 9.8 feet / 118 inches which can be cut into any custom size. We can also cut the channels and stick strip lights and pass along the right transformer.
  • It can be cut using a regular hack saw.
  • Mostly used for all kinds of indoor drywall, general contractor projects.
  • Several lengths can be positioned together.
  • Channel is installed in drywall using gypsum or mounting adhesive.
  • It gives a linear light from the planes of walls or ceilings without any visibility of the aluminum channel.
  • Acts as a heat sink for the LED Strip installed in it, increasing the lifetime of  the LEDs
  • With base height from the strip to the diffuser 9 mm, gives a clean and posh look without any visibility of dots.
  • Can be recessed in a groove or mounted onto the surface using double-sided tape or screw in.
  • It comes with a frosted diffuser along with the end caps with wiring holes.
  • Endcaps can be easily mounted at the end of the project.
  • The diffuser helps in reducing light glare.
  • The diffuser gives protection from dust and avoids any kind of damage to the LEDs.
  • Aluminum material being corrosion free can be used even for outdoor purposes with waterproof strip lights (IP 66 and higher rating) and the endcaps should be sealed with silicon to avoid getting in contact with water.
  • Lightweight and environment-friendly channel.
  • For any queries, contact us and we can guide you for any of our products.
