UL-1201-1500-I LED 6 inch Dia Round Shallow Recessed In Ground Light 24V 15W 3000K(Warm White)

SKU: 666561416812

Inquiry

Description



Model UL-1201-1500-I
Operating Voltage 24V DC
Light Source 12 LEDs
Total Power Consumption 15W
Color Temperature 3000K (Warm White)
LED Type Integrated LED
Housing Material Die-cast Aluminum body
Cap Material  Stainless Steel
Beam Angle 25°
Lens Type Concave and Convex
Brightness 1200-1500 lumens
IP Rating IP67
Dimmable Yes
Product Content Uplight with a 3 ft wire, Housing, push springs

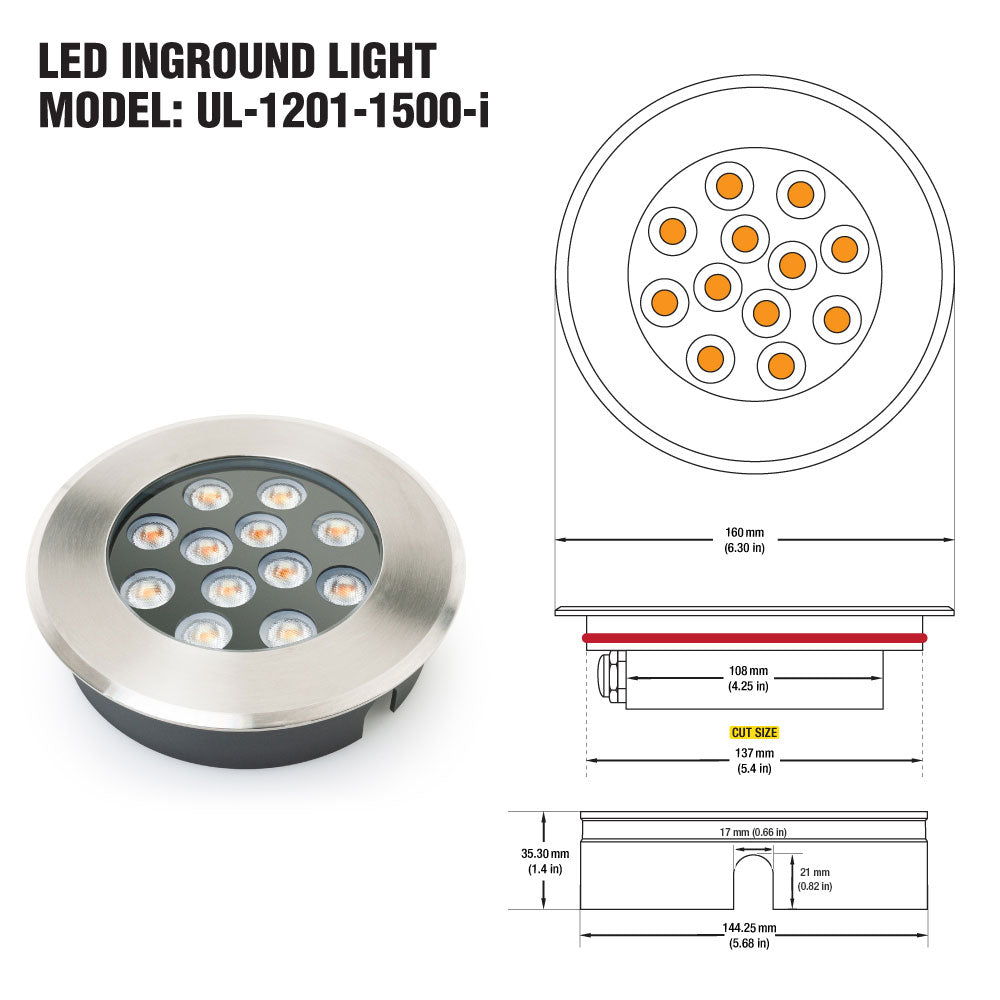

Dimensions without Housing (Engine Dimensions)

Diameter – 160 mm (6.31 inches)
Height – 32 mm (1.25 inches)
Base Diameter – 108 mm (4.25 inches)

Dimensions with Housing

Diameter – 160 mm (6.31 inches)
Height – 35.30 mm (1.4 inches)
Base Diameter – 144.25 mm (5.68 inches)

Cable Size Length: 100cm (3.2ft)
Ø 7.5mm (0.3in)
Wire Gauge:  2 x 18AWG
Certification



Features:

  • The product comes with push-in springs, making the installation process easy and convenient.
  • Customers have the option to choose the desired angle for the lights, although this can only be done in-store.
  • This high-power LED in-ground light is designed for installation in the ground, providing illumination and decoration in various outdoor settings such as gardens, theme parks, plazas, and more.
  • You can download the full specification sheet for detailed information or contact us directly for any additional details you may need.
  • Depending on the wattage of the transformer, any number of lights can be connected to a single switch, offering flexibility in installation.
  • If you require any assistance with our quality products, please don't hesitate to contact us.
  • Shipment is available, subject to location.
  • The product is backed by a 2-year store warranty for added peace of mind.
