Description

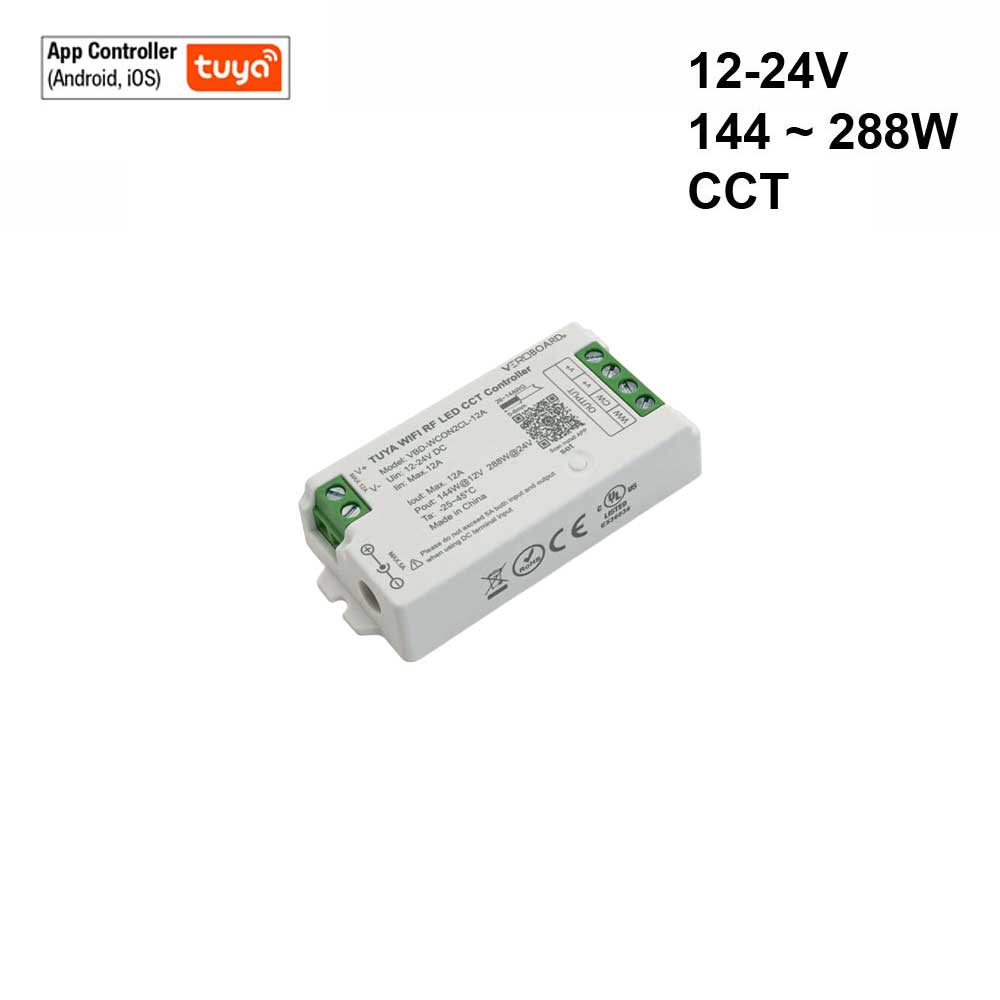

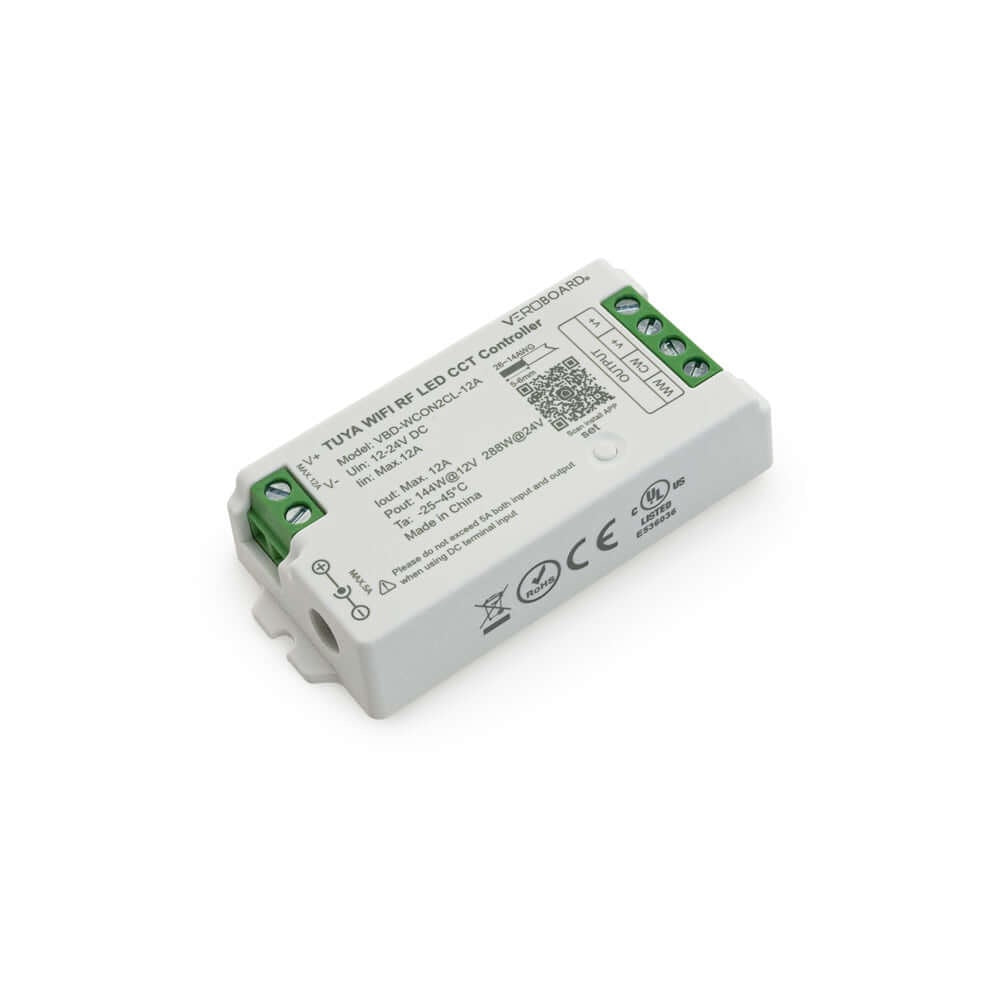

Model | CX-W01-P2-12A-CCT |
Input Voltage | 12-24V DC |
Wattage | 144W(12V), 288W(24V) |
Output Current | 6A/Port, Total 12A Max |
Color Controller | CCT |
Output Channel | 2 |
App | Tuya App or Smart Life |
IP Rated | IP20 |
Compatible Controllers | RC02RFB-DIM&CCT HYB4Z-WR |

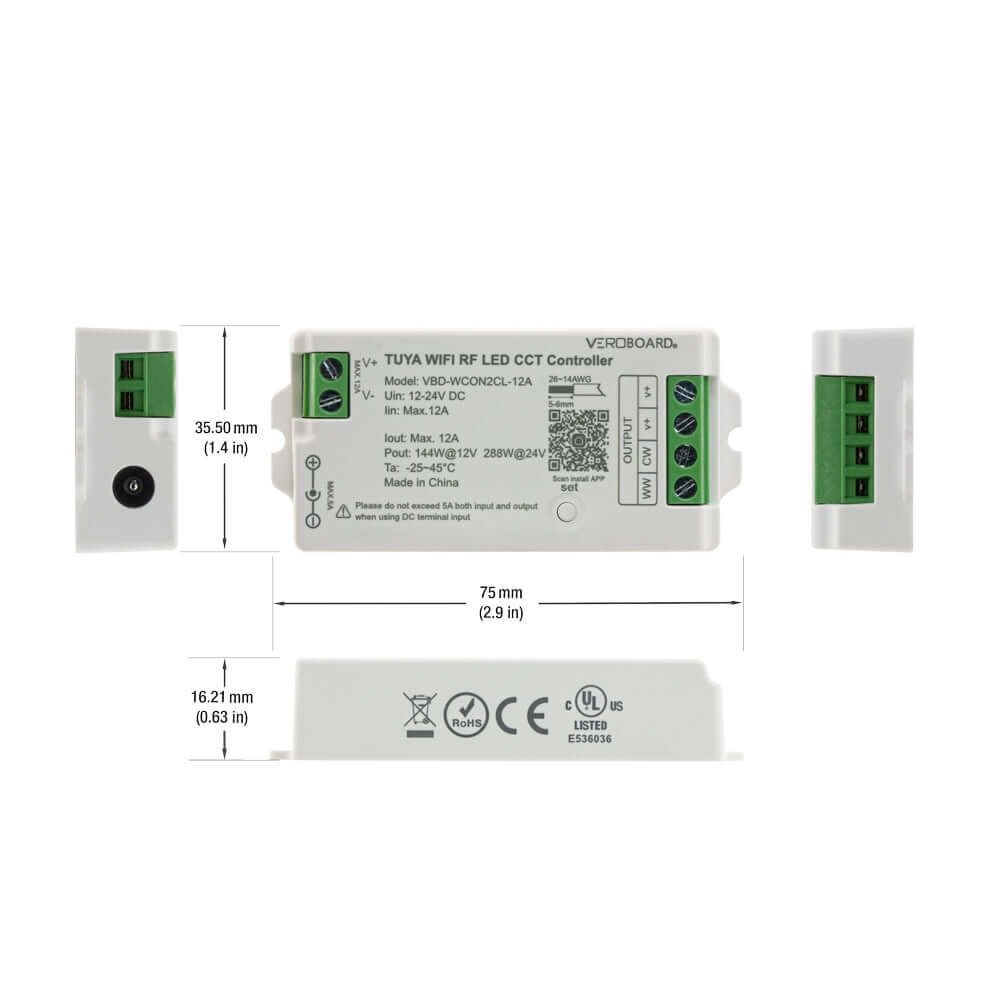

Dimensions | 75 x 36 x 16.5mm (2.9 x 1.4 x 0.6in) |
Certification | UL |
Features:
- Dual Control: Adjust lighting via RF remote or Tuya/Smart Life App.
- High Capacity: Supports up to 144W at 12V or 288W at 24V.
- Easy Installation: Simple setup for quick integration.
- Versatile Use: Ideal for both residential and commercial environments.
- Strong Output: Handles up to 12A total with 6A per port.
