Description
Product Description
| Model | VBD-012-200TR010 |
| Input Voltage | 100-277V AC |
| Input Current | 2.3A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 16.67A |
| Output Power | 200W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |

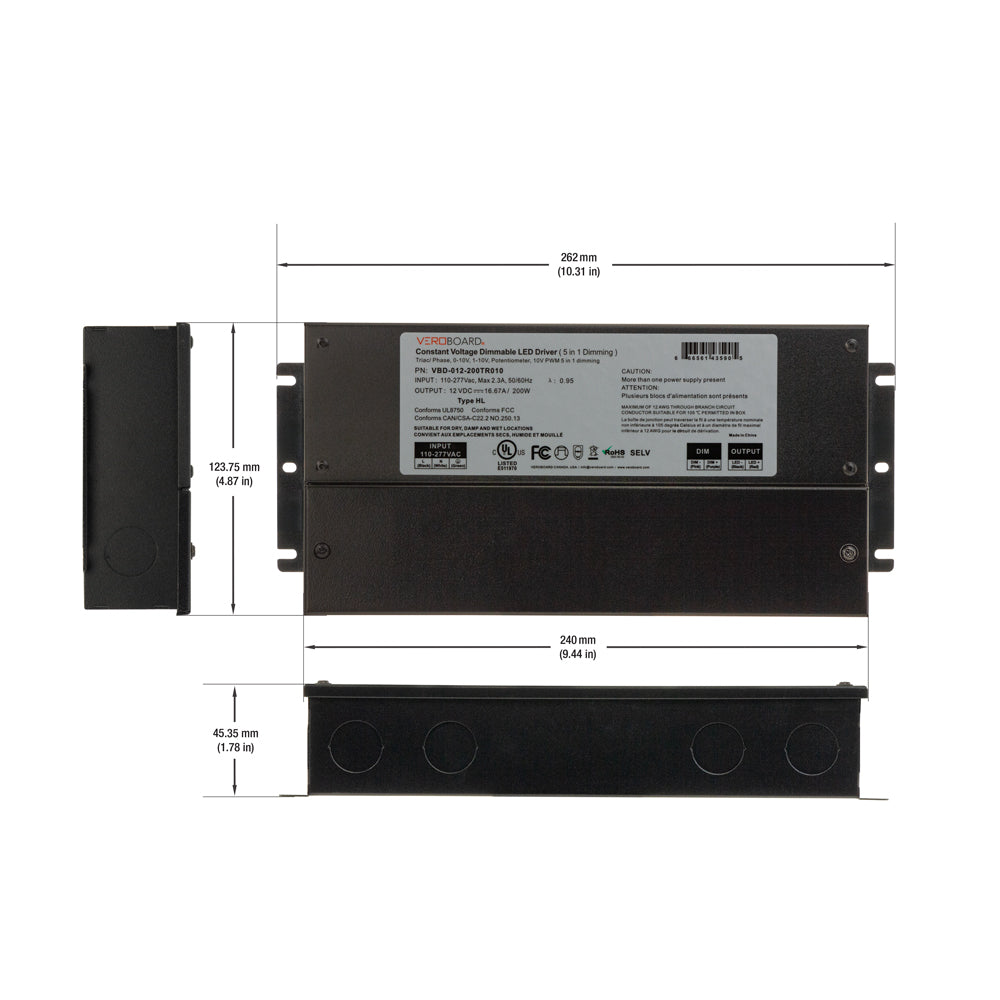

| Dimensions | 240 x 123.7 x 45.3mm (9.44 x 4.87 x 1.78in) |
| Class Certification | Type HL |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- 5-in-1 dimming LED driver with support for Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming signals
- Input voltage range of 100-277V AC, input current of 2.3A, and frequency range of 50-60 Hz
- Power factor greater than 0.95 for efficient power usage
- Dimmable driver suitable for use in dry, damp, and wet locations with IP67 rating
- Type HL certified and UL and FCC certified for safety and electromagnetic interference standards
