Description
| Model No | VBD-DR-DIM-96-24V |
| Input Voltage | 120V AC, 60Hz |
| Output Voltage | 24V DC |
| Wattage | 96W |
| Output Current | 4A |
| Class Certification | Class 2 |
| Switching | Single Pole / 3-Way |
| IP Rated | IP20 |
| Dimming | 100% - 0.3% Load Sensing Auto-trim |

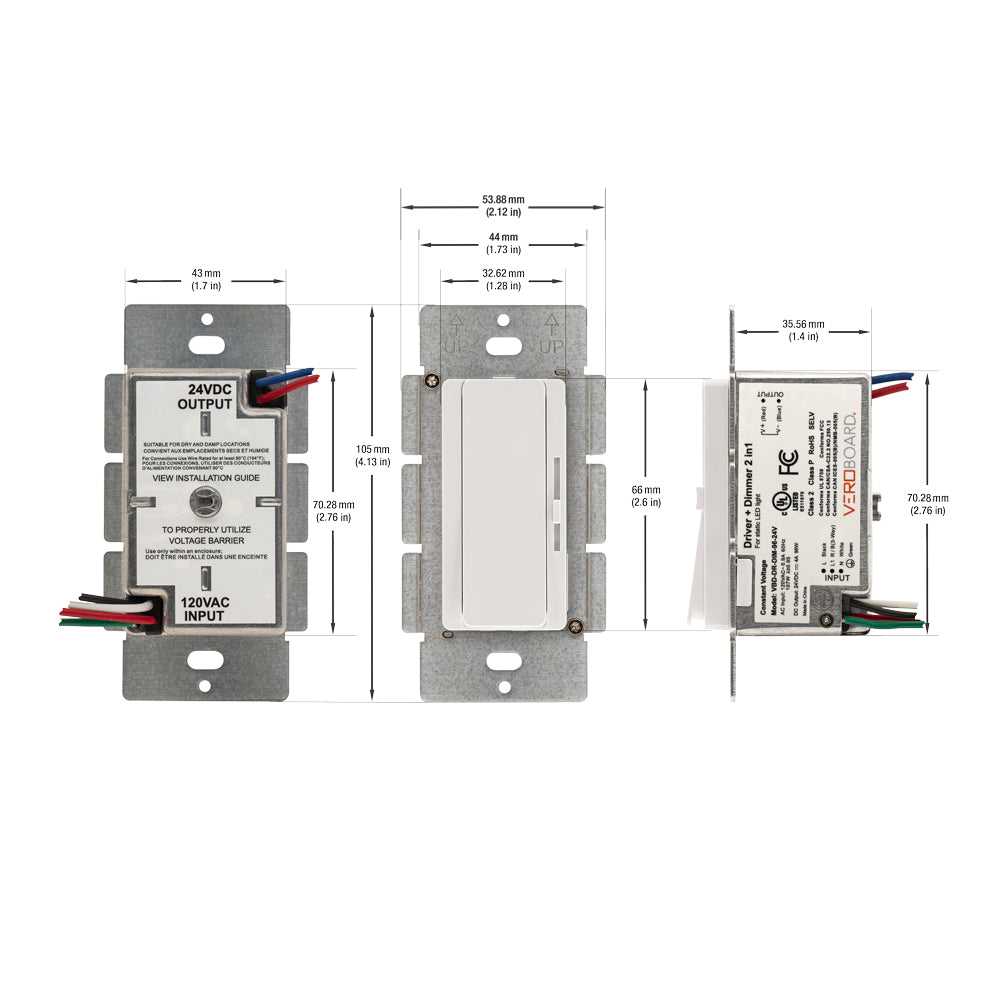

| Dimensions | 105 x 53.8 x 35.56 mm (4.1 x 2.1 x 1.4 in) |
| Certification |  |
Feature:

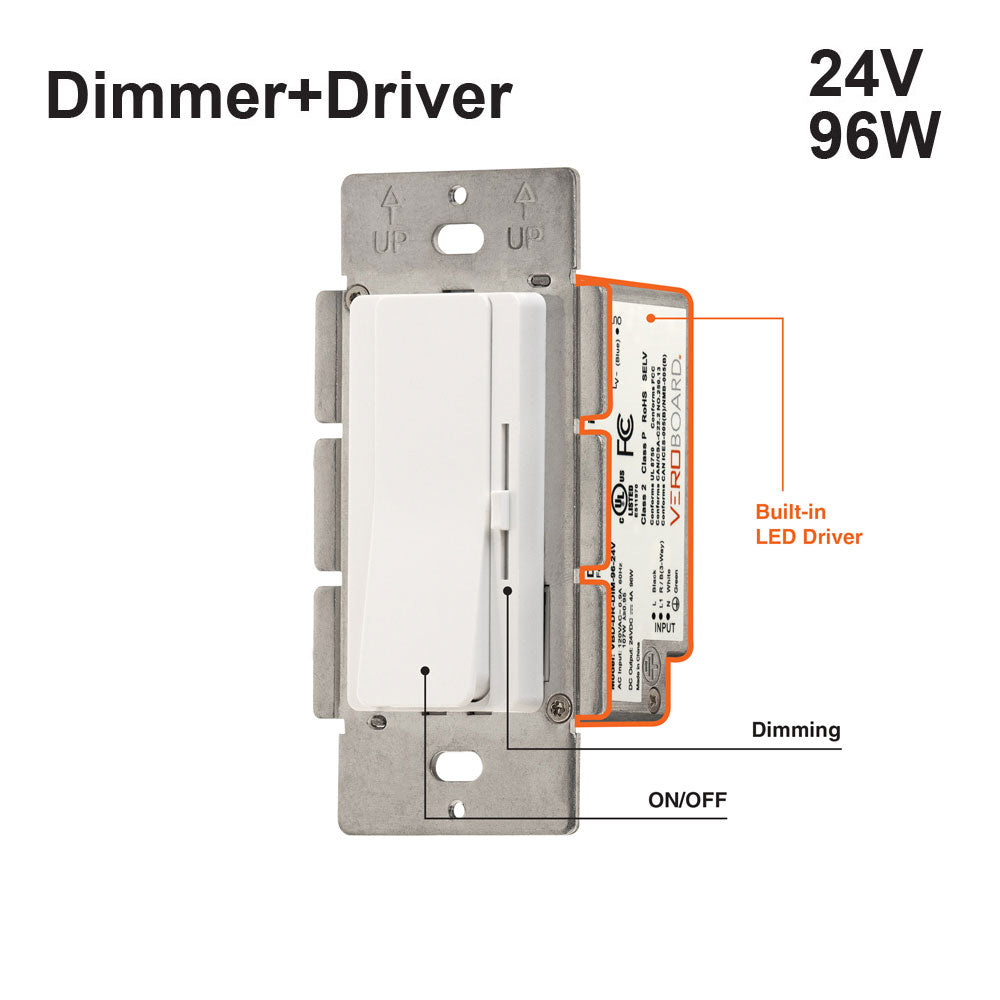

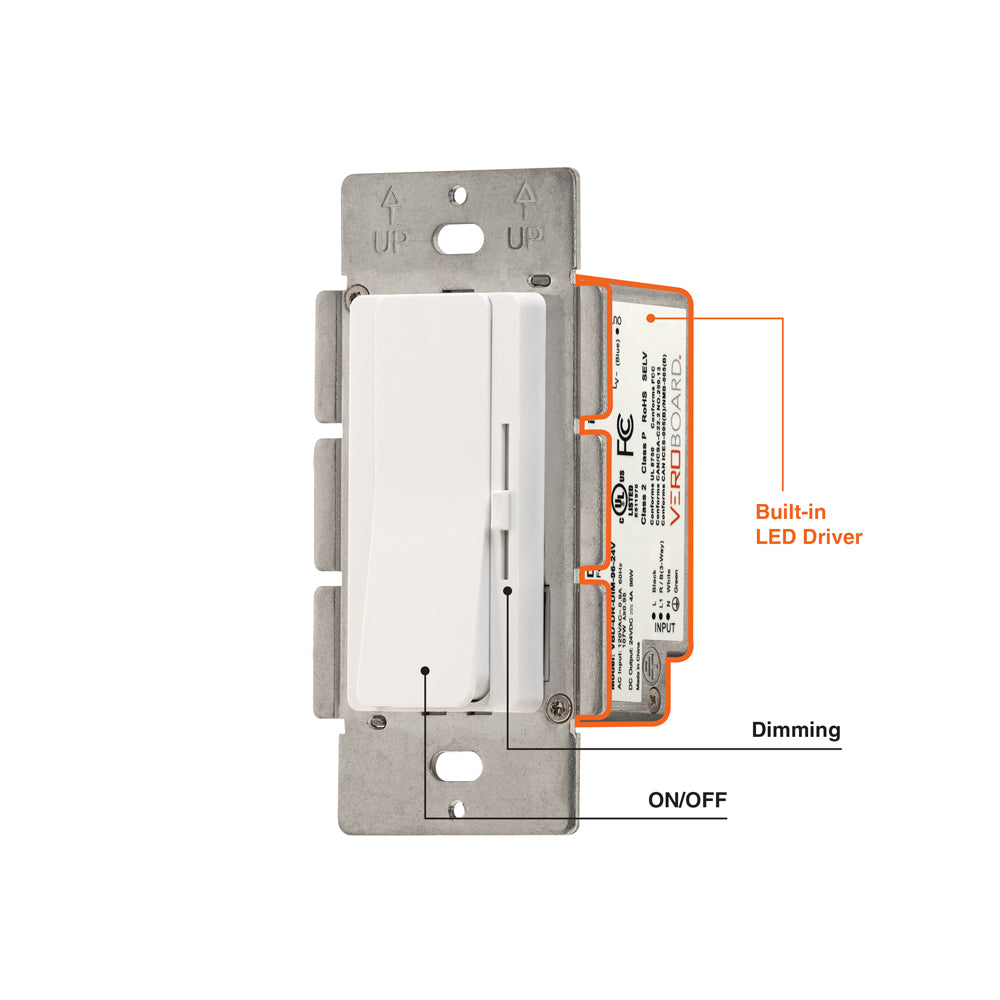

- 2-in-1 Design: Combines a constant voltage LED driver and integrated dimmer in a single compact unit, simplifying installation.
- For 24V LED Systems: Delivers up to 96W (4A) with stable 24V DC output from a 120V AC input (60Hz).
- Flexible Switching: Compatible with both single-pole and 3-way wall switch setups.
- Smooth Dimming: Provides flicker-free dimming from 100% down to 0.3%.
- Auto-Trim Feature: Load-sensing technology adjusts output based on connected load for optimal performance.
- Indoor Use & Certified: IP20 rated for dry locations; UL, FCC, and RoHS certified for safety and compliance.
-
Ideal Applications: Perfect for LED strip lights, under-cabinet lighting, and space-constrained installations.
