Description
Package Model: VBUN-25-12-W3K-X3P
| Product | Under Cabinet Lights |
| Voltage | 12V DC |
| Wattage | 2.5W (each light) |
| LED Type | 3 x 5730 SMD |
| Trim color | White |
| Luminous Flux | 200-240 Lumens |
| Beam Angle | 120° |
| Color Temperature |
3000K (Warm White) |
| Material | Aluminum |
| IP Rating | IP20 (Dry and Damp Locations) |
| Rendering Index | CRI>90 |
| Dimmable | Yes |
| Wire length | 39 inches (1 meter) |
| Installation Type | Both Flush Mount/ Recessed and Surface Mount Installation |

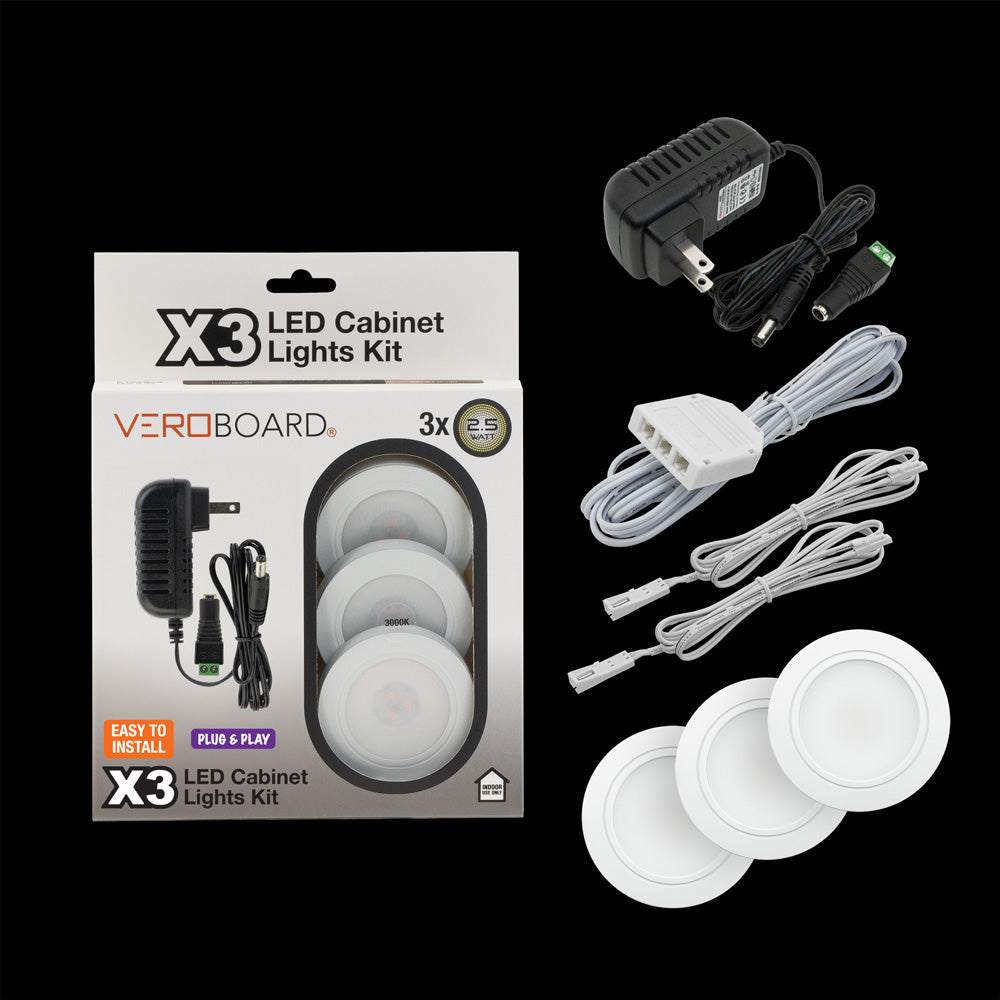

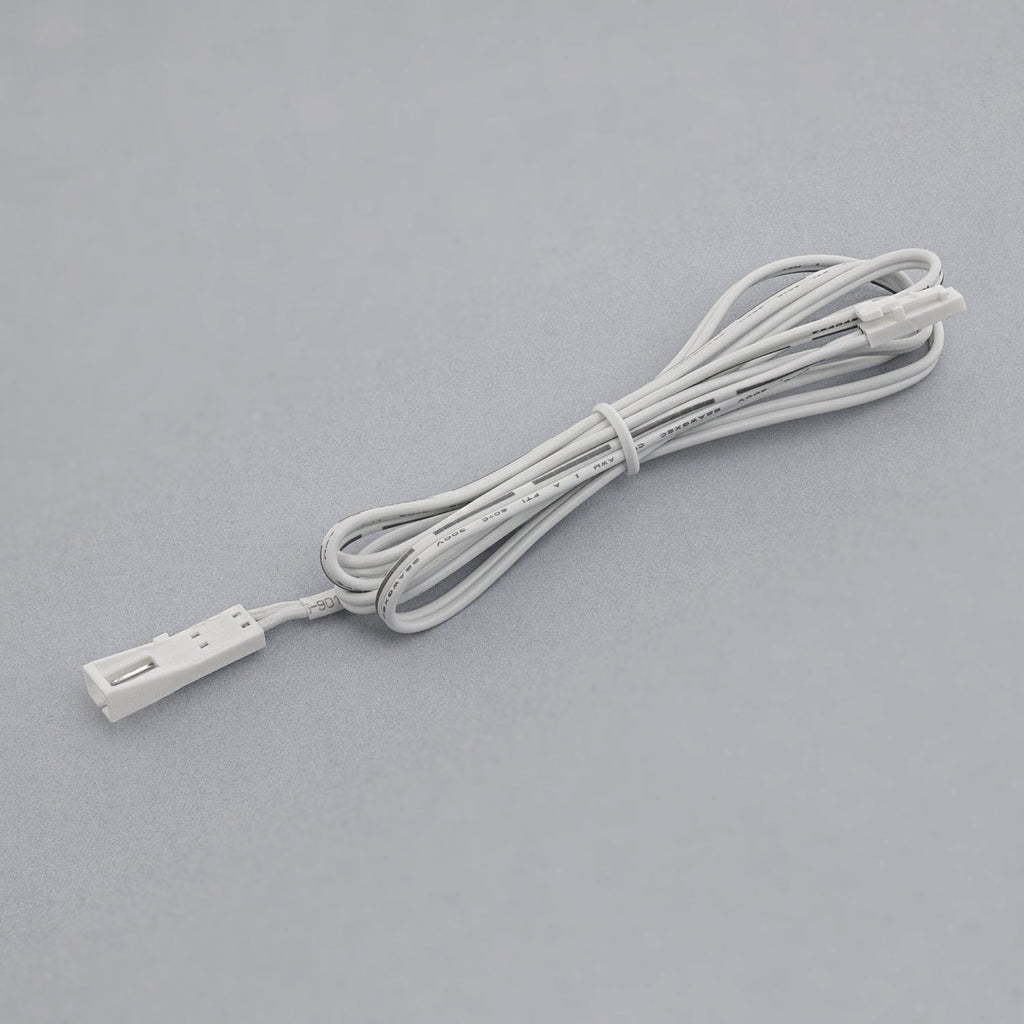

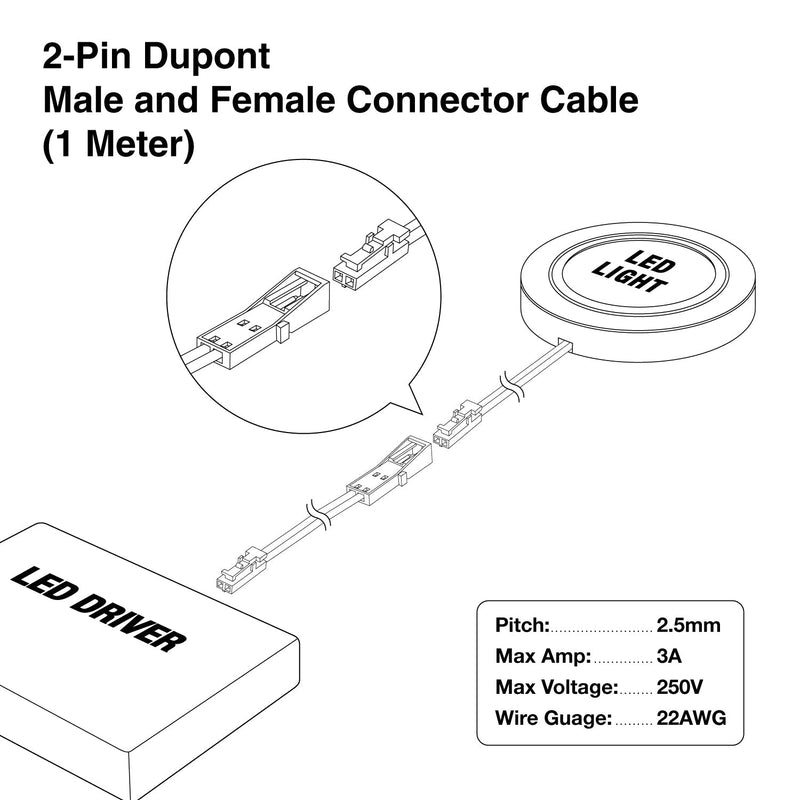

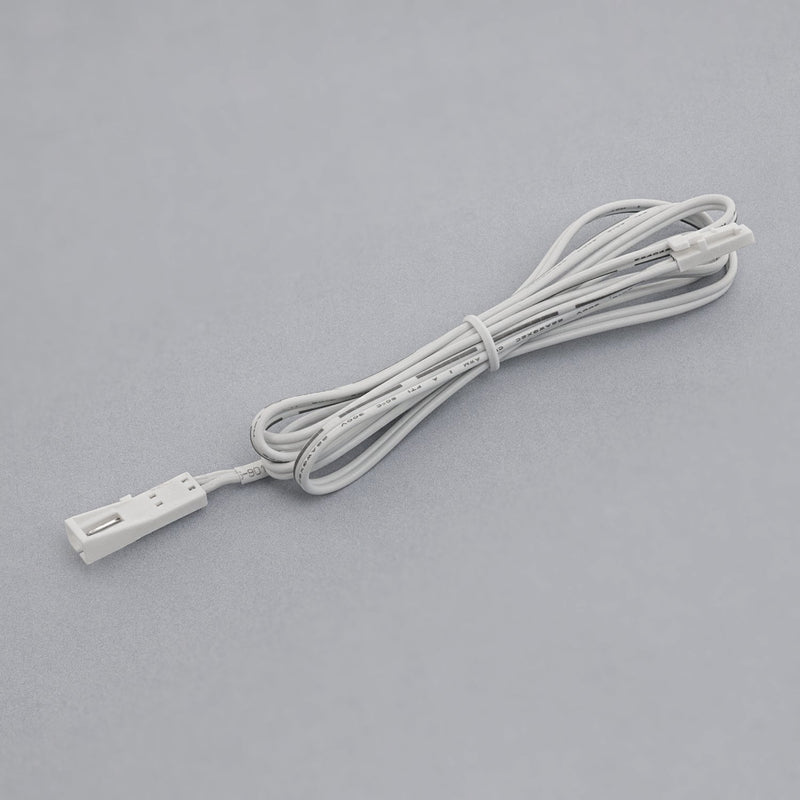

| Package Content | Three round Cabinet Lights One 12V DC Multiple output CV Non-Dimmable LED Driver Two 2-pin Dupont Male and Female Extension/Connector Cable One 3-way Distributor Terminal |

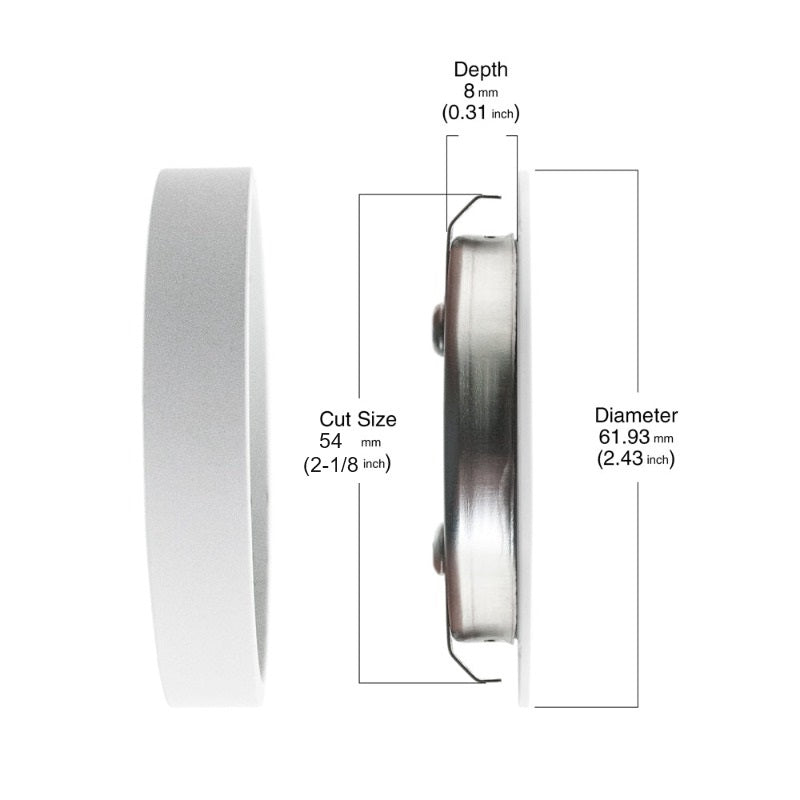

| Dimensions | 62 mm (2.43 in) Dia x 8 mm (0.31 in) Depth |
| Cut Size | 54 mm (2-1/8 inch) |
| Certification |  |
| Product | LED Driver |
| Input Voltage | 100-240V AC |
| Input Current | 0.5A |
| Frequently | 47/63 Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 1.0A |
| Output Power | 12W |
| Installation Type | Plug-In |
| IP Rating | IP20 (Dry and Damp Locations) |
| Class Certification | Class II |
| Dimmable | No |

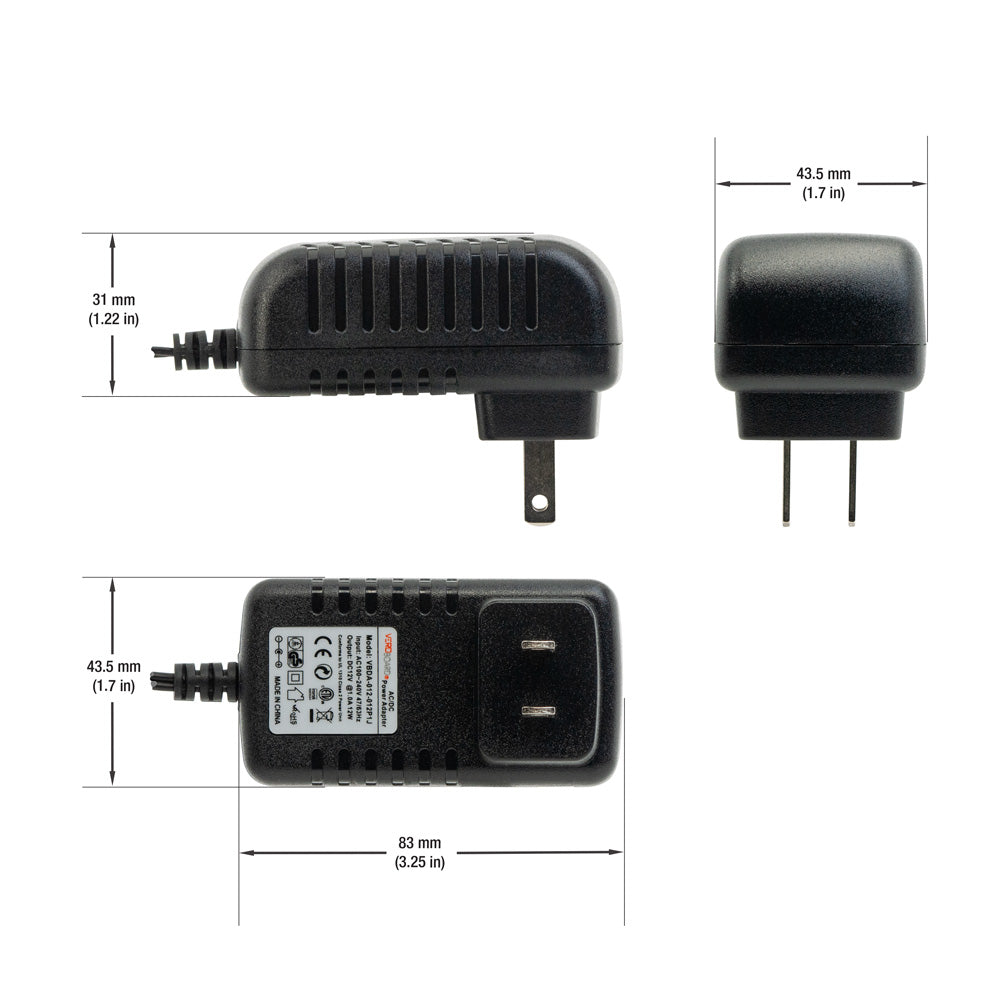

| Dimensions | 120 x 34 x 34mm (4.7 x 1.3 x 1.3in) |
| Certification |

|
Features:
- Type of cabinet lighting or cabinet puck lights suitable for modern kitchen cabinets, wardrobes, and shelves
- Voltage of 12V DC and wattage of 2.5W, with 3 x 5730 SMD LEDs
- Aluminum housing allows for efficient heat dissipation, with a long lifespan and low light decay
- Can be used as both flush mount and surface mount, with a rated CRI >90 and meeting Canadian and United States standards with UL STD. C22.2
- IP20 rating makes them suitable for dry and damp locations

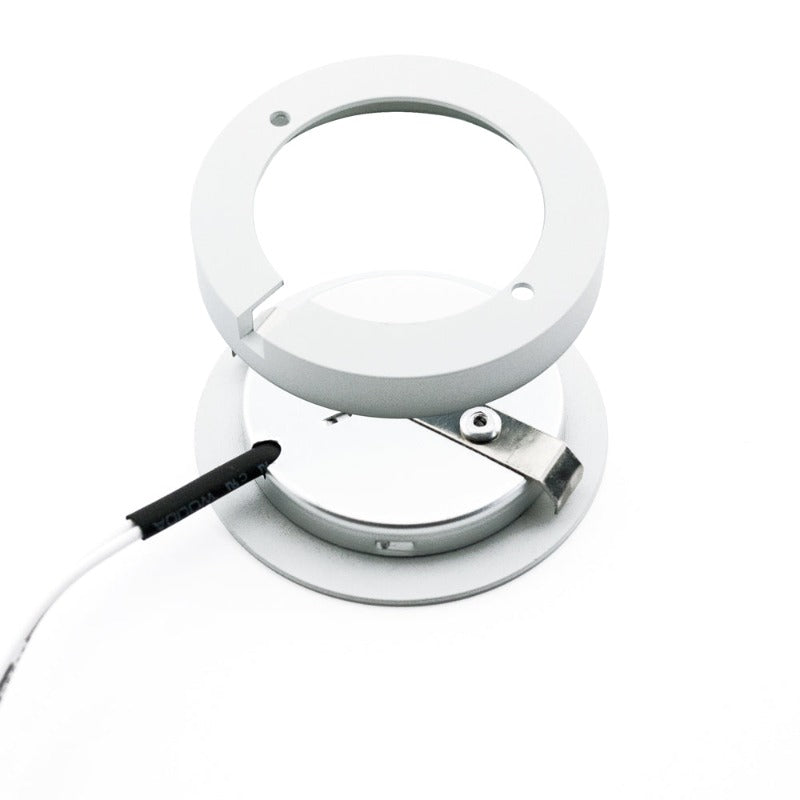

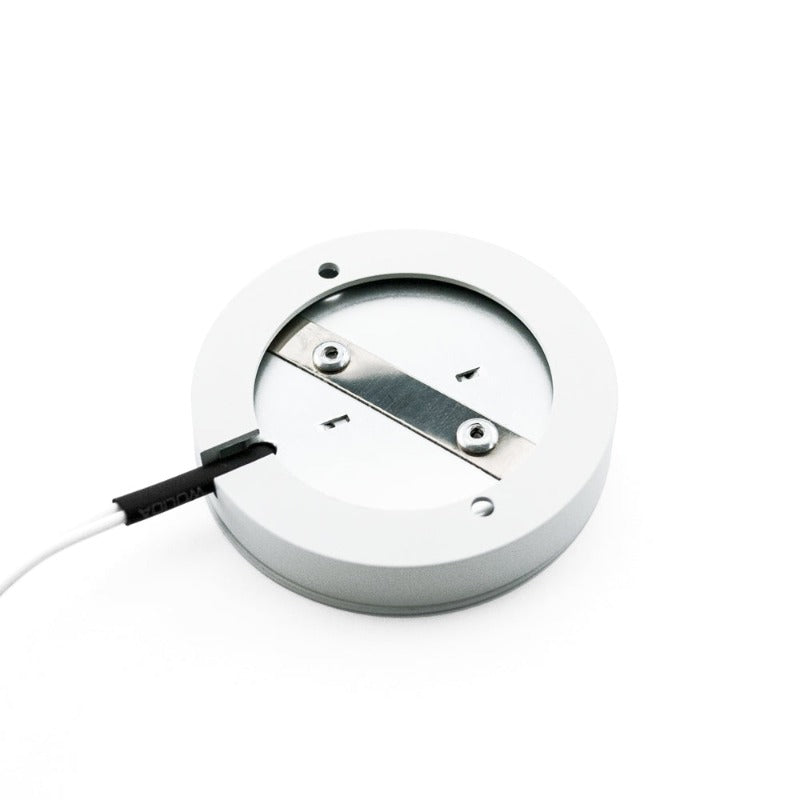

- Easy to install with push springs for flush mount and direct screw-on surface mounting options
- Great replacement for halogen light fixtures, with a cut size of 54 mm (2 1/8 inch), providing high-quality lighting for cabinets and shelves
