Description
Product Description

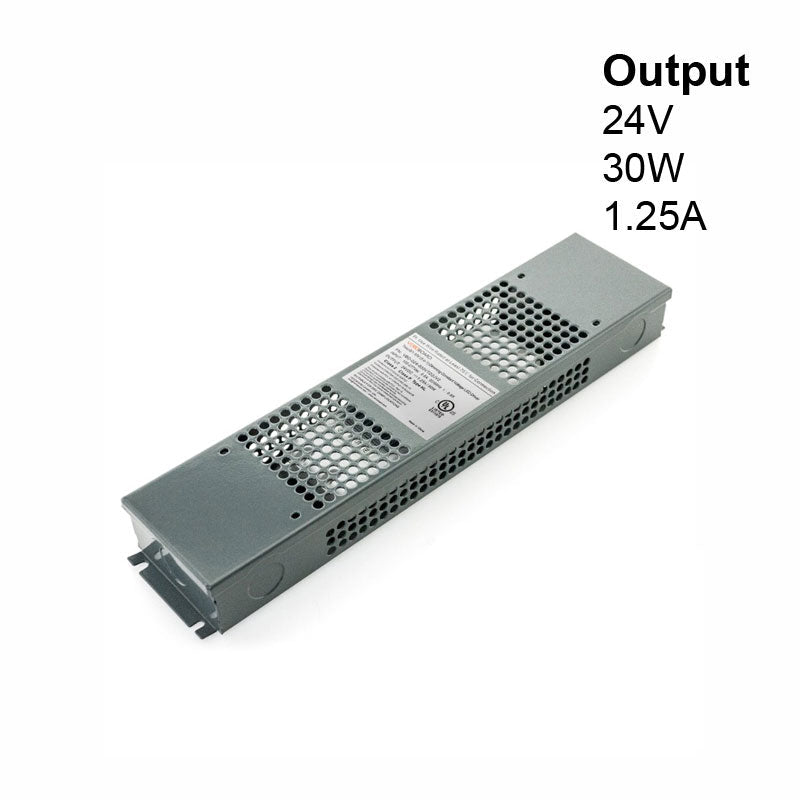

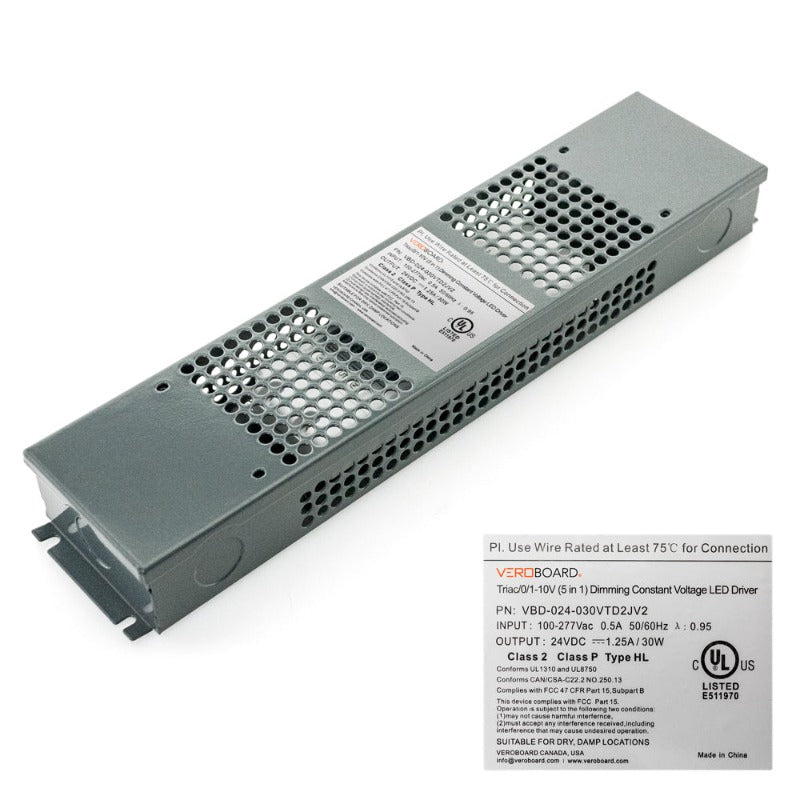

| Model | VBD-024-030VTD2JV2 |
| Input Voltage | 100-277V AC |
| Input Current | 0.5A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Output voltage | 24V DC |
| Output regulated current | 1.25A |
| Output max Power | 30W max |
| Dimmable | Yes (Triac/0/10V Dimming) |
| Class Certification | Class 2/ Class P/ Type HL/ Class II |
| IP Rating: | IP20 |

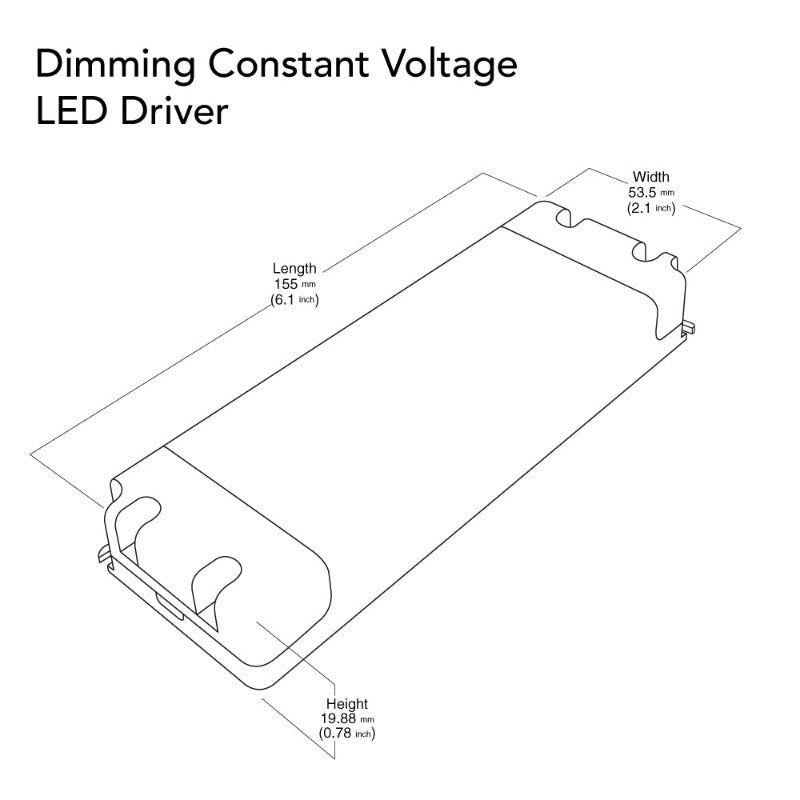

| Dimensions (Without Box) | 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in) |

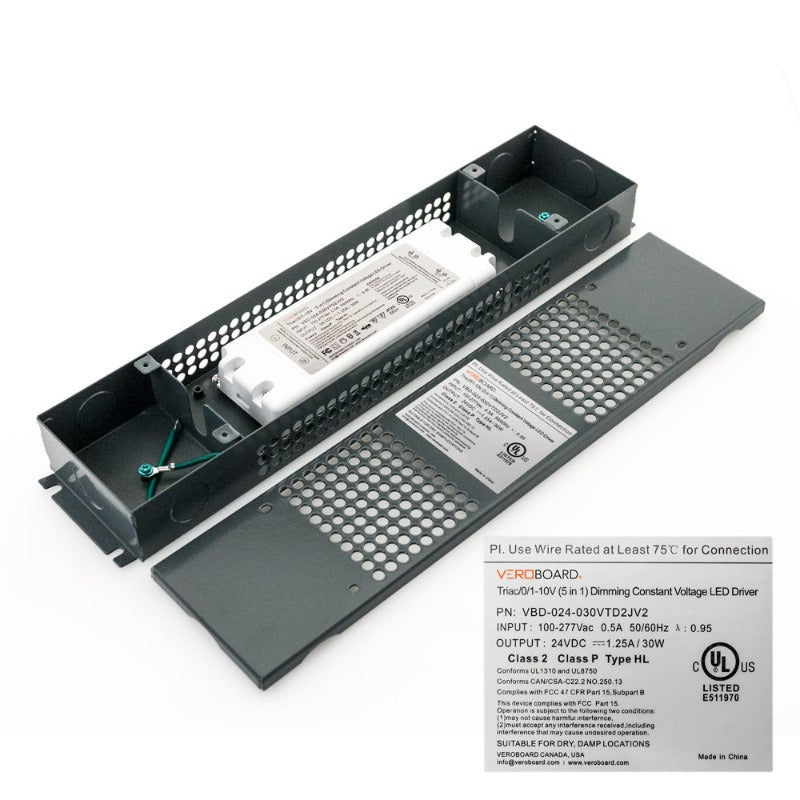

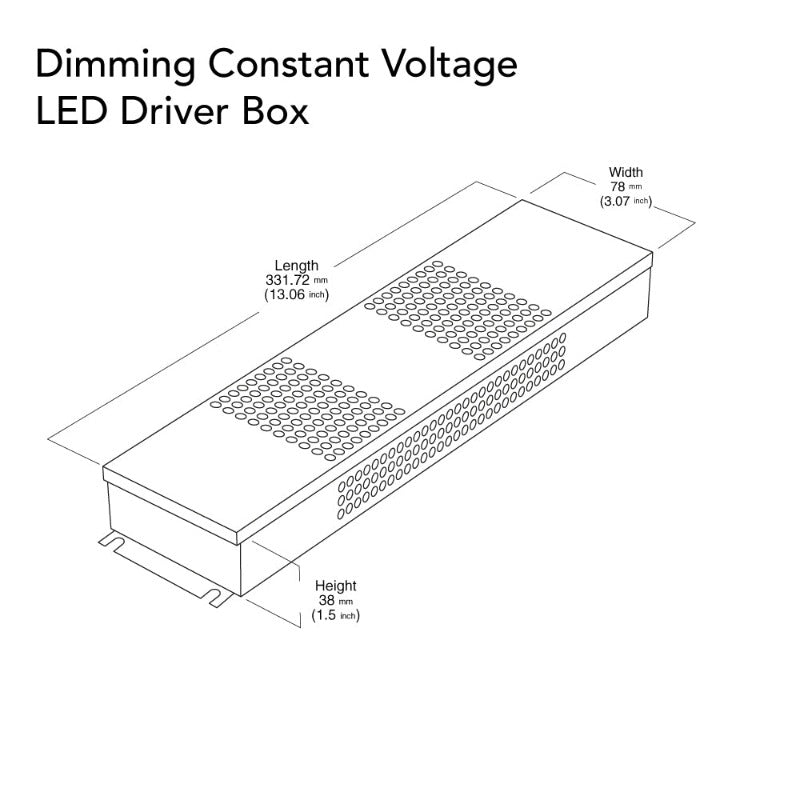

| Dimensions (Box) | 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in) |
| Certifications |    |
| Suitable for DRY and DAMP locations |
| Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers |
Features:
- Triac/0-10V dimmable constant voltage LED driver
- Input voltage range: 100-277V AC, output voltage: 24V DC, regulated output current: 1.25A, maximum output power: 30W
- 5-in-1 dimming compatibility with Triac, ELV, 0-10V, PWM, and resistor control
- High power factor of 0.95 for efficient power conversion
- Class 2, Class P, Type HL, and Class II certifications for electrical insulation, fire safety, and hazardous location installations
- IP20 rating for indoor use only
- Dimensions without box: 155 x 53.5 x 19.88mm (6.1 x 2.1 x 0.78 in), with box: 331.72 x 78 x 38mm (13.06 x 3.07 x 1.5 in)
- UL and FCC certified for safety and performance standards
