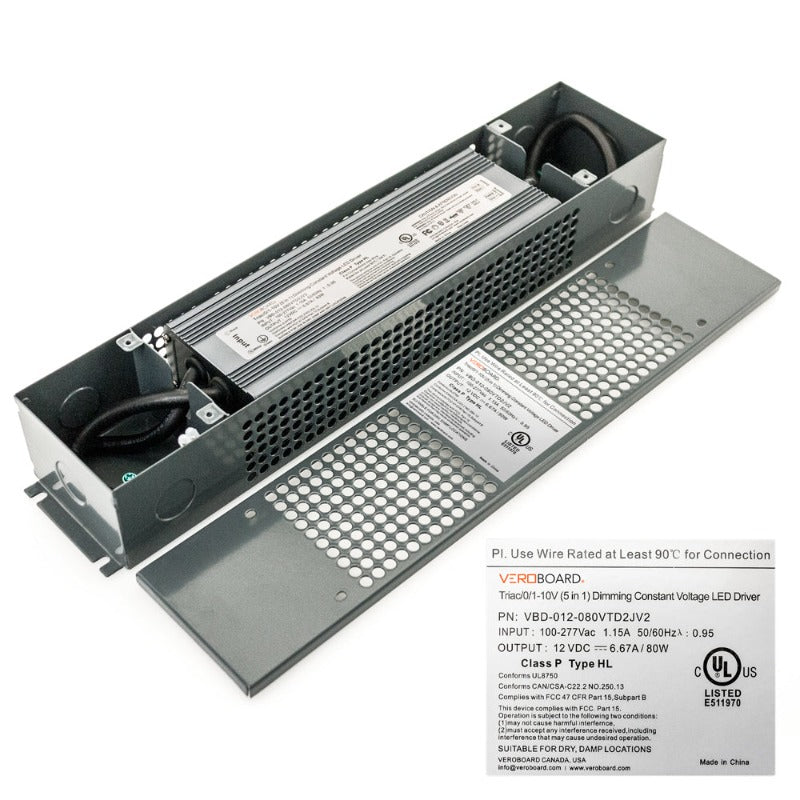

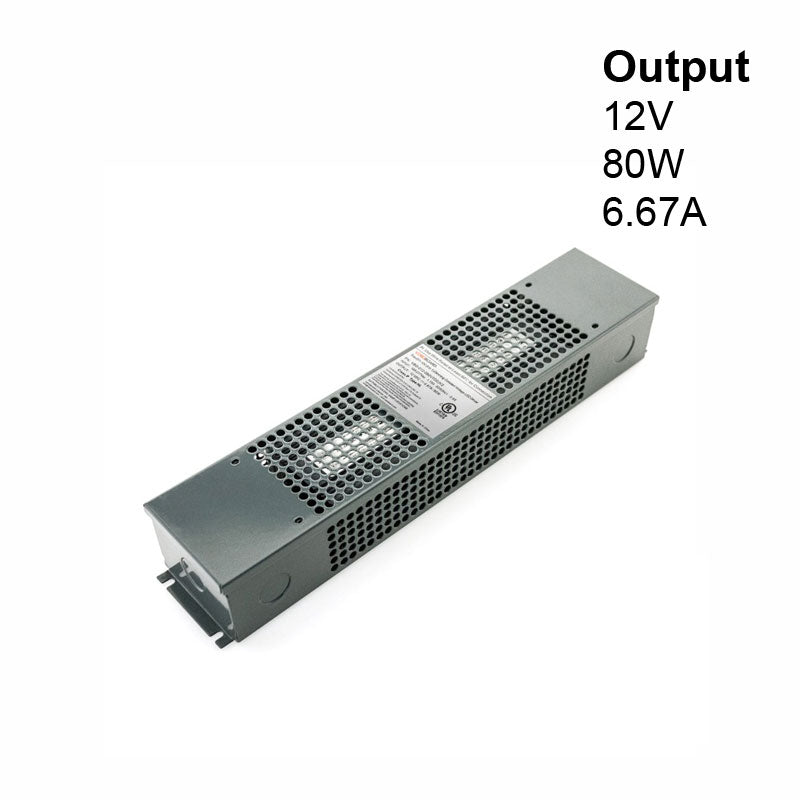

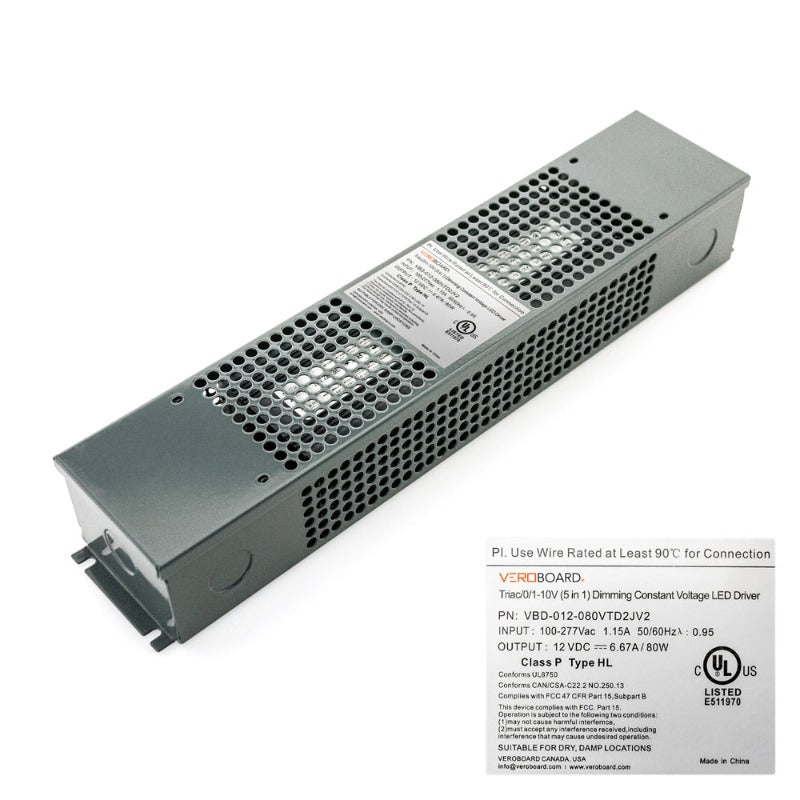

VBD-012-080VTD2JV2 Triac/0-10V Dimmable LED Driver, 12V 80W 100-277V AC

SKU: 666561419233



Model VBD-012-080VTD2JV2
Input Voltage 100-277V AC
Input Current 1.15A
Frequency 50/60 Hz
Power Factor 0.95
Output voltage 12V DC
Output regulated current 6.67A
Output Power 80W max
Dimmable Yes (5 in 1 dimming)
Class Certification Class 2/ Class P/ Type HL/SELV
IP Rating IP67 (Outdoor Rated)

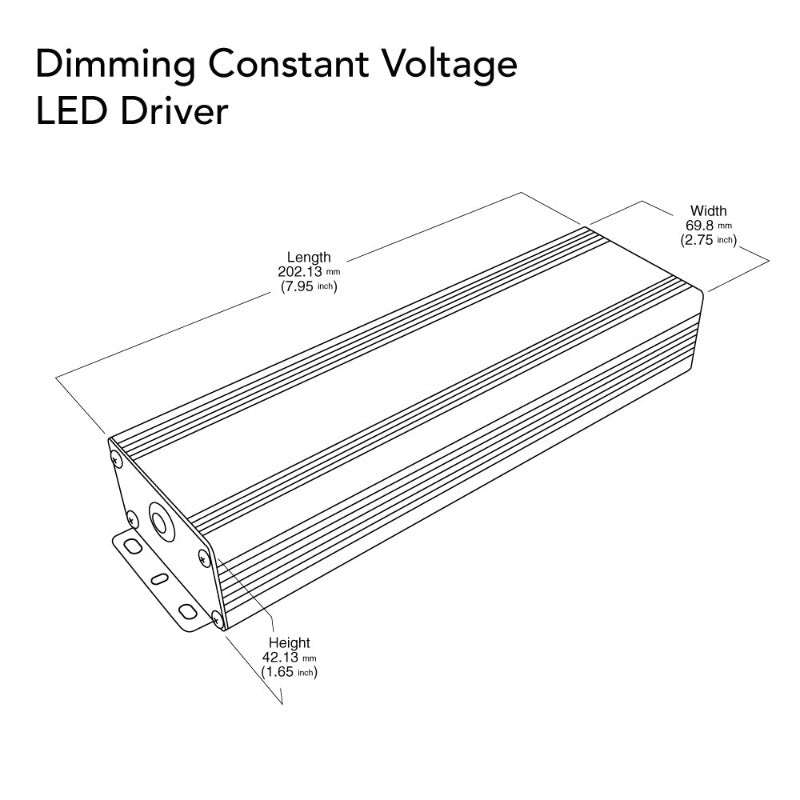

Dimensions (Without Box) 202.13 x 69.8 x 42.13mm (7.95 x 2.75 x 1.65 in)

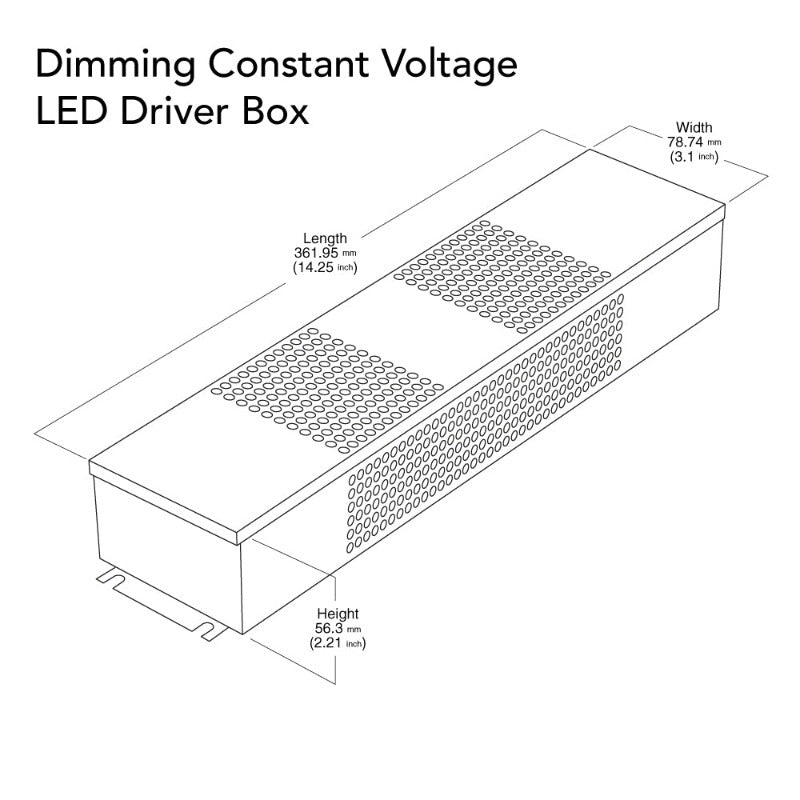

Dimensions (Box) 361.95 x 78.74 x 56.3mm (14.25 x 3.1 x 2.21 in)
Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers
Suitable for Dry, Damp, and Wet locations.
