Description
| Model | RL-STEP-02 |
| Voltage | 12V-24V DC |
| Wattage | Each Step<15W - Total<240W |
| Connection Mode | RF remote |
| Material | Plastic |
| Color | White |
| Applicable Lights | For single color strip |
| Function | Adjust Mode Brightness Delay Time Speed |
| Package Contents |
1 - 16 Steps Stair light controller 1 - Remote Control |
| Wire Length | 1 x 500cm (16.4ft) (Connector) 2 x 100cm (3.2ft) (Sensors Wire) 24AWG |

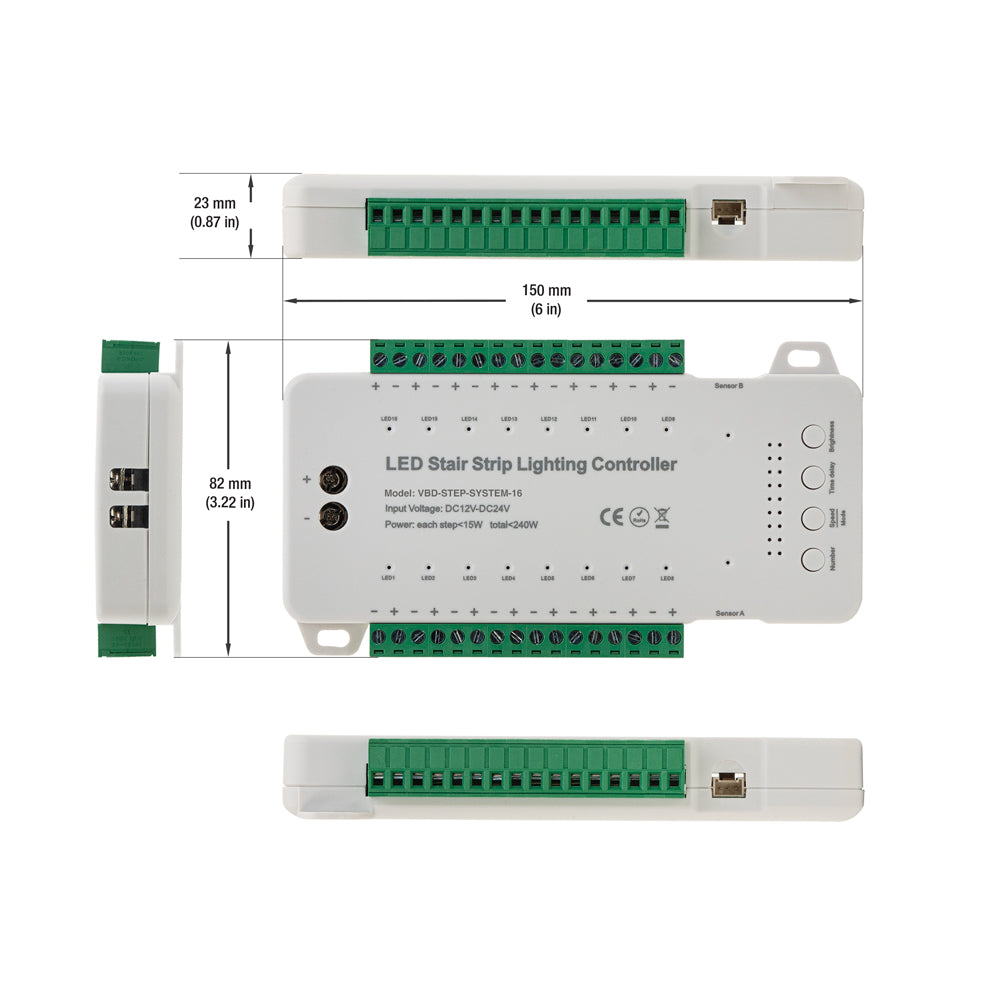

| Dimensions | 150 x 82 x 22mm (4.9 x 2.6 x 0.7in) |
| Remote Control Dimensions | 131.25 x 46 x 13mm (5.1 x 1.8 x 0.5in) |

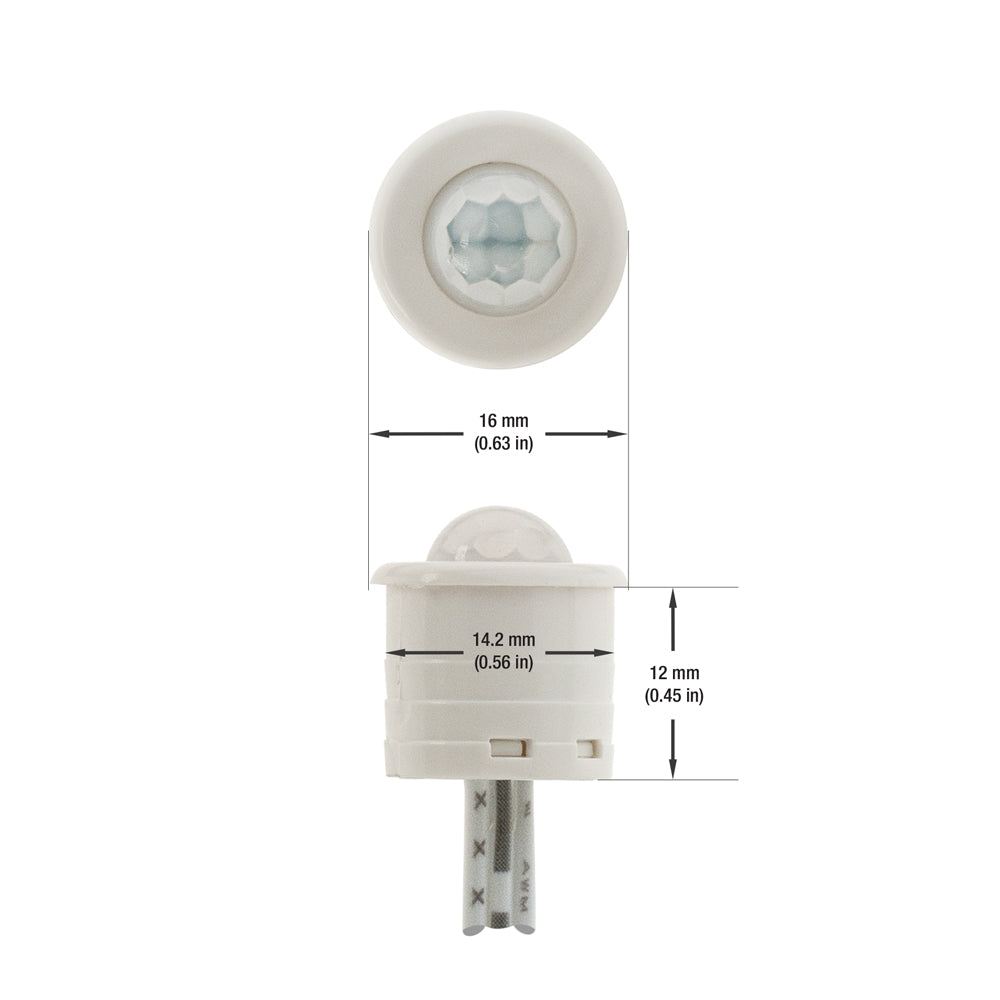

| PIR Sensor Dimensions | Outer Trim - Ø16mm (0.6in) Cut size - Ø14mm (0.5in) Depth - 12mm (0.47in) |
| Certification |
 |
Features:
- Voltage Compatibility: Works with 12V-24V DC, suitable for various LED strip lighting setups.
- Energy Efficiency: Each step consumes less than 15W, with a total capacity of up to 240W, saving energy.
- RF Remote Control: Utilizes RF remote technology for easy customization of lighting preferences.
- Durable Build: Made from sturdy plastic for long-lasting performance in various environments.
- Adjustable Settings: Offers adjustable brightness, delay time, and speed for creating the ideal lighting atmosphere.
- Dual PIR Motion Sensors: Automatically activates LED strips when motion is detected, enhancing safety and energy efficiency.
- Compact Design: Measuring 150 x 82 x 22mm, it seamlessly integrates into staircases for unobtrusive lighting control.
