Description
| Model | STEP-SYSTEM-28 |
| Voltage | 12V-24V DC |
| Wattage | Each Step<15W - Total<420W |
| Connection Mode | RF remote |
| Material | Plastic |
| Color | White |
| Function | Adjust Mode Brightness Delay Time Speed |
| PIR Sensor Wire Length | 2 x 5m (16.4ft) (Connector) 2 x 1m (3.2ft) (Sensors Wire) 24AWG |

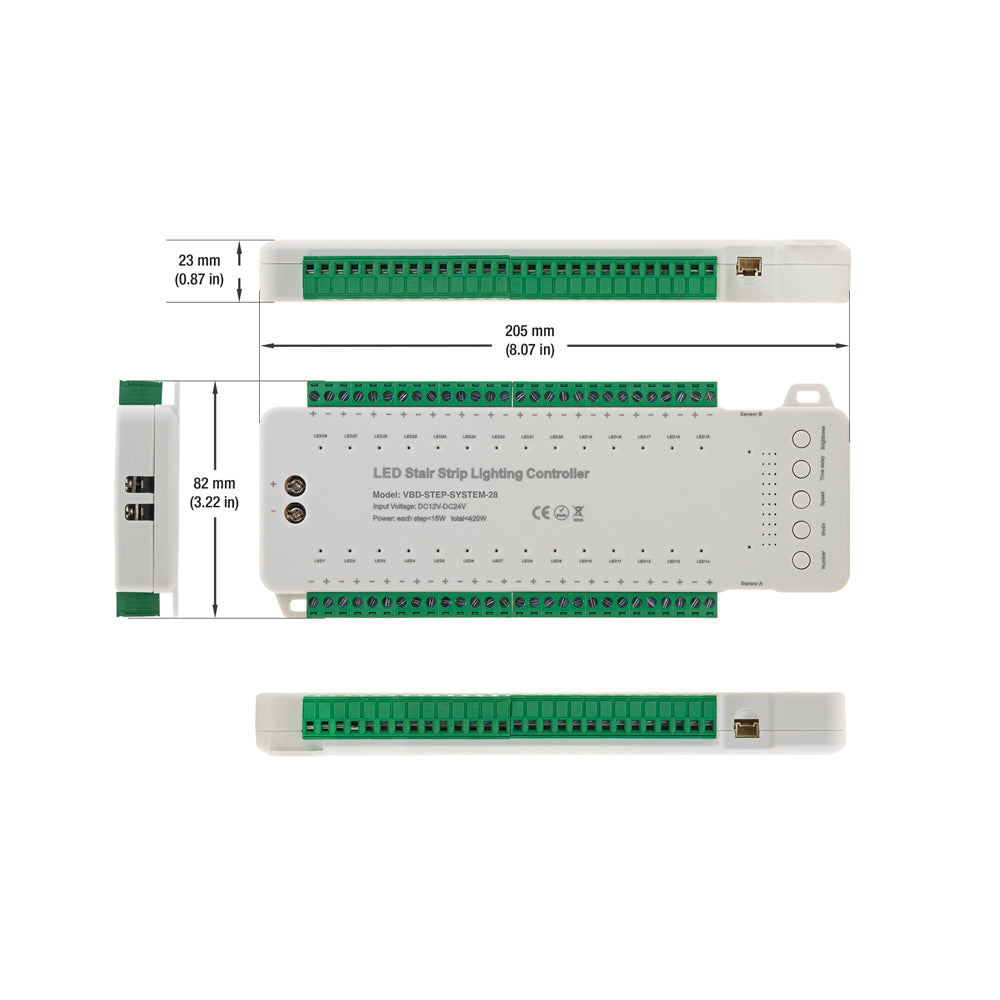

| Controller Dimensions | 250 x 83 x 22mm (9.8 x 3.2 x 0.8in) |

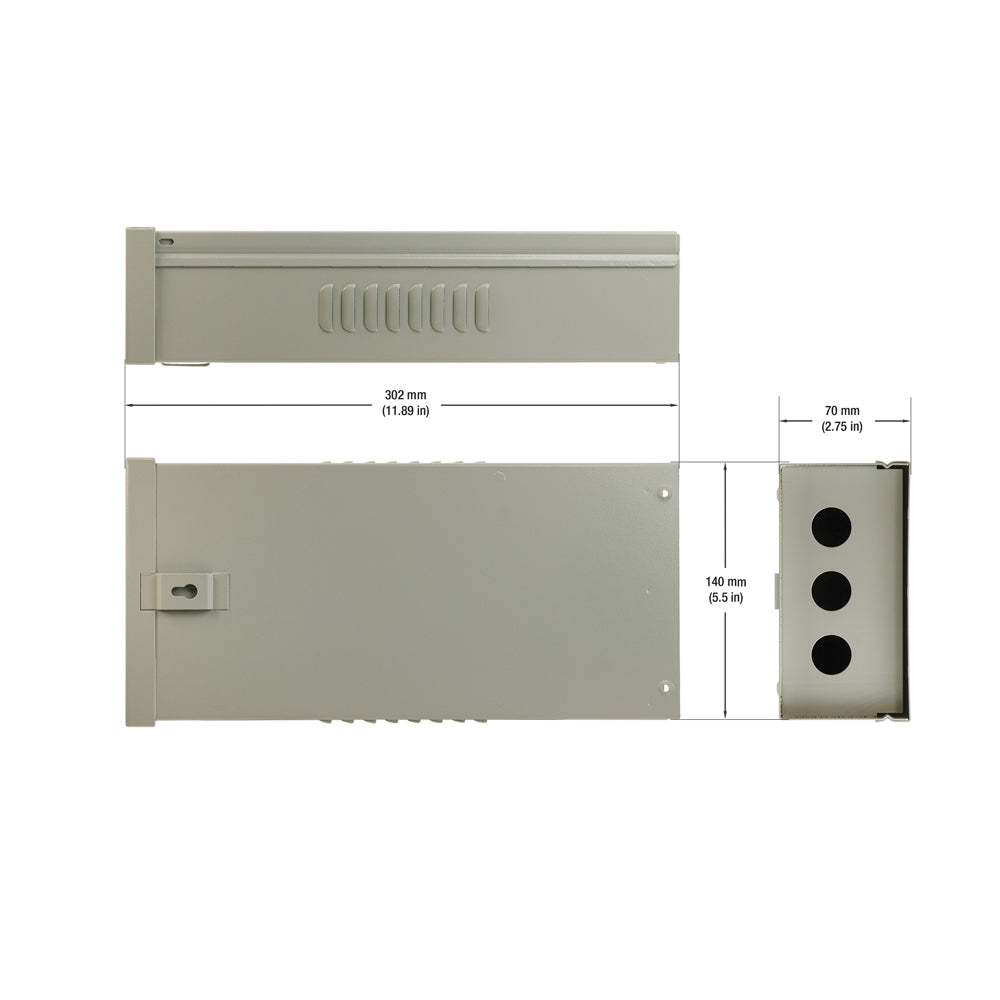

| Metal box Dimensions | 302 x 140 x 70mm (11.8 x 5.5 x 2.7in) |
| Remote Control Dimensions | 131.25 x 46 x 13mm (5.1 x 1.8 x 0.5in) |

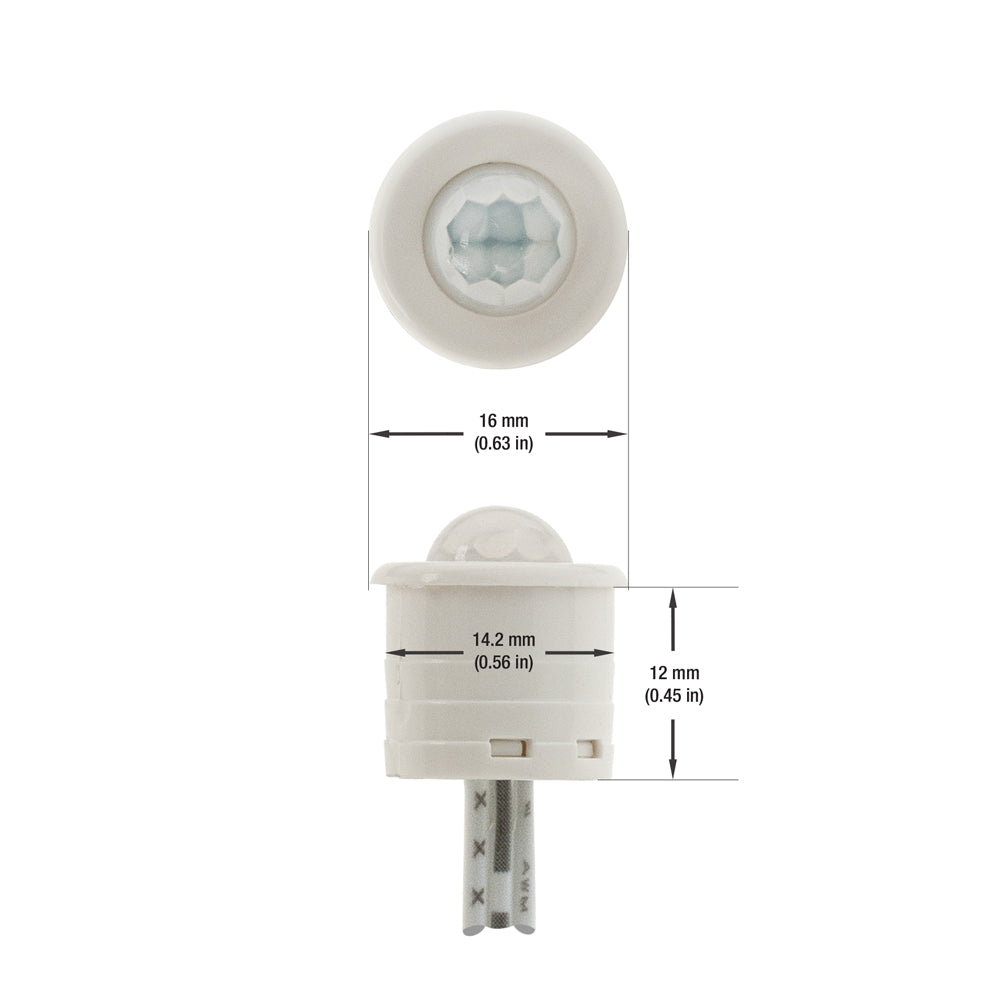

| PIR Sensor Dimensions | Outer Trim - Ø16mm (0.6in) Cut size - Ø14.2mm (0.5in) Depth - 12mm (0.47in) |
| Certification |  |
Features:
- Voltage Compatibility: Works with 12V-24V DC, suitable for various LED step lighting setups.
- Energy Efficiency: Each step consumes less than 15W, with a total capacity of up to 420W, saving energy.
- RF Remote Control: Utilizes RF remote technology for easy customization of lighting preferences.
- Durable Build: Made from sturdy plastic for long-lasting performance in various environments.
- Adjustable Settings: Offers adjustable brightness, delay time, and speed for creating the ideal lighting atmosphere.
- Dual PIR Motion Sensors: Automatically activates LED strips when motion is detected, enhancing safety and energy efficiency.
- Compact Design: Measuring 250 x 83 x 22mm, it seamlessly integrates into staircases for unobtrusive lighting control.
- Comprehensive Coverage: Includes two 600cm (19.6ft) PIR sensor wires for extensive motion detection.
